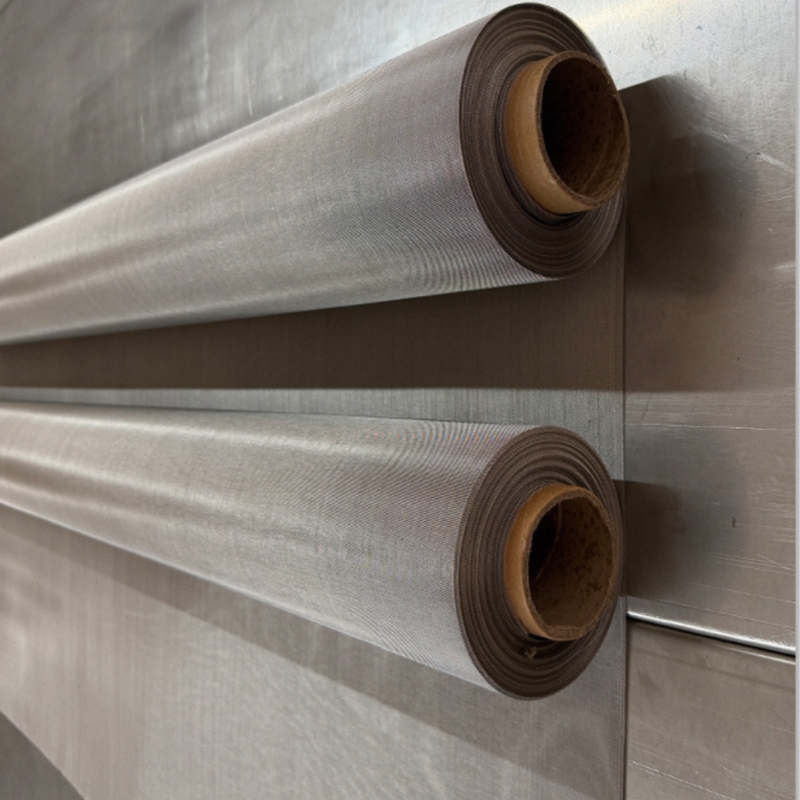

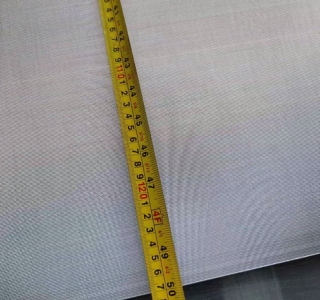

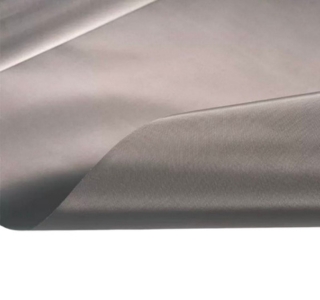

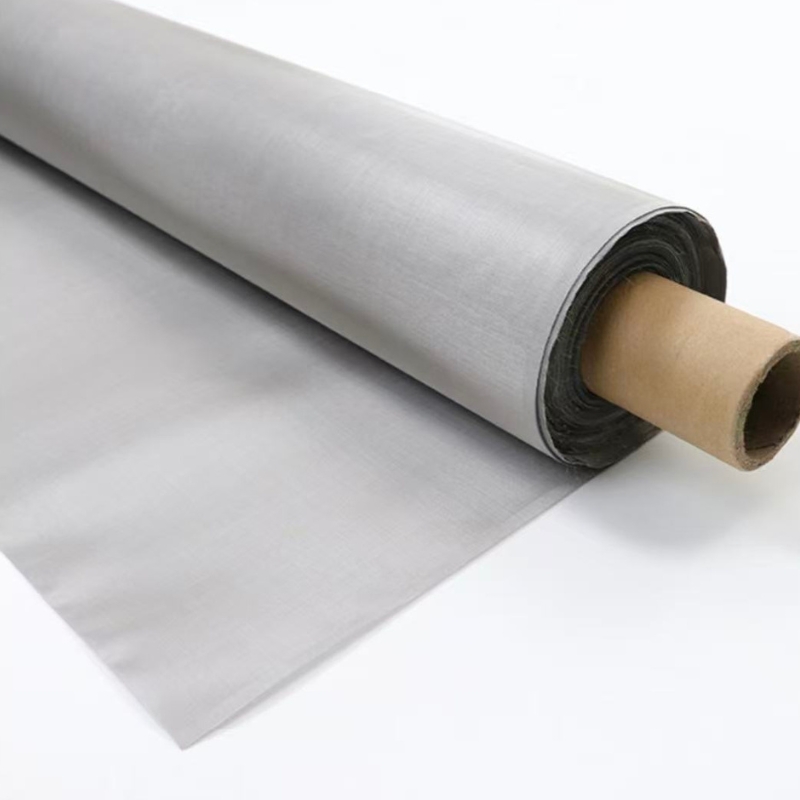

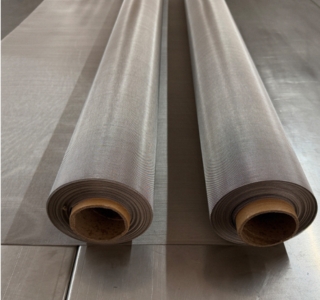

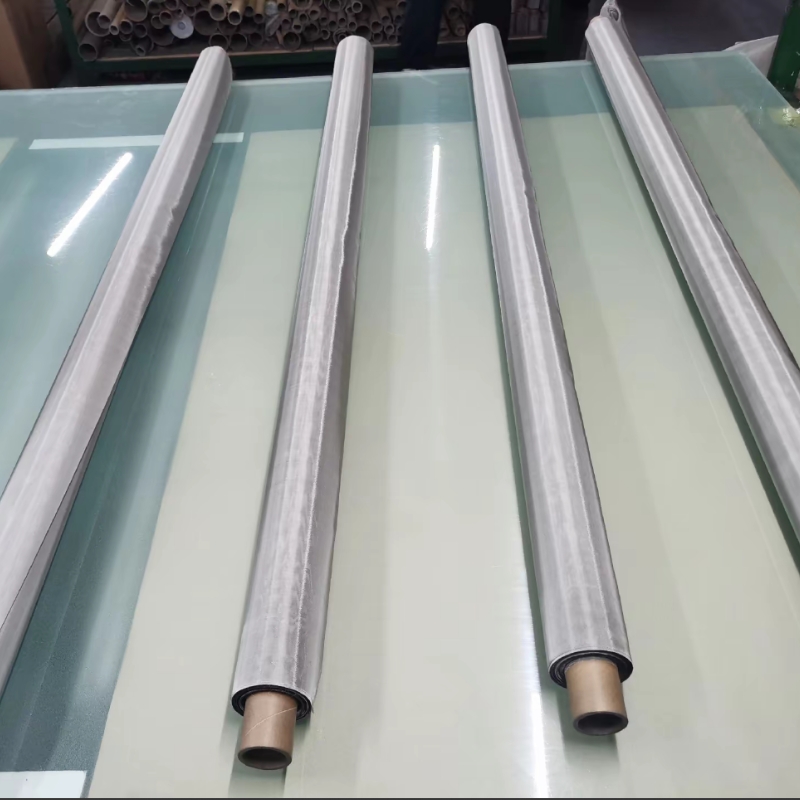

Stainless Steel Woven Wire Mesh

Stainless steel woven wire mesh is the preferred solution for precision filtration, screening, separation, and protection across a wide range of industrial applications. Manufactured from premium stainless steel alloys containing chromium, nickel, and other corrosion-resistant elements, it offers excellent mechanical strength, outstanding corrosion resistance, high-temperature performance, and long service life.

Also known as stainless steel wire mesh, stainless steel wire cloth, or stainless steel filter mesh, our woven mesh is available in a wide range of mesh counts, wire diameters, and aperture sizes. From coarse screening to ultra-fine10-micron filtration, every specification can be customized to meet your exact project requirements.

Whether for chemical processing, food production, pharmaceutical filtration, semiconductor manufacturing, or laboratory analysis, LantoMetal provides precision woven mesh solutions with consistent quality and reliable performance.

Why Choose LantoMetal Stainless Steel Woven Mesh?

· Excellent corrosion and oxidation resistance

· High tensile strength with dimensional stability

· Resistant to high temperatures and harsh environments

· Uniform mesh openings for accurate filtration

· Available from 1 mesh to 3500 mesh

· Aperture sizes down to 10 microns

· Multiple weave patterns for different filtration requirements

· Custom wire diameter, mesh count, width, and roll length

· Factory direct supply with OEM & ODM manufacturing

· Fast production and worldwide export service

Stainless Steel Woven Wire Mesh Grades

We manufacture woven wire mesh using a wide range of stainless steel materials, including:

· Stainless Steel 303

· Stainless Steel 304

· Stainless Steel 305

· Stainless Steel 310S

· Stainless Steel 316 / 316L

· Stainless Steel 317L

· Stainless Steel 321

· Stainless Steel 330

· Stainless Steel 333

· Stainless Steel 347

· Stainless Steel 430

· Stainless Steel 904L (N08904)

· Stainless Steel 254SMO (S31254)

· Stainless Steel 256Mo (N08926)

· Stainless Steel 654SMO (S32654)

· Stainless Steel AC-6XN (N08367)

Special stainless steel alloys are also available upon request for extreme corrosion resistance, high-temperature operation, or demanding chemical environments.

Weaving Production Process

Stainless steel woven mesh is produced by interweaving warp and weft wires into a stable and durable mesh structure.Advanced weaving equipment ensures excellent dimensional accuracy, consistent mesh openings, and reliable filtration performance.

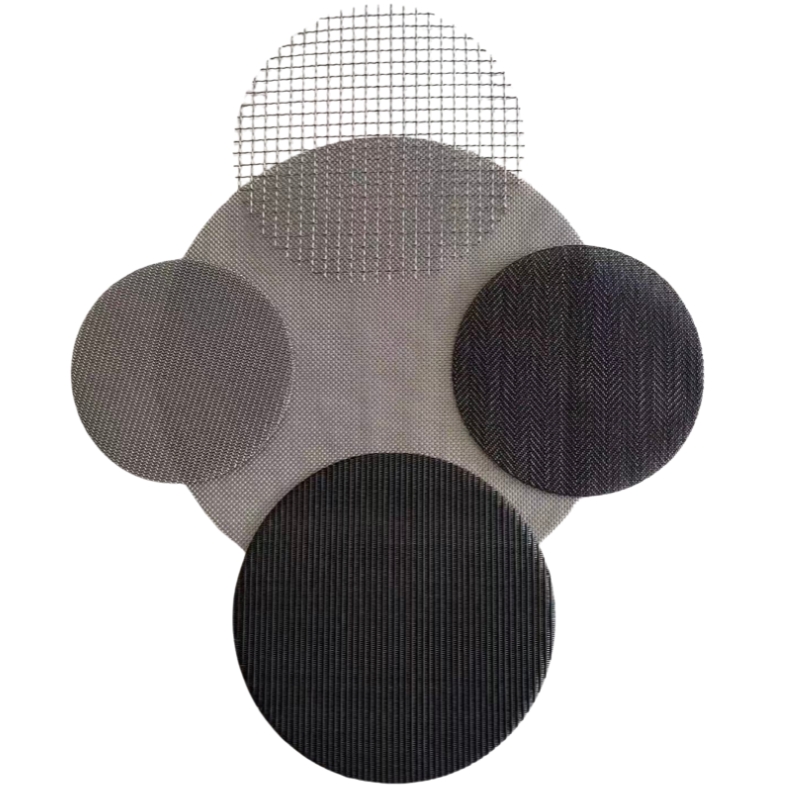

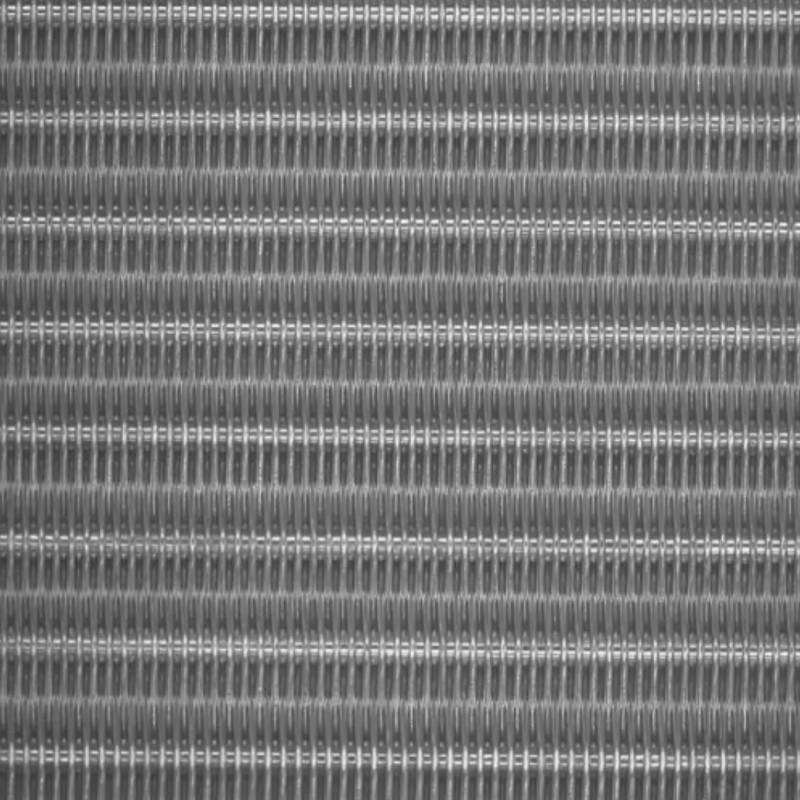

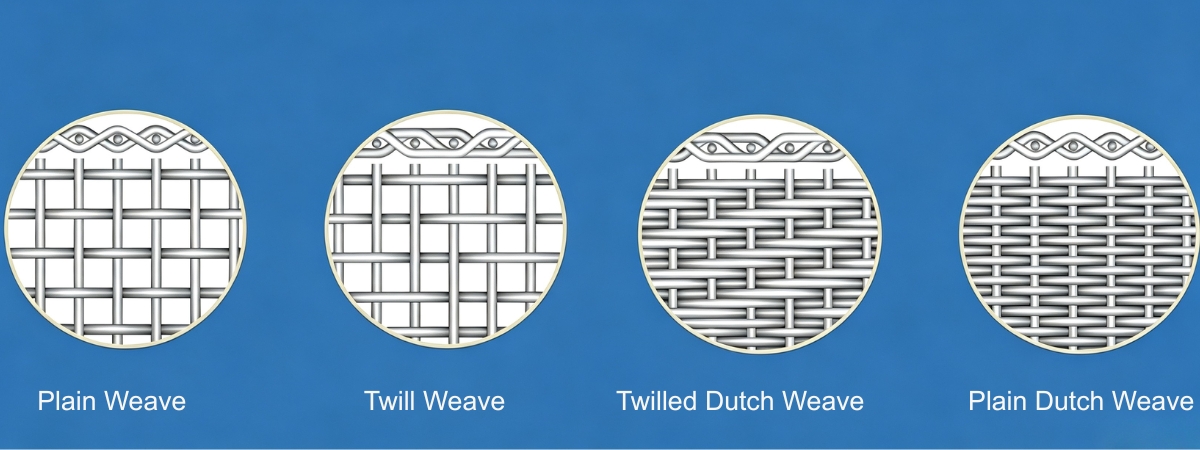

Four Main Weave Types

Plain Weave

Plain weave is the most common weaving method, with identical wire diameters and equal wire density in both warp and weft directions. It provides excellent dimensional stability, uniform openings, and high filtration accuracy.

Mainly used for wire mesh below 400 mesh.

Twill Weave

Twill weave allows thicker wires and higher mesh counts while maintaining excellent strength and flexibility. The diagonal weave pattern improves wear resistance and increases load capacity.

Mainly used for wire mesh above 400 mesh.

Plain Dutch Weave

Dutch weave utilizes finer weft wires and heavier warp wires to create extremely small openings for ultra-fine filtration. It is widely used where high filtration accuracy is essential.

Mainly applied to fluid filter mesh above 400 mesh.

Twilled Dutch Weave

Dutch Twill Weave combines the advantages of twill weave and Dutch weave, providing exceptional mechanical strength with extremely fine filtration capability.

Mainly applied to fluid filter mesh below 400 mesh.

Technical Specifications

Quality Testing Flow

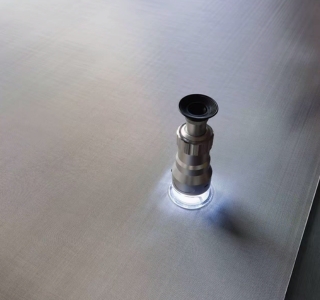

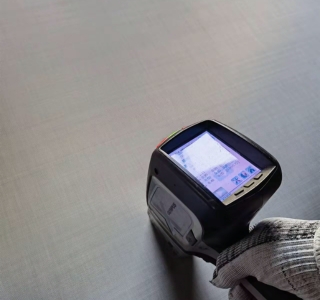

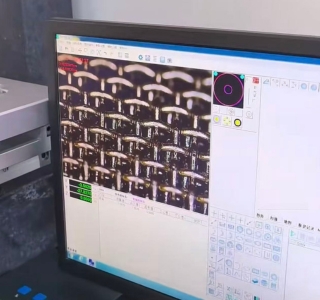

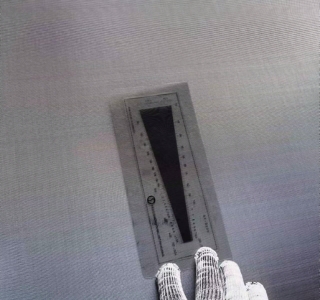

       Material Test Inspection             Mesh Size Test Inspection                  Mesh Test Inspection

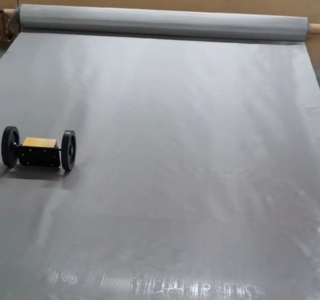

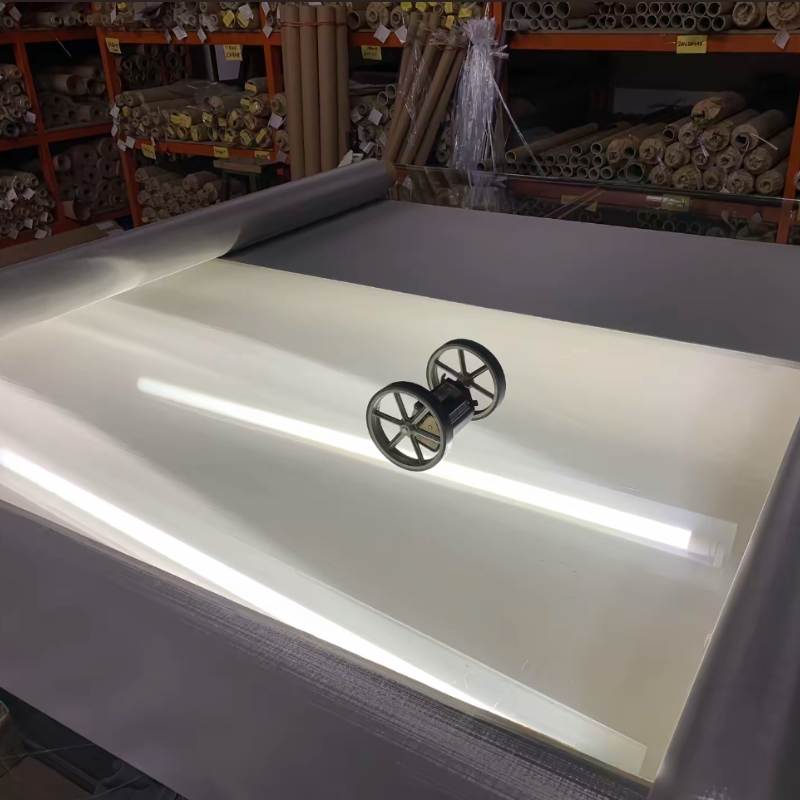

         Width Test Inspection                   Length Test Inspection                 Secondary Inspection Test

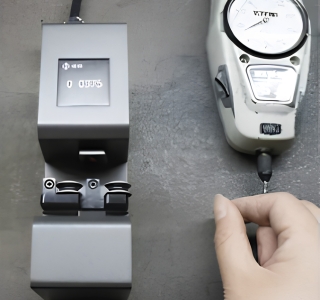

       Tensile Strength Test                     Neat edge , Tight roll            Flat, Smooth surface, Flexible bend

Advantages

· Superior corrosion resistance in acidic, alkaline, and marine environments

· High mechanical strength with excellent dimensional stability

· Outstanding wear resistance for long service life

· Precise micron filtration performance

· Excellent airflow and liquid permeability

· Wide selection of mesh counts and aperture sizes

· Custom manufacturing to customer drawings and specifications

· Suitable for both filtration and screening applications

Package & Delivery

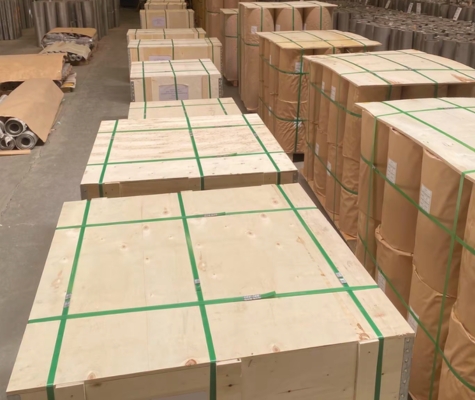

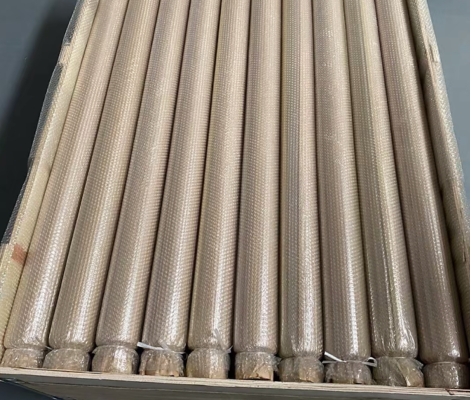

 Stainless Mesh Roll Waterproof Inner Wrapping        OEM Custom Stainless Mesh Export Pallet Packaging

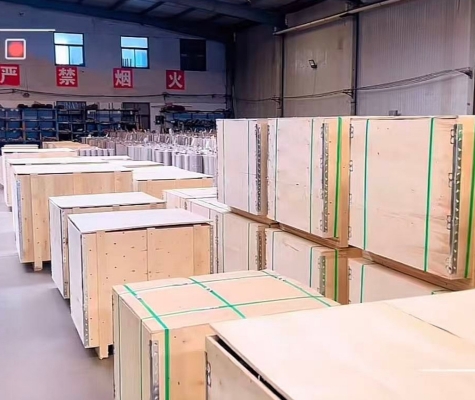

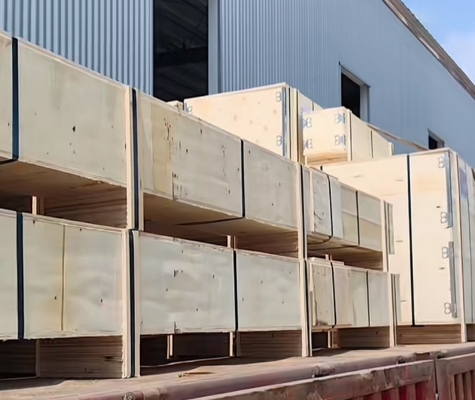

 Stainless Woven Wire Mesh Export Packaging       Wooden Case Export Pack Stainless Filter Mesh

Applications

Our stainless steel woven wire mesh is widely used in:

· Industrial filtration systems

· Chemical processing

· Petrochemical industry

· Oil & gas filtration

· Food and beverage processing

· Pharmaceutical manufacturing

· Water treatment

· Hydraulic filtration

· Plastic extrusion

· Paper and pulp industry

· Battery manufacturing

· Semiconductor production

· Aerospace engineering

· Medical devices

· Scientific laboratories

· Mining and mineral processing

· Catalyst support

· Precision screening and separation

Custom Width & Length

We offer flexible production capabilities to meet various project requirements.

Standard Width

· 0.914 m - 2.0 m

Custom Width

Available up to 6 meters for large-scale industrial applications.

Roll Length

· Standard: 30 m / 30.5 m

· Custom lengths available upon request

Factory & Production Workshop

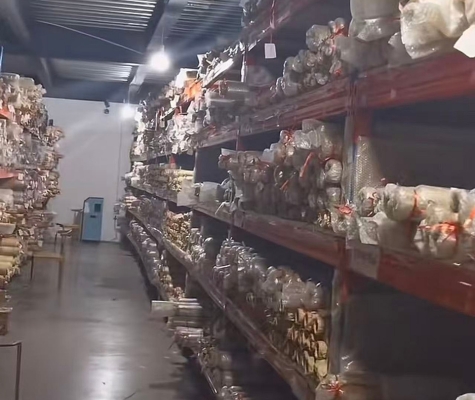

Stainless Woven Mesh Sample Room Display        Stainless Woven Mesh Sample Room Disc Display

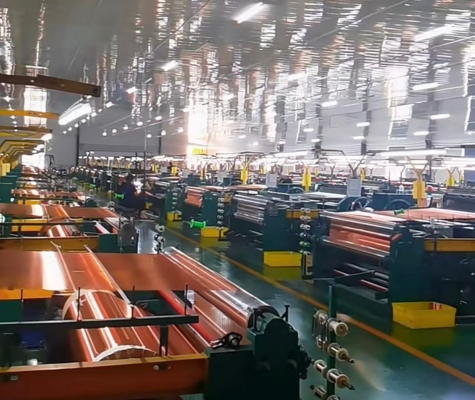

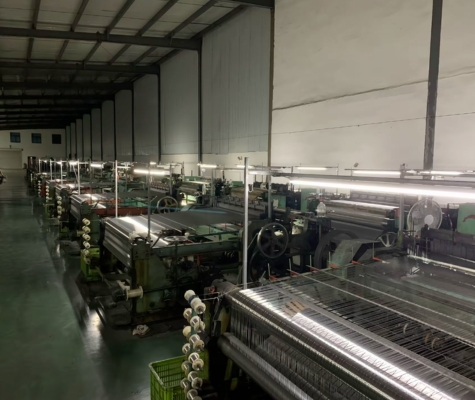

               Automatic Weaving Machine                     Stainless Wire Mesh Production Workshop Factory

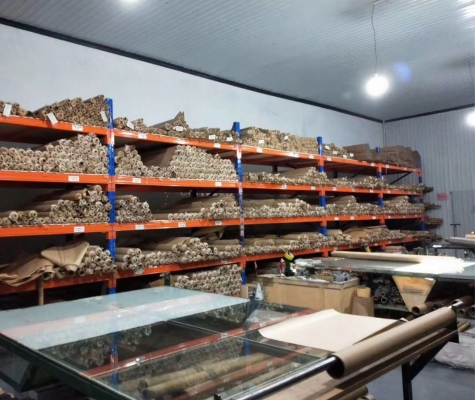

       Stainless Mesh Production Workshop

Quality Assurance

Every roll of stainless steel woven mesh undergoes strict quality inspection before shipment, including:

· Material verification

· Mesh count inspection

· Wire diameter measurement

· Aperture accuracy testing

· Surface quality inspection

· Packaging inspection

OEM labeling, custom packaging, and third-party inspection services are available.

Frequently Asked Questions (FAQ)

Q1: Can you customize wire diameter and micron filtration ratings?

Yes. We can customize mesh count, wire diameter, aperture size, roll width, and filtration accuracy according to your specifications.

Q2: Which weave type is best for ultra-fine filtration?

Dutch Weave is recommended for ultra-fine filtration because it provides extremely small openings and excellent particle retention. Dutch Twill Weave is ideal for demanding high-pressure filtration applications.

Q3: What is the finest mesh you can manufacture?

Our precision woven mesh can reach 4000 mesh with aperture sizes as small as 10 microns, ensuring exceptional filtration performance.

Q4: Can you produce widths over 2 meters?

Yes. Standard widths range from 0.914 m to 2 m, while custom widths up to 6 meters are available for bulk production.

Q5: Which stainless steel grades are available?

We supply 303, 304, 304L, 305, 310S, 316, 316L, 317L, 321, 330, 347, 430, 904L, 254SMO, 256Mo, 654SMO, AC-6XN, and other specialty alloys.

Q6: Do you provide OEM and custom manufacturing?

Yes. We provide OEM/ODM manufacturing, custom cutting, special specifications, customized packaging, and worldwide shipping for industrial and commercial projects.
