Perforated metal sheet is widely used in industrial, architectural, construction, filtration, ventilation, screening, and decorative applications. By changing the hole shape, hole size, pitch, arrangement, and open area, manufacturers can produce perforated metal sheets with different performance characteristics and visual effects.

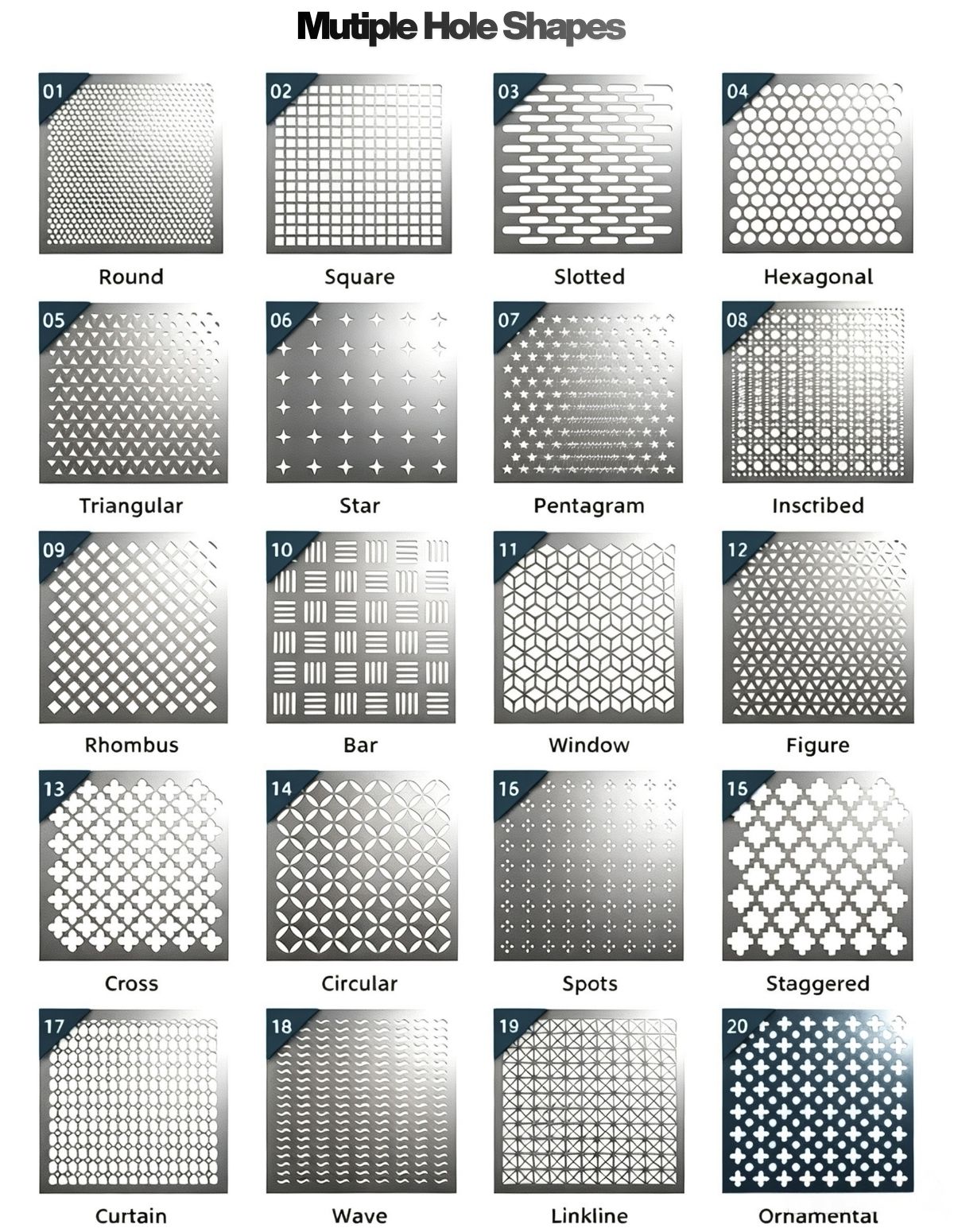

Common perforation patterns include round holes, square holes, slotted holes, hexagonal holes, triangular holes, diamond holes, and decorative custom patterns. The right pattern depends on the required airflow, strength, screening performance, visibility, acoustic performance, and appearance.
What Is Perforated Metal Sheet?
Perforated metal sheet is a metal sheet manufactured with regularly arranged openings using punching, stamping, or other precision processing methods. The holes can be produced in different shapes and arranged in straight or staggered patterns.
Common materials include stainless steel, carbon steel, galvanized steel, aluminum, copper, and brass. Hole size, pitch, sheet thickness, open area, sheet dimensions, and edge margins can also be customized according to project requirements.
For industrial and architectural applications, selecting the appropriate hole pattern is just as important as selecting the material and thickness.
1. Round Hole Perforated Metal Sheet
Round hole perforated sheet is one of the most commonly used types of perforated metal. It offers a simple appearance, good structural performance, and a wide range of open-area options.
Round holes can be arranged in different patterns, including:
● 60° staggered pattern
● 45° staggered pattern
● Straight-line pattern
● Custom arrangements
The 60° staggered pattern is particularly popular because it provides an efficient balance between open area and material strength.
Round perforated metal is commonly used for:
● Ventilation grilles
● Air intake panels
● Machine guards
● Filters and screens
● Acoustic panels
● Architectural facades
● Ceiling and wall panels
● Sunshade screens
The hole diameter and pitch can be adjusted to achieve the required open area and airflow.
2. Square Hole Perforated Metal Sheet
Square hole perforated sheet provides a clean and modern geometric appearance. The uniform openings are suitable for applications where a regular visual effect and controlled open area are required.
Square holes are generally arranged in straight or staggered patterns. Depending on the hole size and pitch, square perforated sheets can provide relatively high open areas while maintaining good panel rigidity.
Typical applications include:
● Machine guards
● Security screens
● Ventilation panels
● Architectural wall panels
● Ceiling systems
● Shelving and display panels
● Equipment enclosures
● Screening applications
Square perforated metal is especially suitable for projects where both functional performance and a modern appearance are important.
3. Slotted Perforated Metal Sheet
Slotted perforated sheet uses elongated openings instead of circular or square holes. The slots can have round ends or square ends and can be arranged in different directions.
Slot patterns can provide controlled airflow, visibility, light transmission, and screening performance.
Typical applications include:
● Grain and seed screening
● Mineral screening
● Drying equipment
● Filtration systems
● Ventilation panels
● Privacy screens
● Architectural facades
● Machine guards
For industrial screening, the slot length and width are particularly important because they determine the size of material that can pass through the opening.
4. Hexagonal Perforated Metal Sheet
Hexagonal perforated metal sheet features six-sided openings arranged in a honeycomb-style pattern. This pattern provides a distinctive appearance and can achieve a high open area.
Hexagonal perforations are often selected when a project requires high airflow or light transmission together with an attractive architectural appearance.
Common applications include:
● Building facades
● Decorative wall panels
● Ceiling panels
● Ventilation screens
● Speaker grilles
● Machine guards
● Architectural partitions
Honeycomb-style hexagonal perforation can achieve a very high open area depending on the hole dimensions and pitch. Some standard patterns can reach approximately 79% open area.
5. Triangular Hole Perforated Metal
Triangular perforated metal sheet provides a distinctive geometric appearance and can be used for both functional and decorative purposes.
Triangular holes are available in different sizes and arrangements, depending on the customer's design requirements.
Applications may include:
● Architectural decoration
● Interior wall panels
● Ceiling panels
● Decorative screens
● Equipment covers
● Ventilation panels
Triangular patterns are particularly useful when a conventional round or square pattern does not provide the desired visual effect.
6. Diamond Hole Perforated Metal
Diamond perforated metal sheet uses diamond-shaped openings to create a distinctive directional pattern.
The diamond pattern is often selected for architectural and decorative applications where the perforated surface is highly visible.
Typical applications include:
● Decorative wall panels
● Building facades
● Interior partitions
● Ceiling panels
● Decorative screens
● Equipment enclosures
Diamond patterns can also be combined with different sheet materials and surface finishes to create customized architectural effects.
7. Decorative and Custom Perforated Metal Patterns
In addition to standard hole shapes, modern perforation technology allows manufacturers to produce custom decorative perforated metal sheets.
Custom patterns can include:
● Star-shaped holes
● Flower patterns
● Cloverleaf patterns
● Honeycomb designs
● Geometric patterns
● Logos
● Text
● Custom CAD patterns
● Combination patterns
These designs are especially popular in architectural projects because perforated metal can function as both a technical material and a decorative element.
Custom perforation is commonly used for building facades, privacy screens, interior partitions, ceiling panels, retail displays, signage, and decorative wall cladding.
Straight vs. Staggered Hole Patterns
The hole shape is only one part of perforated metal design. The hole arrangement also has a significant influence on the final performance of the sheet.
The most common arrangements include:
Straight Pattern
Holes are arranged in aligned rows and columns.
This pattern provides a clean, organized appearance and is often used for architectural panels, guards, covers, and decorative applications.
Staggered Pattern
Holes in adjacent rows are offset from each other.
Staggered patterns can provide efficient material utilization and a higher open area for certain hole geometries.
For round holes, 60° staggered arrangements are widely used in industrial perforated metal applications.
How to Choose the Right Perforated Metal Hole Pattern?
When selecting perforated metal sheet, buyers should consider more than the appearance of the holes.
1. Application
Determine whether the sheet will be used for:
● Filtration
● Screening
● Ventilation
● Acoustic control
● Architectural decoration
● Machine protection
● Privacy screening
● Sunshade systems
2. Hole Shape
Choose the hole shape according to the required performance and appearance.
Round holes: versatile and widely used
Square holes: clean geometric appearance
Slotted holes: suitable for screening and controlled openings
Hexagonal holes: high open area and distinctive appearance
Decorative holes: suitable for architectural and design projects
3. Open Area
Open area determines how much air, light, sound, or material can pass through the sheet.
Hole size and pitch should therefore be considered together rather than selecting the hole diameter alone.
4. Material and Thickness
Different applications require different materials.
Common options include:
● Stainless steel 304 / 316 / 316L
● Carbon steel
● Galvanized steel
● Aluminum
● Copper
● Brass
Material selection should take into account corrosion resistance, strength, weight, temperature, outdoor exposure, and finishing requirements.
5. Surface Finish
Depending on the material and application, perforated metal sheets can be supplied with different finishes, including:
● Mill finish
● Galvanized finish
● Powder coating
● Anodizing
● Polishing
● Brushing
These finishes can improve corrosion resistance while also providing different architectural appearances.
Custom Perforated Metal Sheet from LantoMetal
At LantoMetal, we supply customized perforated metal sheets for industrial, construction, architectural, and commercial applications.
Our perforated metal solutions can be customized according to:
● Hole shape
● Hole diameter or size
● Hole pitch
● Hole arrangement
● Open area
● Sheet thickness
● Sheet dimensions
● Material
● Surface finish
● Edge margins
● Custom drawings or CAD designs
Whether you need round hole perforated sheet, square perforated sheet, slotted perforated metal, hexagonal perforated sheet, or a custom decorative pattern, we can manufacture perforated metal products according to your specifications.
For B2B projects, customers can provide drawings, samples, hole dimensions, material requirements, or application details. Our team can then recommend a suitable perforation pattern and production specification.
Conclusion
Perforated metal sheet is not simply a metal sheet with holes. The combination of hole shape, hole size, pitch, arrangement, open area, material, and thickness determines its final performance.
From standard round, square, slotted, and hexagonal holes to customized decorative patterns, perforated metal provides flexible solutions for filtration, screening, ventilation, acoustic control, architectural decoration, and industrial protection.
Choosing the right perforation pattern at the beginning of a project can help achieve the desired balance between strength, open area, airflow, screening performance, appearance, and cost.
