Double Wire Fence
868/656 Double Wire Mesh Fence I Twin-Wire Fence
Twin Wire Mesh Fencing, widely known as 2D double wire fence, 656 wire fence or 868 wire fence, is a premium welded wire security fence constructed with double horizontal twin wires firmly welded onto single vertical steel wires. The naming rule “868” and “656” stands for wire diameter configuration:
· 868 2D Fence: Horizontal wires 2×8mm, vertical wire φ6.0mm (8mm horizontal + 6mm vertical + 8mm horizontal)
· 656 2D Fence: Horizontal wires 2×6mm, vertical wire φ5.0mm (6mm horizontal + 5mm vertical + 6mm horizontal)
Made of high tensile carbon steel, the unique double horizontal twin wire ridge structure delivers outstanding rigidity and impact resistance compared to ordinary single wire mesh fence. Vertical wires are ultra strong so panels cannot be folded or bent easily. Equipped with galvanized, polyester powder or PVC coated surface finish, our 2D twin wire fence boasts excellent anti-rust & anti-corrosion performance for long-term outdoor service, extremely popular across European markets.

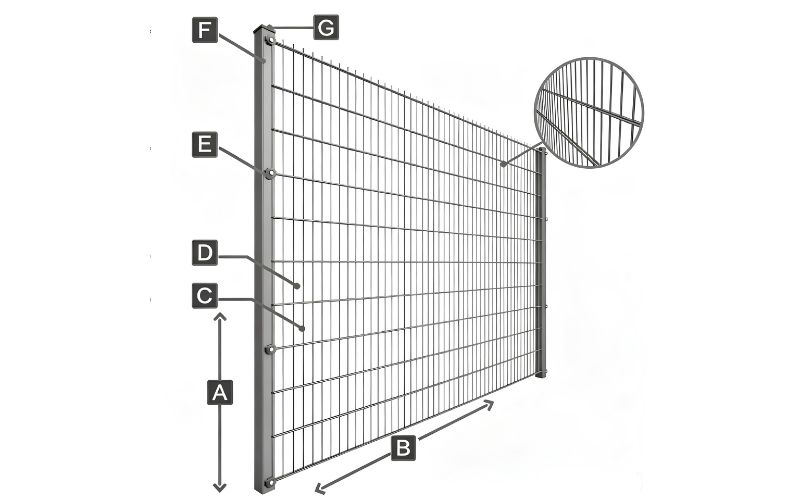

SPECIFICATION
A:Height:630 mm, 830 mm, 1030 mm, 1230 mm, 1430 mm, 1530 mm, 1630 mm, 1730 mm, 1830 mm, 1930 mm, 2030 mm, 2230 mm, 2430 mm
B:Width:
2000 mm, 2500 mm, 3000 mm
C:Wire Diameter:6/5/6 mm, 8/6/8 mm
D:Mesh Opening:
50 × 100 mm, 50 × 150 mm, 50 × 200 mm, mm, 55 × 200 mm, 75 × 100 mm

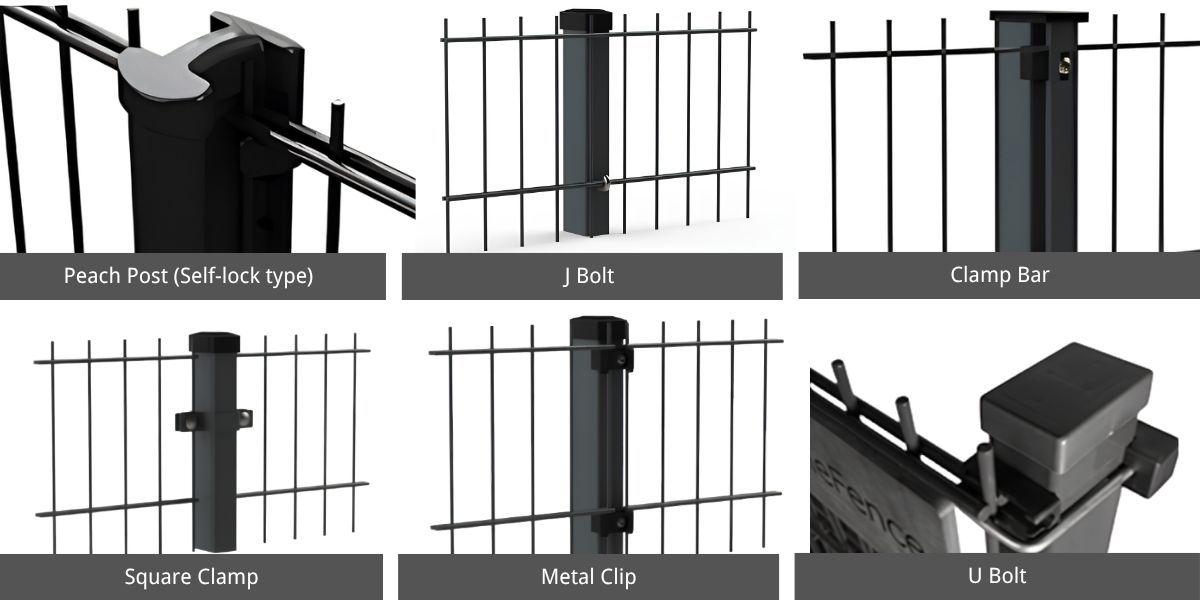

E:Connection
A: Peach Post (Self-lock type)
B: J Bolt
C: Clamp Bar
D: Square Clamp
E: Metal Clip
F:U Bolt
F:Post:
Round post (48 OD × 1.5/2.0 mm, 60 OD × 1.5/2.0 mm);
Square post (50 × 50 × 1.5/2.0 mm, 60 × 60 × 1.5/2.0 mm, 80 × 80 × 1.5/2.0 mm);
Rectangular post (40 × 60 × 1.5/2.0 mm, 40 × 80 × 1.5/2.0 mm, 60 × 80 × 1.5/2.0 mm, 80 × 100 × 1.5/2.0 mm)
G:Post Cap:
metal cap / anti-UV plastic cap

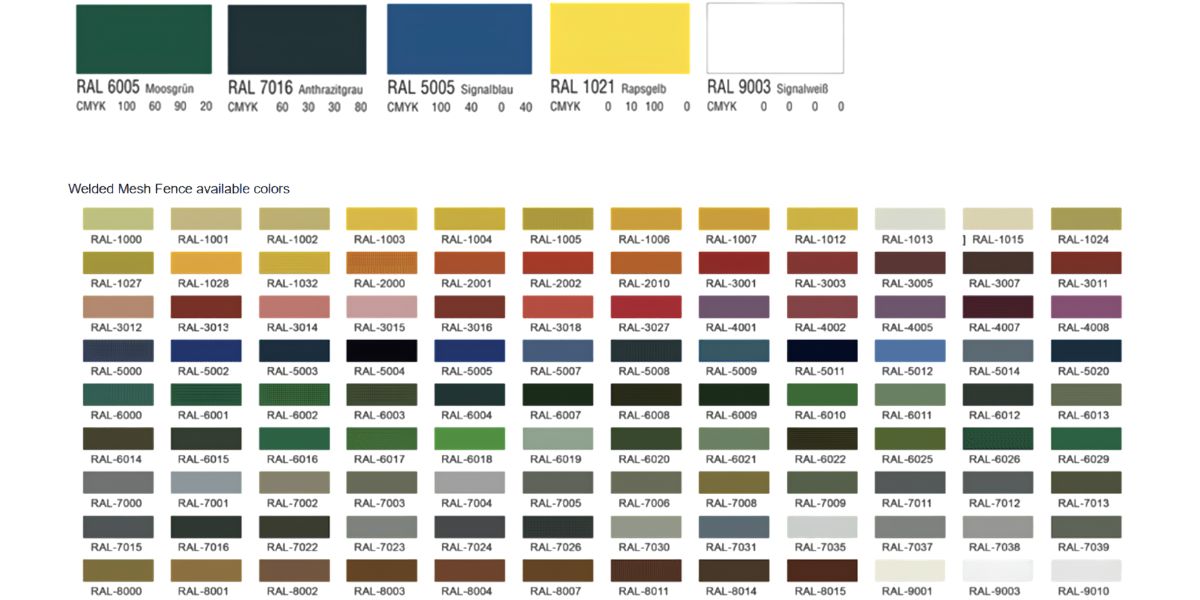

COLORS AVAILABLE
All standard RAL colors are in stock; special custom shades from full RAL color card can be produced upon buyer’s request. Popular options: RAL6005 green, RAL9005 black, RAL7035 grey.
Surface Treatment(Anti-Rust Treatment):
A: Electric Galvanized(8-12g/m²) + Polyester Powder Coated (All colors in Ral)
B: Electric Galvanized(8-12g/m²) + PVC Coated
C: Hot Dipped galvanized(40-60g/m²) + Polyester Powder Coated (All colors in Ral)
D: Hot Dipped galvanized(40-60g/m²) + PVC Coated
E: Hot Dipped Galvanized after welding (505g/m²)
F: Galfan(200g/m²) + Polyester Powder Coated (All colors in Ral)
G: Galfan(200g/m²) + PVC Coated
NOTE:
Be manufactured using galvanized steel wire.
Be coated with exclusive Architectural Grade Powder Coat.
This coating is super-durable and environmentally sound. Our powder coating provides the industry's Highest Weather ability and Gloss Retention in U.V. Exposure.
We adopt architectural-grade eco-friendly powder coatings with industry-leading UV resistance, weather durability and gloss retention. Under long-term outdoor sunlight exposure, its service lifespan is 3 times longer than ordinary standard powder coating from competitors.
FEATURES
Two top designs optional: flat-top & arch-top twin wire fence
Twin horizontal wires firmly welded to vertical wires, rigid non-foldable structure against bending
30mm vertical barbs mountable on panel top/bottom for extra anti-climb safety
Large mesh openings ensure good visibility and reliable security
Galvanized or powder-coated surface, superior rust & corrosion resistance for harsh environments
Multiple fitting connectors: square clamps, metal clips, stainless steel clamps, clamp bars, J/U bolts, self-locking peach post connectors

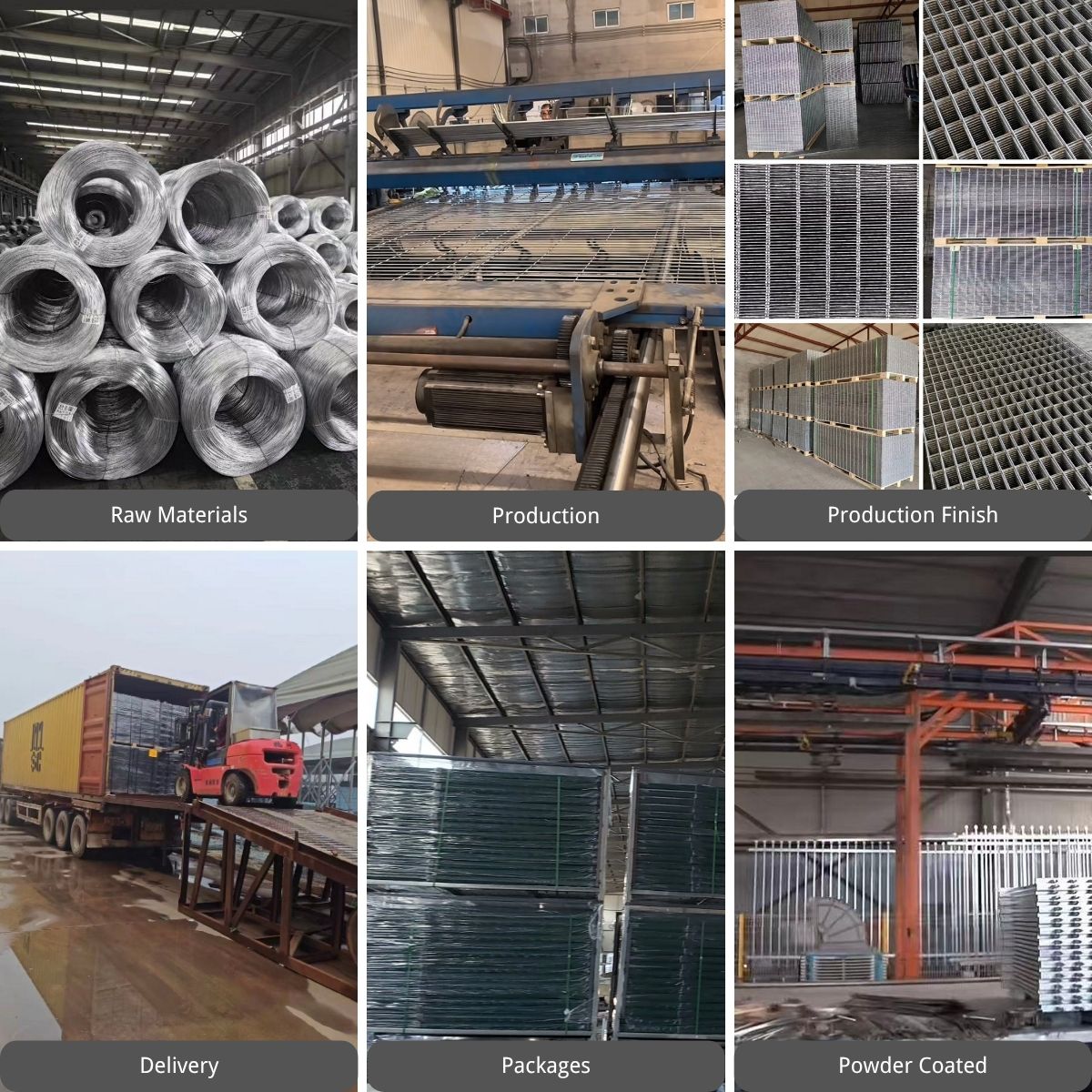

PRODUCTION FLOW CHART
Raw materials: High tensile carbon steel wire rolls
Steel wire straightening & cutting to customized length
Automatic precise mesh welding for twin wire panels
Surface anti-rust treatment: galvanizing /hot dip galvanizing
Final finishing: Polyester powder coating or PVC coating
Inspection & finished 2D double wire fence storage
ADVANTAGES
Super Rigid & Impact Resistant
Dual horizontal twin wires form a reinforced ridge mesh structure, all welding joints are solid to withstand heavy pressure, vandalism and violent impact. Panels stay intact without deformation under long-term use.
High Longevity & Anti-Corrosion
Multi-layer professional coating system effectively blocks rust, UV ray, salt spray and chemical erosion. Galvanized + polyester powder coated version can serve properly for nearly 10 years with minimal maintenance.
Clear High Visibility with Reliable Security
Standard 200×50mm mesh opening balances transparent sightline and anti-climb performance, perfect for CCTV monitoring without blind spots.
Complete Matching System for Fast Installation
Full set supporting components including mesh panels, multi-type posts, anti-theft clamps, post caps and matching gates. Unified accessory system cuts installation time and labor cost significantly.
Cost-Effective Custom Solution
Competitive factory wholesale price while retaining premium quality, rigidity and durability. Custom height, width, mesh size, top style, coating and RAL color are all acceptable on request.
Low Maintenance Design
Double twin wire structure prevents easy damage; smooth coated surface resists graffiti, sand abrasion and dirt buildup, only simple regular cleaning required.

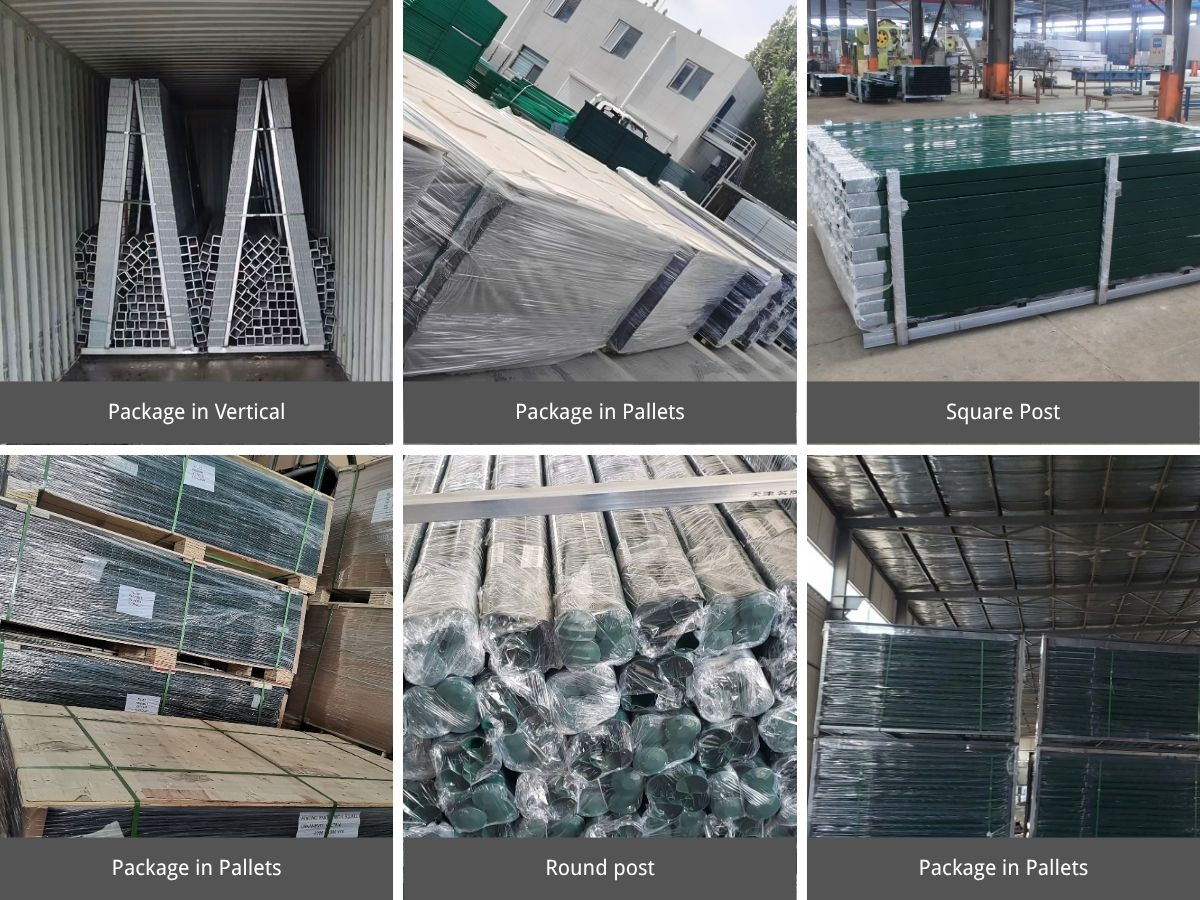

PACKAGE&DELIVERY
Panels packed on export standard wooden pallets to avoid deformation during transit.
All metal clamps, bolts, post caps and accessories packed separately.

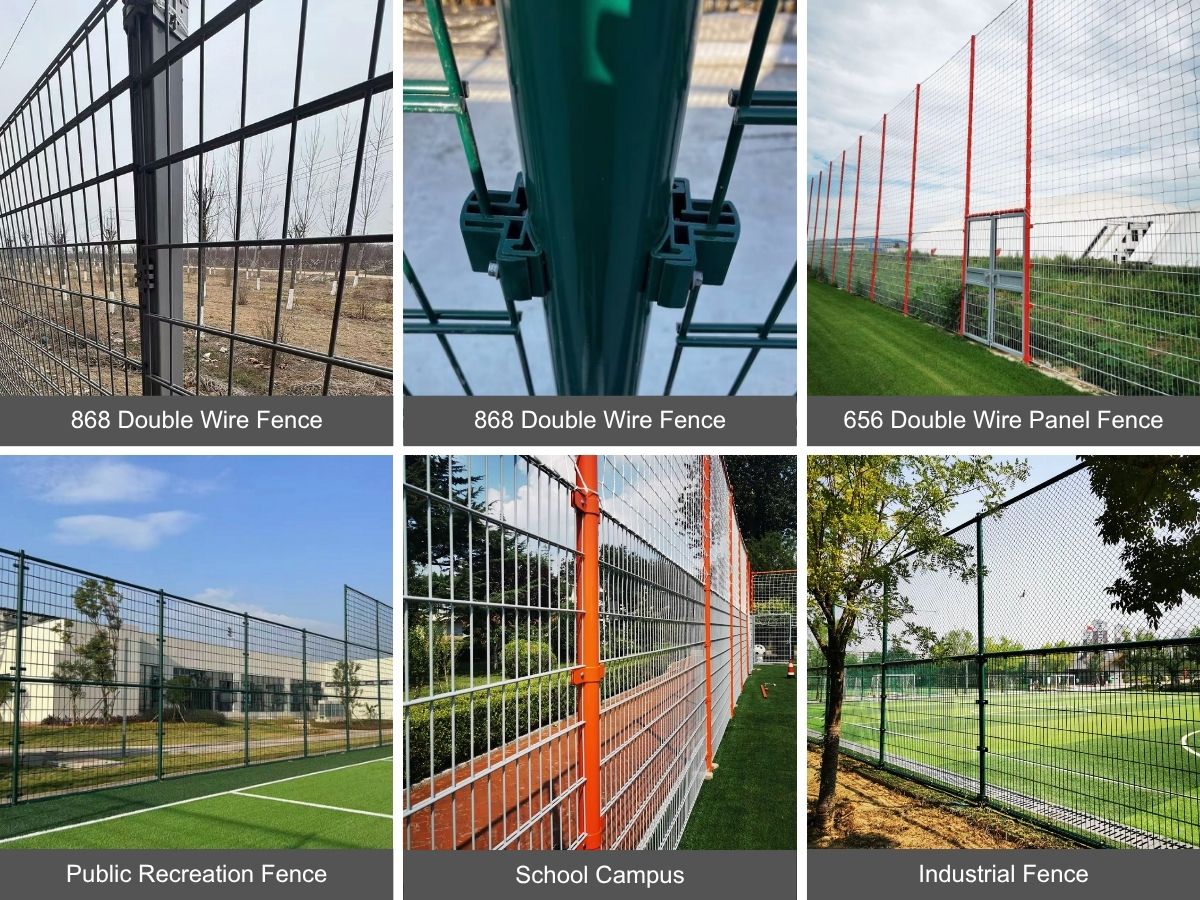

APPLICATION FOR TWIN WIRE 2D DOUBLE WIRE FENCE
Our 868 & 656 twin wire mesh security fence is widely adopted for residential, commercial, municipal and industrial perimeter protection across Europe and global markets
Public recreation: Playground, sports centre, football field, park, garden, zoo animal enclosure
Education & community: School campus, residential community boundary, villa garden isolation
Industrial & infrastructure: Factory compound, warehouse yard, logistics park, highway isolation fence
Medium security sites: Municipal facilities, small military sub-base, port storage zone
Why Choose Our Factory as Your Twin Wire Mesh Fence Supplier
1. Full in-house production line for 868 / 656 2D double wire fence, direct factory price without middleman markup
2. Strict raw material inspection + welding strength test + coating thickness test before shipment
3. Flexible customization: mesh size, panel dimension, top shape, coating, color and security accessories
4. Multiple anti-corrosion coating options matching coastal, industrial, urban and inland environments
5. Complete matching accessory system, one-stop purchase for fence panels, posts, clamps and gates
6. Stable MOQ and fast lead time for bulk project orders, professional export service for global contractors & distributors
7. Free technical drawing & specification data sheet support for your tender and project design
FAQ About 868 & 656 Twin Wire 2D Double Wire Fence
Q1: What do 868 and 656 mean for twin wire fence?
A: The three numbers represent wire diameter layout. 868 = two horizontal 8mm twin wires + single vertical 6mm wire; 656 = two horizontal 6mm twin wires + single vertical 5mm wire.
Q2: What’s the difference between flat top and arch top double wire fence?
A: Flat top is simple, cost-saving for general isolation; arch top delivers more elegant outlook, more widely used for park, garden and residential projects.
Q3: Which coating should I choose for coastal area?
A: Hot dipped galvanized base plus polyester powder coating is recommended, the 80μm thick zinc layer can resist long-term salt spray corrosion.
Q4: Can I install razor wire on top of twin wire fence panels?
A: Yes, we supply matching Y-type razor wire arms compatible with all our square / rectangular / peach posts.
Q5: How long is the service life of powder coated 2D twin wire fence?
A: Standard galvanized + polyester powder coated panels can work well for nearly 10 years under normal outdoor environment; hot dipped galvanized version extends service life by extra 5-8 years.
Q6: Is custom size available for special project requirements?
A: Yes, we accept non-standard height, width and mesh aperture customization according to buyer’s construction drawings.
