Curvy Welded Fence

3D curved welded wire mesh fence, also known as V-mesh fence or 3D security fence, is a heavy-duty medium-security perimeter fencing solution widely used for industrial, residential and public outdoor safety isolation.

Different from standard flat mesh fences, it features unique longitudinal V-shaped bends that greatly boost structural rigidity and stability, balancing elegant appearance and solid protective performance.

Made of premium Q235 low-carbon steel wire, the fence adopts full welding at every wire intersection for a sturdy integrated structure. The quantity of V-shaped curves is customized based on fence height for optimized structural performance. To ensure outstanding corrosion resistance and long lifespan, the mesh undergoes dual surface treatment: hot-dip galvanizing plus electrostatic polyester powder coating. Fence panels are easily and firmly mounted on posts with matching clamps for stable installation.

Engineered for outdoor use, this 3D curved fence delivers stable performance in diverse harsh environments. The reinforced V-profile and integral welded structure effectively withstands bad weather and external impacts, avoiding deformation or displacement during long-term service. Its open mesh design provides clear sightlines, offering defined perimeter protection without visual blockage.

Featuring simple structure, fast installation, attractive outlook, high permeability and cost-effectiveness, this economical steel fence is a top choice for global buyers. It is widely applied for safety isolation and perimeter protection in railways, airports, schools, factories, residential communities, gardens, parks and stadiums.

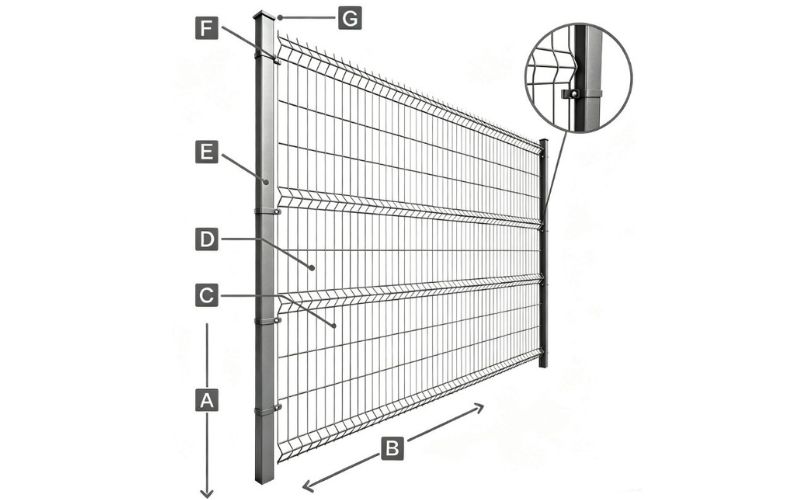

SPECIFICATION

A:Height:

630 mm, 830 mm, 1030 mm, 1230 mm, 1430 mm, 1530 mm, 1630 mm, 1730 mm, 1830 mm, 1930 mm, 2030 mm, 2230 mm, 2430 mm

B:Width:2000 mm, 2500 mm, 2900 mm

C:Wire Diameter:

3.0 mm, 3.5 mm, 4.0 mm, 4.5 mm, 5.0 mm

D:Mesh Opening:

50 × 100 mm, 50 × 150 mm, 50 × 200 mm, 75 × 100 mm, etc.

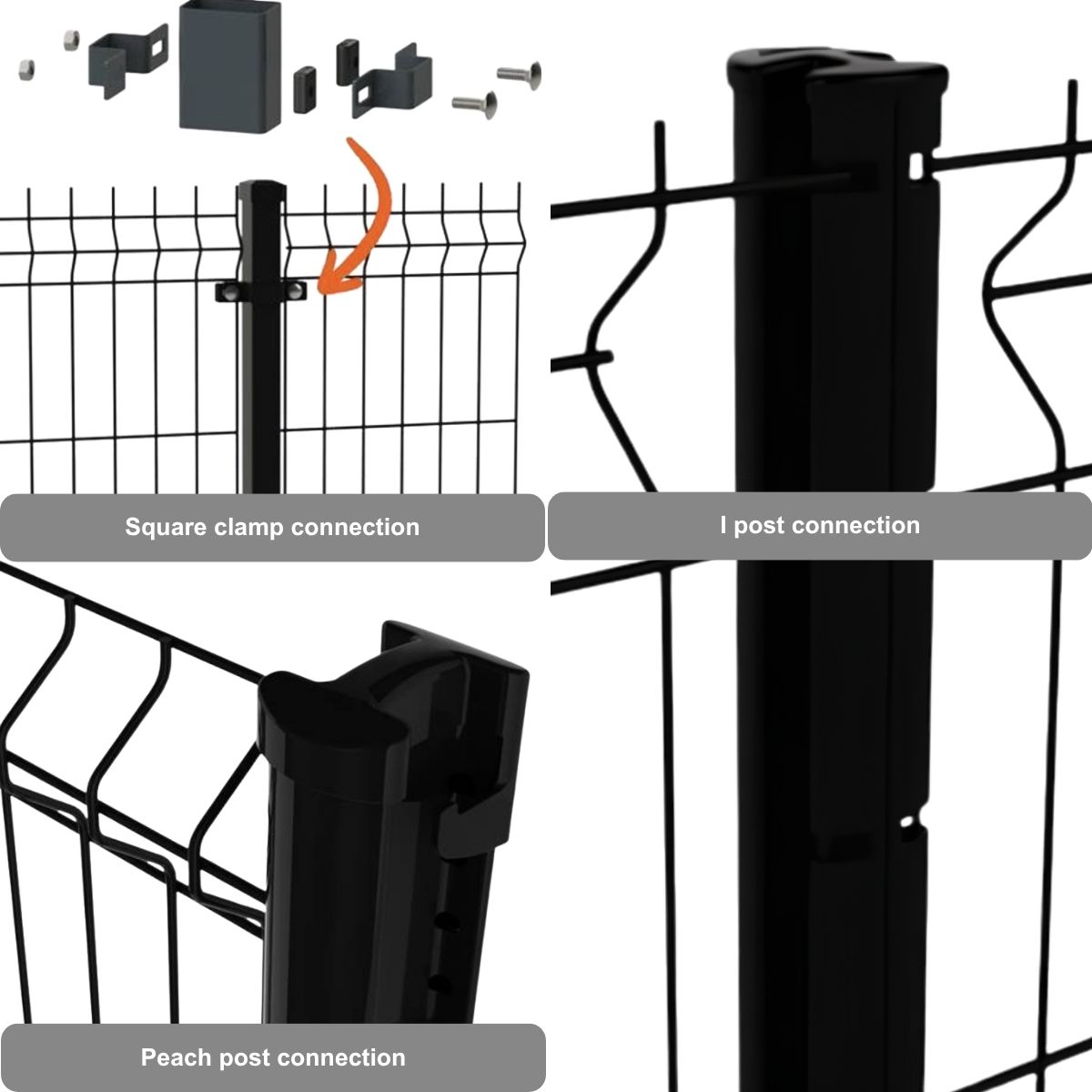

F:Clamp:metal clamp / anti-UV plastic clamp / no clamp (for peach post)

E:Post:

Round post (48 OD × 1.5/2.0 mm, 60 OD × 1.5/2.0 mm);

Square post (50 × 50 × 1.5/2.0 mm, 60 × 60 × 1.5/2.0 mm, 80 × 80 × 1.5/2.0 mm);

Rectangular post (40 × 60 × 1.5/2.0 mm, 40 × 80 × 1.5/2.0 mm, 60 × 80 × 1.5/2.0 mm, 80 × 100 × 1.5/2.0 mm);

"I " post (70*44mm,Double Quantity Clamps);

 Peach post (50*70mm & 70*100mm ,Self-lock Type);

G:Post Cap:metal cap/anti-UV plastic cap

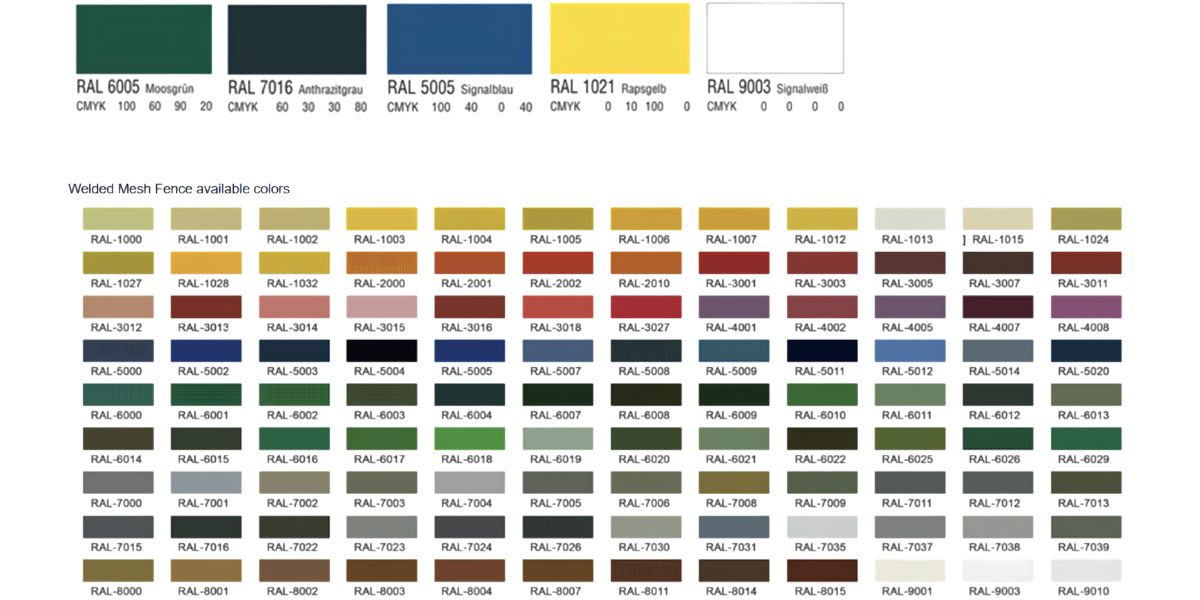

COLORS AVAILABLE

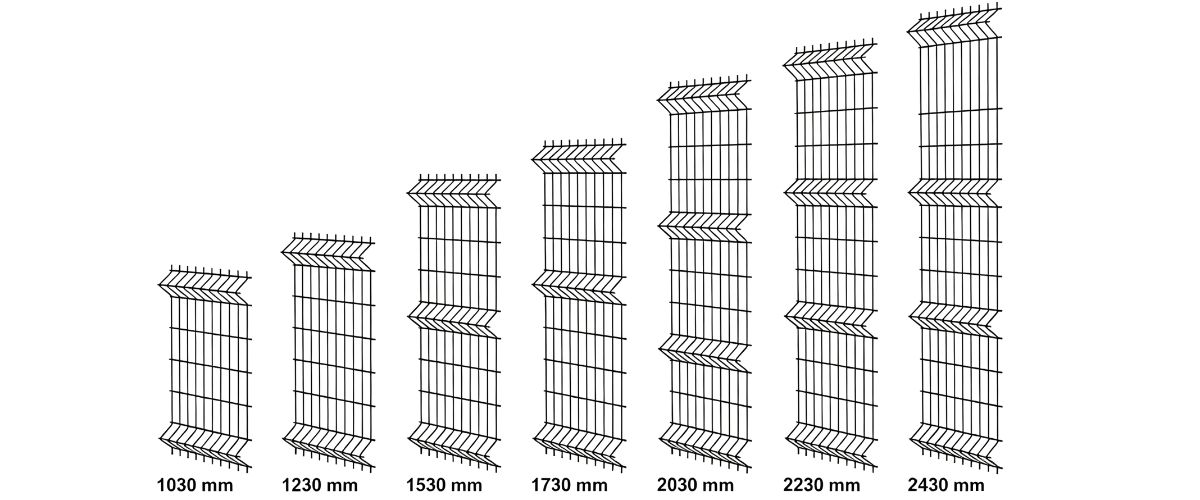

THE FENCE HEIGHT AND THE NUMBER OF FOLDS

SURFACE TREATMENT(ANTI-RUST TREATMENT):

1. Electric Galvanized(8-12g/m²) + Polyester Powder Coated (All colors in Ral)

2. Electric Galvanized(8-12g/m²) + PVC Coated

3. Hot Dipped galvanized(40-60g/m²) + Polyester Powder Coated (All colors in Ral)

4. Hot Dipped galvanized(40-60g/m²) + PVC Coated

5. Hot Dipped Galvanized after welding (505g/m²)

6. Galfan(200g/m²) + Polyester Powder Coated (All colors in Ral)

7. Galfan(200g/m²) + PVC Coated

Made of galvanized steel wire with exclusive architectural-grade powder coating.

Ultra-durable and eco-friendly, featuring top-tier UV & weather resistance and long-lasting gloss—its service life is 3x longer than competitors’ coatings.

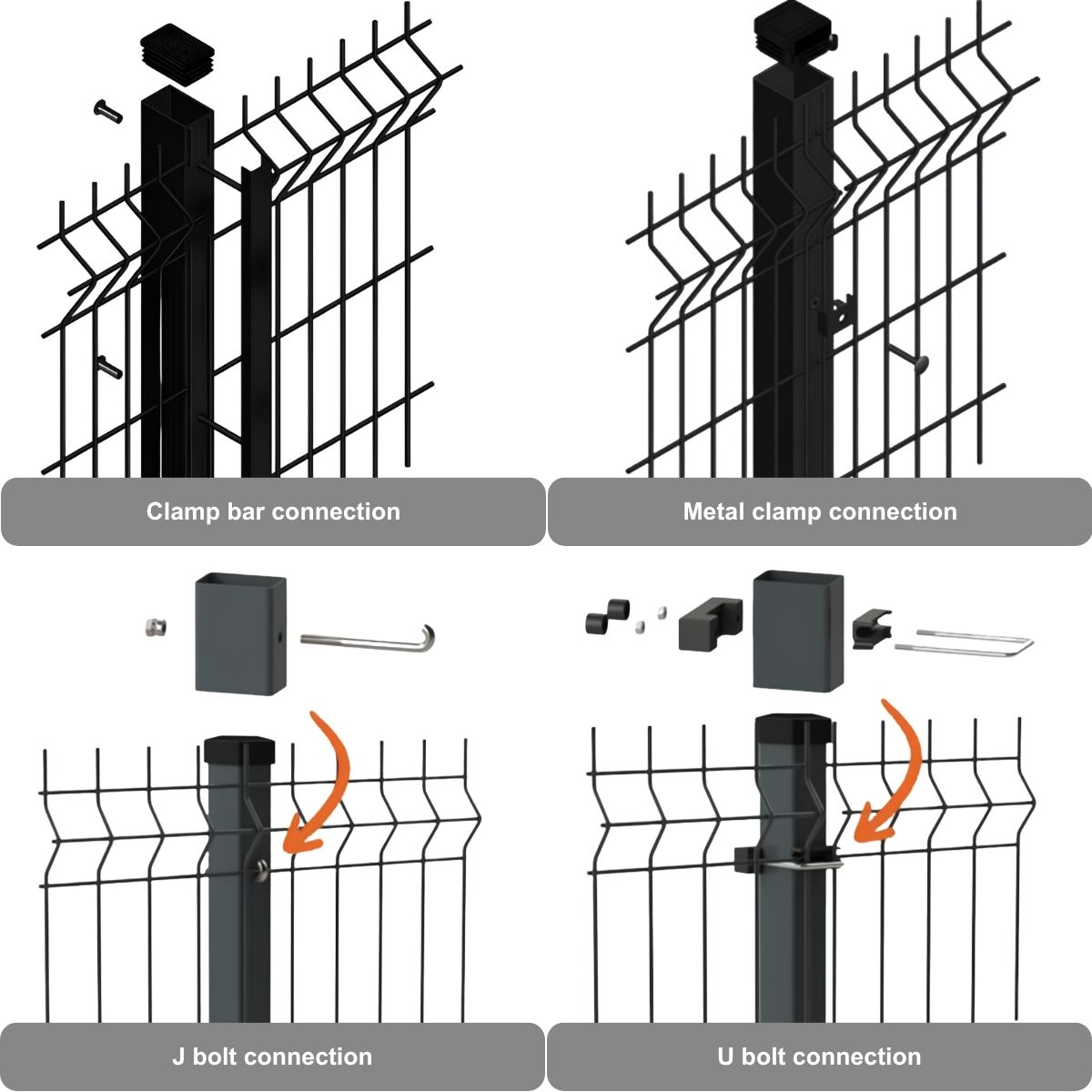

COMPONENTS&ACCESSORIES

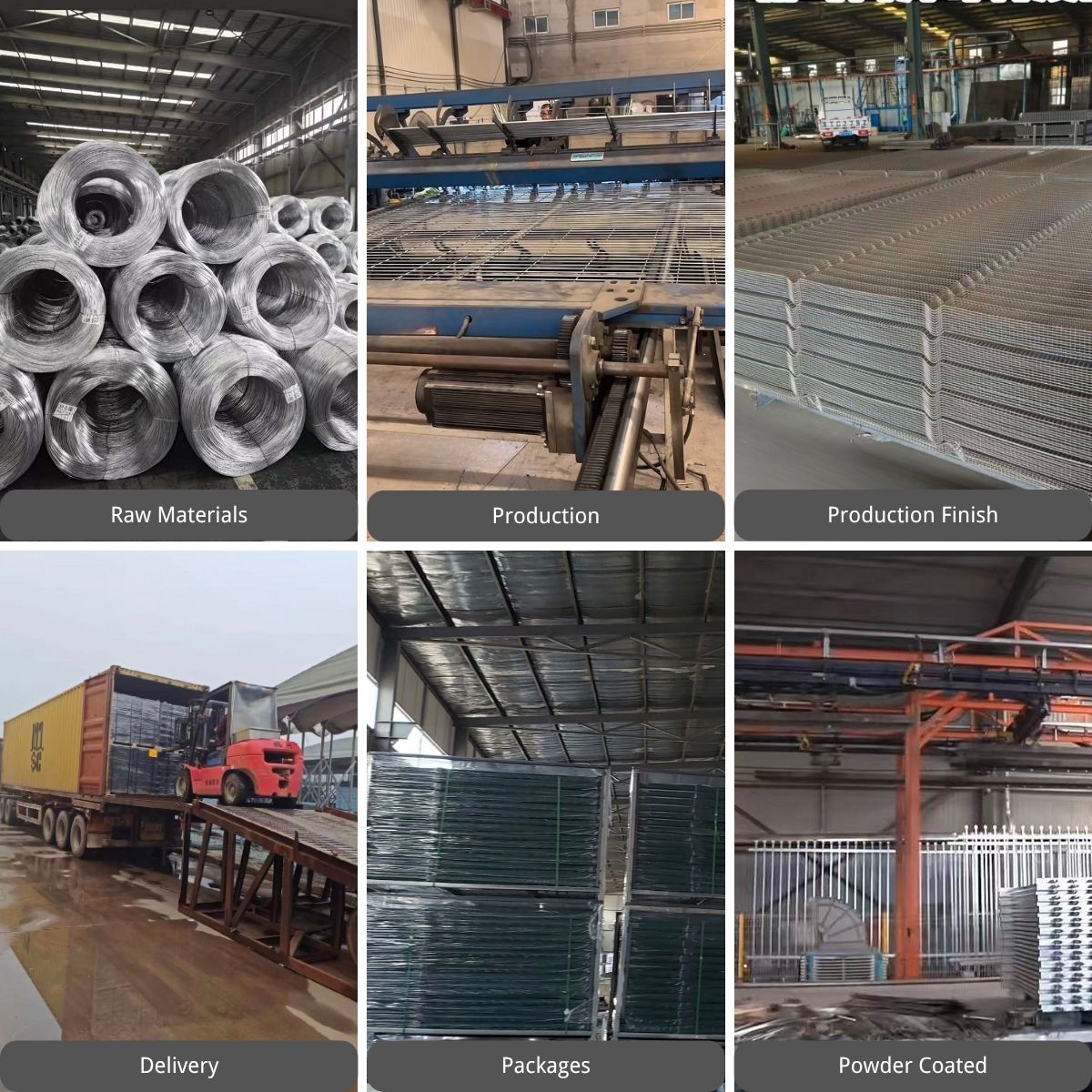

PRODUCTION FLOW CHART

FEATURE

· Three-Dimensional Design: The fencing panels are designed with a three-dimensional structure, which not only enhances the aesthetic appeal but also provides additional strength and rigidity.

· Superior Coating: To ensure resistance to rust and corrosion, Our exclusive Powder Coating guarantees a long service life for this fence system.  This coating is applied over galvanized wires and tubes to ensure total protection of panels, posts and gates.

· Security: The sturdy construction and design of the fence make it a reliable security barrier, deterring unauthorized access and providing an added layer of protection.

· Ease of Installation: Our products are often designed for easy installation, reducing the time and effort required for setting up the fencing system.

· Customization: Depending on the specific requirements of a project, 3-D fencing may be available in different heights, colors, and mesh sizes, allowing for customization according to individual needs.

· Enhanced rigidity through V-shaped profiles

· Clear visibility along the perimeter

· Reliable performance in outdoor environments

· Suitable for long fencing runs and varied layouts

· Compatibility with mesh posts and fixing systems

· Green, Grey, many colors available

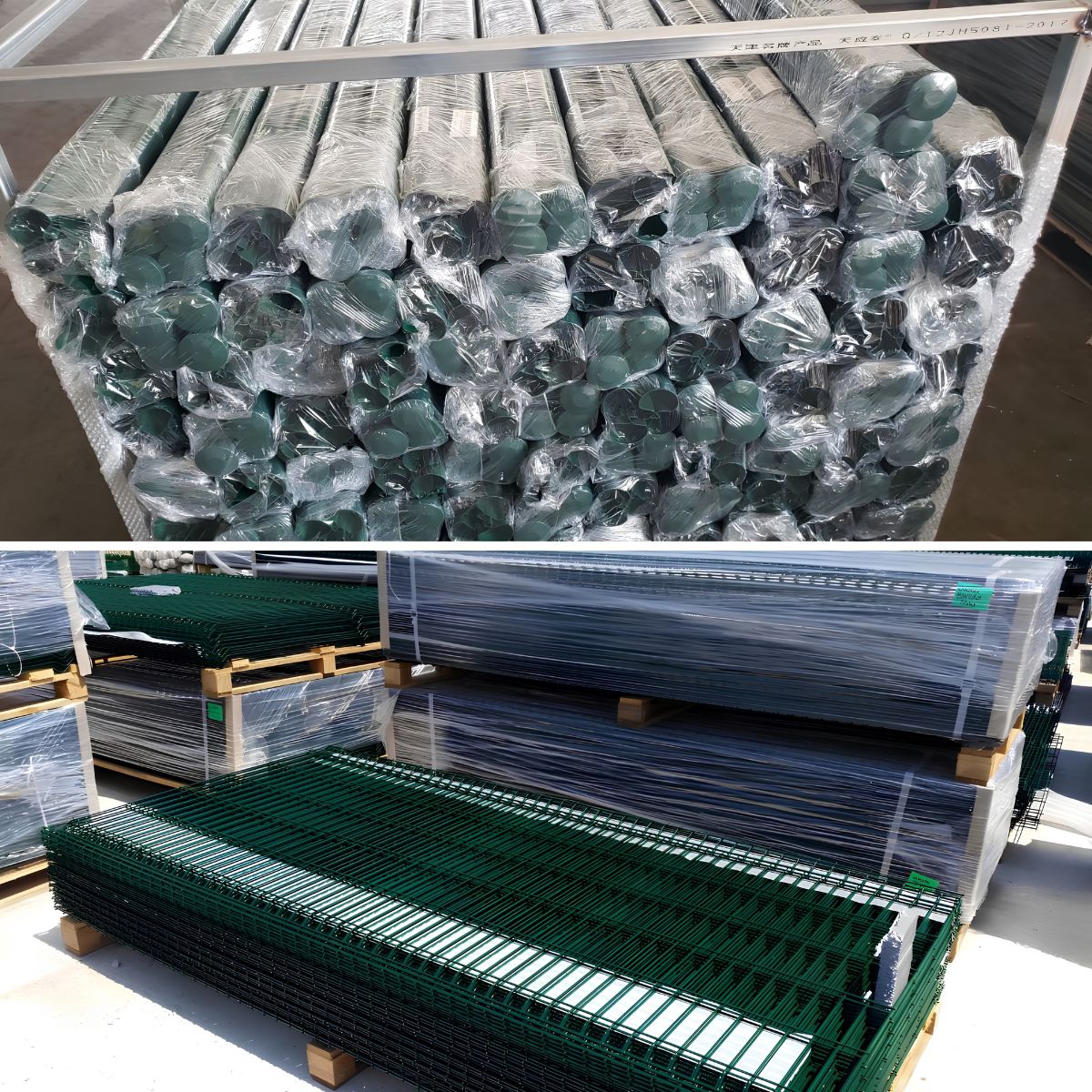

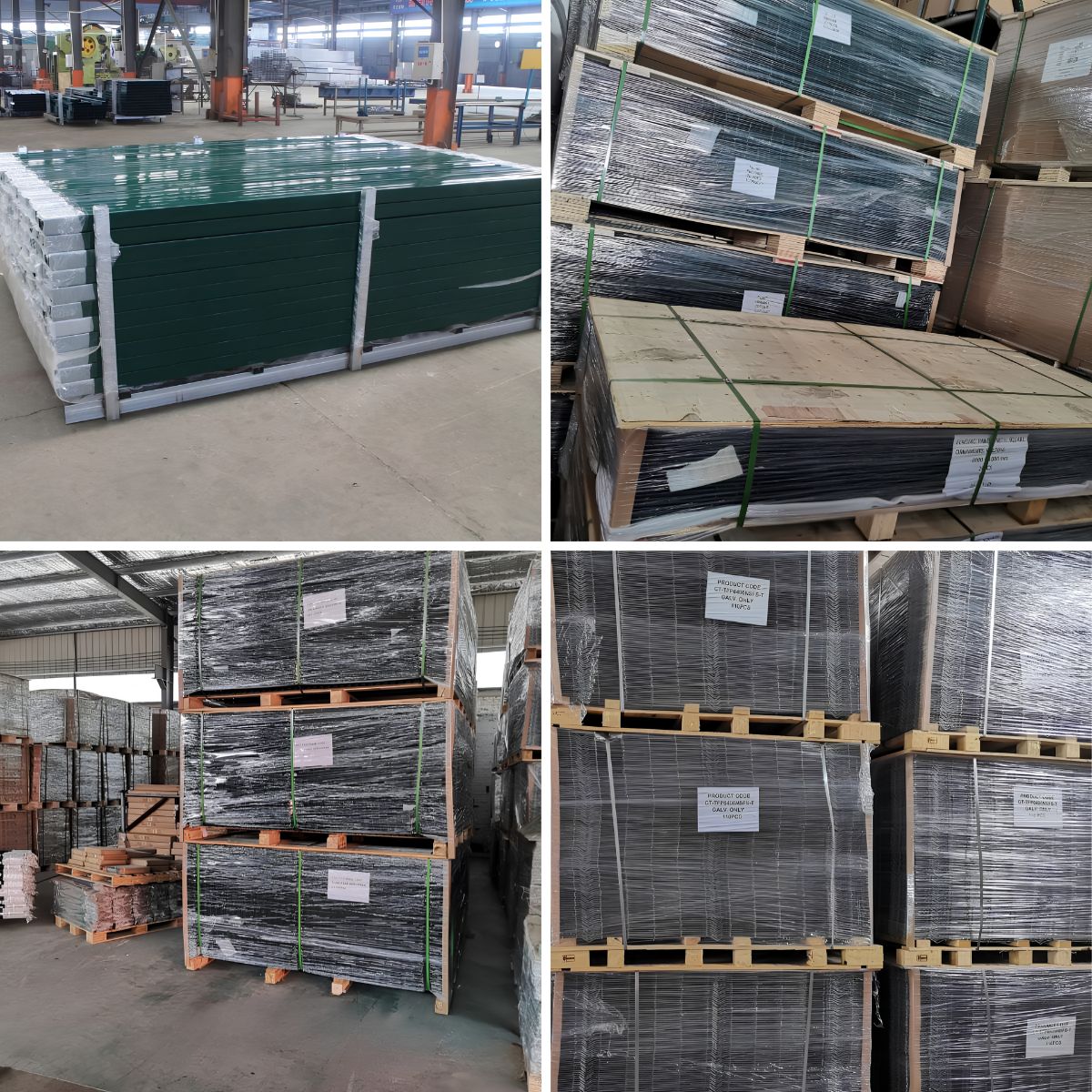

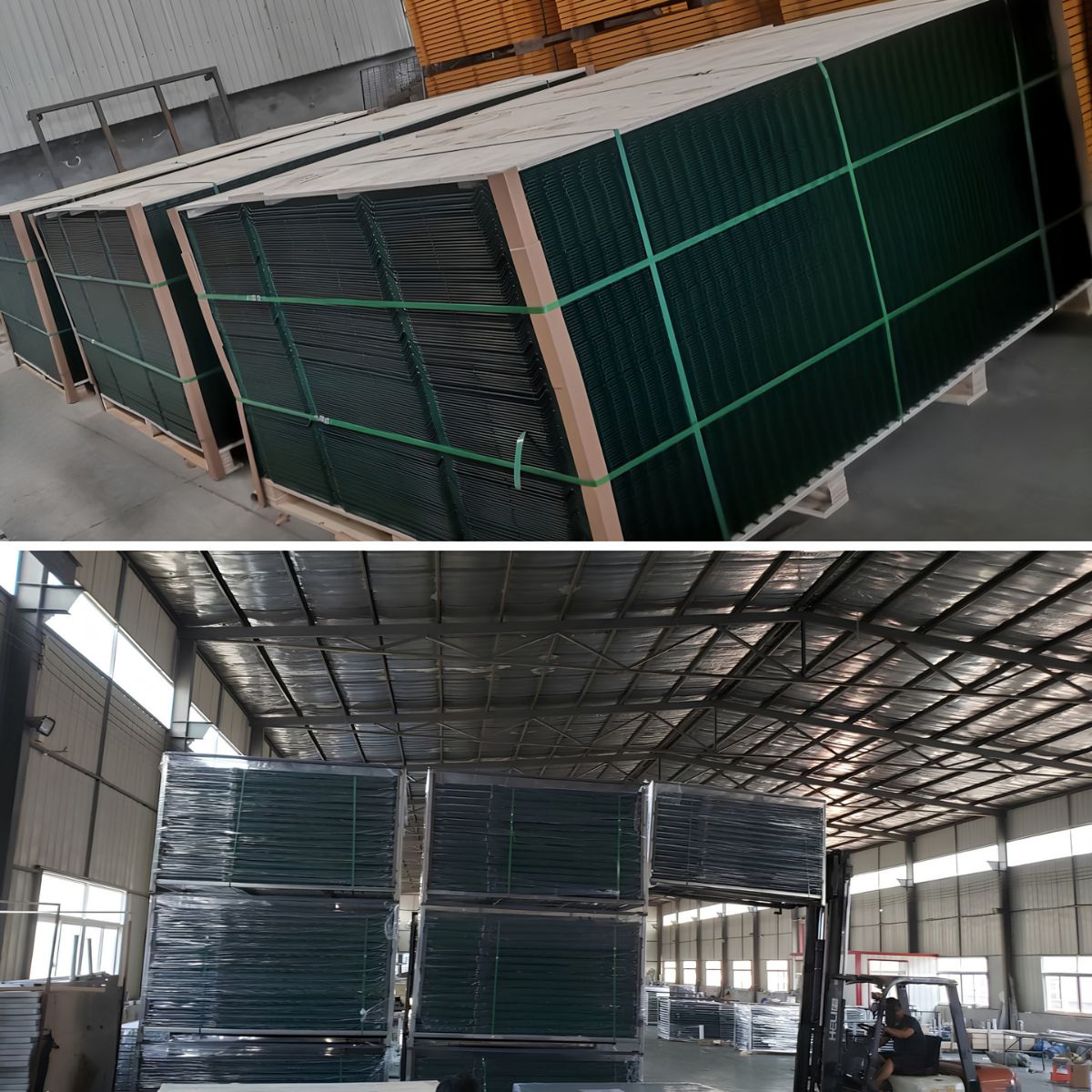

PACKAGE & DELIVERY

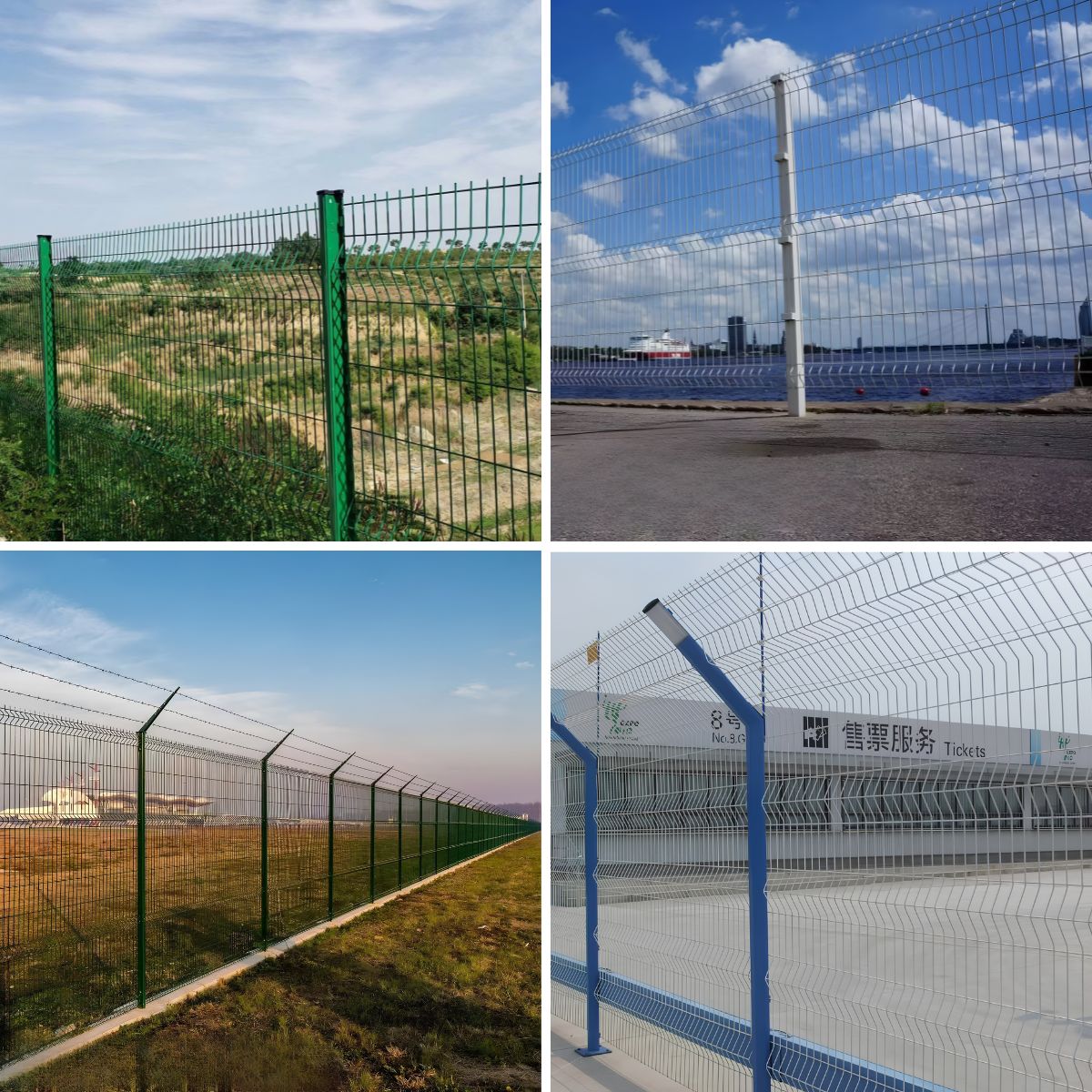

GALLERY

Frequently Asked Questions (FAQ)：V Mesh Fencing / 3D Fence Panels

Q: What are the primary advantages of your 3D V-Mesh Fencing systems for commercial projects?

A: Our 3D V-Mesh Fencing is engineered for high-performance security. The V-shaped reinforcement profiles provide significantly higher rigidity and impact resistance compared to standard flat mesh. Beyond security, they offer excellent visibility for CCTV monitoring and a clean, professional aesthetic that integrates well into industrial, public, and private infrastructure.

Q: How do your products perform in terms of long-term durability and corrosion resistance?

A: Quality is our priority. Our panels are manufactured from high-tensile, low-carbon steel wire. We employ advanced hot-dip galvanizing and high-grade polyester powder coating processes. This dual-layer protection ensures superior resistance to rust, UV radiation, and harsh weather conditions, guaranteeing a long service life with minimal maintenance for your end-users.

Q: What are your capabilities regarding bulk orders and custom specifications?

A: We specialize in B2B supply and large-scale project fulfillment. We can customize panel heights (from 830mm to 2030mm), wire diameters, and mesh apertures to meet specific project requirements. We also offer various RAL color powder coatings to align with your project’s branding. Please contact our sales team with your specifications for a tailored manufacturing proposal.

Q: Does the fencing system come as a complete solution?

A: Yes, we provide a "turnkey" fencing solution. Our systems include the 3D fence panels, compatible metal posts (square, peach, or round), and all necessary fixings (clips, bolts, and anti-tamper security screws). We ensure that every component is engineered to work together for a seamless and rapid installation on-site.

Q: What is your typical lead time and shipping process for international orders?

A: For standard items, our production lead time is typically 15–25 days depending on order volume. We have extensive experience in international logistics and export compliance. We provide professional loading services to maximize container space and minimize freight costs. Whether you require CIF, FOB, or DDP terms, our logistics team will ensure your order is handled efficiently from our factory to your destination.

Q: Do you provide installation support or technical documentation?

A: Yes. Each shipment includes comprehensive installation guides and maintenance manuals. For major infrastructure projects, our technical team is available to provide remote guidance or detailed CAD drawings to ensure accurate setup. We are committed to supporting our partners through every stage of the project.

Our mission is to combine manufacturing excellence with exceptional service. We operate with a strict quality control system to ensure every panel meets international standards, and our dedicated team is committed to providing competitive pricing, reliable lead times, and professional project support. Partner with us to secure your projects with confidence.

Contact our sales team today to get free project consultation, customized drawings and competitive bulk pricing for your 3D mesh fence project.
