BRC Roll Top Fence

BRC Roll Top Fence, widely named Roll Top Welded Mesh Fence, is a premium safety welded wire fence with unique triangular roll top & bottom folded edges.

Manufactured from high tensile galvanized steel wires, all wires are fully welded then bent into smooth roll-top curve without sharp edges. The special trigonal rolled beam design greatly boosts overall structural rigidity while keeping clear mesh visibility.

Thanks to its smooth burr-free surface, high security and neat outlook, this roll top mesh fence is extremely popular in Singapore, Japan, South Korea and Southeast Asia market, extensively applied as perimeter safety barrier for schools, playgrounds, parks, sports stadiums, industrial premises, parking lots and residential communities.

Shortcoming note: The triangular roll bending structure brings extra packaging volume, so BRC roll top fence is mainly hot-selling in Asian regions currently.

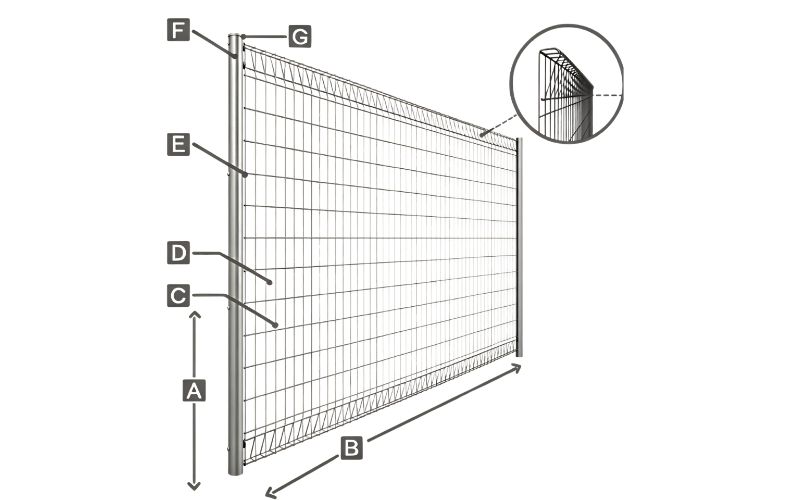

SPECIFICATION

A:Height:900–2400 mm

B:Width:1500–3000 mm

C:Wire Diameter:4.0 mm, 4.5 mm, 5.0 mm, 6.0 mm

(thicker wire for higher rigidity & impact resistance)

D:Mesh Opening:50 × 150 mm, 50 × 200 mm, 50 × 300 mm(custom mesh size acceptable)

E:Clamp:metal clamp / anti-UV plastic clamp

F:Post:

Round post (48 OD × 1.5/2.0 mm, 60 OD × 1.5/2.0 mm);

Square post (50 × 50 × 1.5/2.0 mm, 60 × 60 × 1.5/2.0 mm, 80 × 80 × 1.5/2.0 mm);

Rectangular post (40 × 60 × 1.5/2.0 mm, 40 × 80 × 1.5/2.0 mm, 60 × 80 × 1.5/2.0 mm, 80 × 100 × 1.5/2.0 mm)

G:Post Cap:metal cap/anti-UV plastic cap

Matching Gate Sizes

Single gate: 1200mm width; Double gate: 2×2400mm width

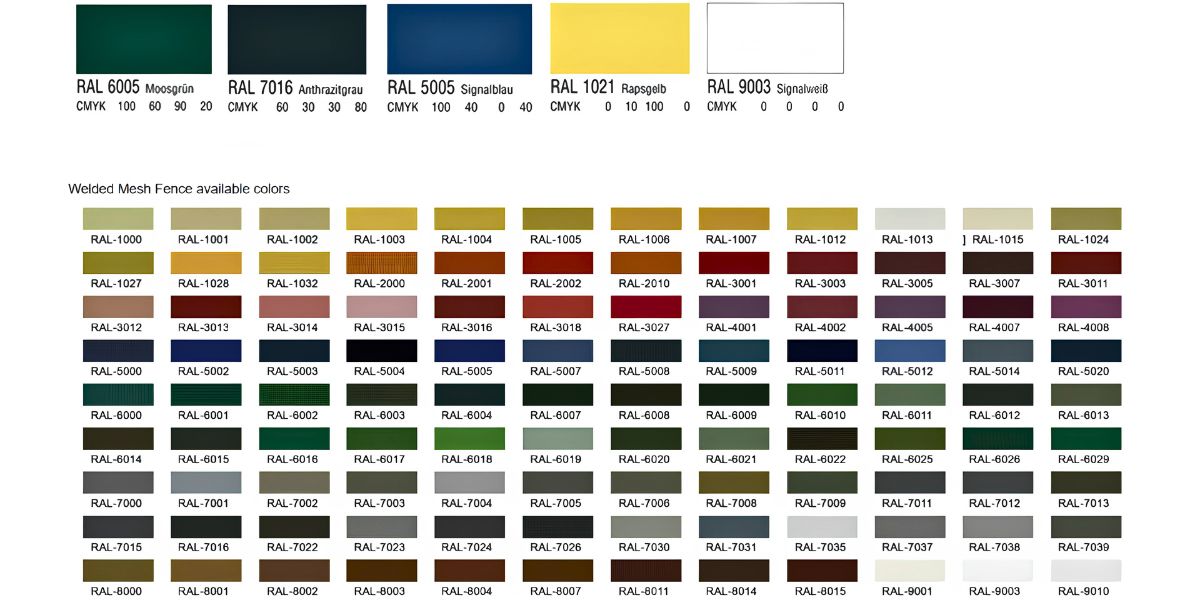

COLORS AVAILABLE

Full RAL color range for polyester powder coating & PVC coating. Popular colors: Green, Gray, Black, White. Custom RAL colors acceptable; physical color swatches available for pre-production confirmation.

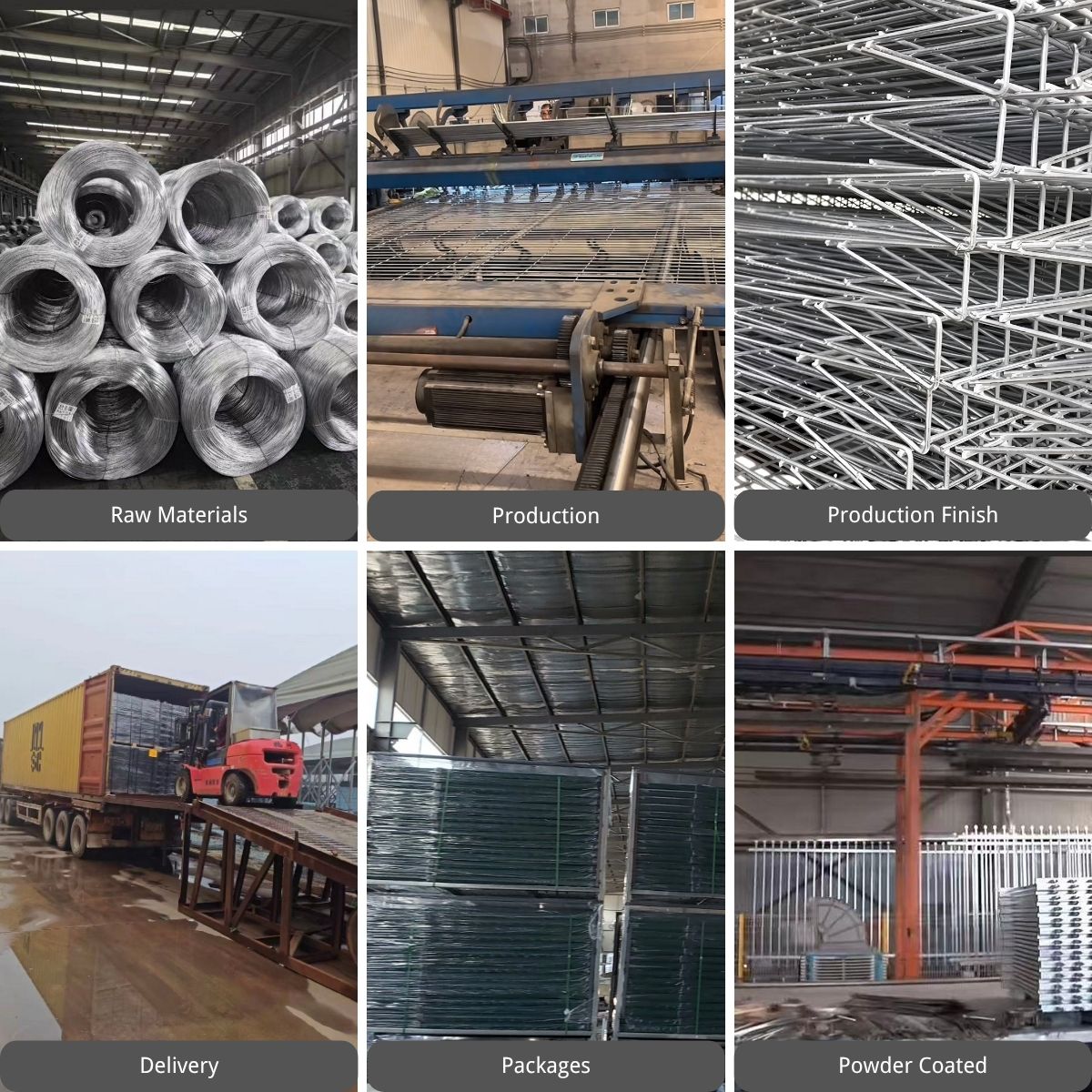

PRODUCTION FLOW CHART

Raw Material Check → Cutting → Mesh Welding → Roll Top Bending → Post Punching → Surface Cleaning → Anti-rust Base Coating → Powder/PVC Top Coating → Final QC Inspection → Packing & Delivery

FEATURES

Roll Top Triangular Edge Design

Curved roll top & bottom edges deliver elegant appearance and ultra-rigid structure, no sharp raw edges, kid-friendly for school & playground use.

Stable Welded Joint Structure

Fully welded wire joints lock mesh firmly, greatly extend service life and improve overall impact resistance.

Multi Anti-Rust Surface Treatment

Adopt high-grade steel raw material, match pre-galvanized, hot dipped galvanized, polyester powder coating, PVC coated，Zalcote finish. The fence owns outstanding anti-corrosion, anti-rust and weatherproof performance, suitable for coastal & high-corrosion environment.

Clear Visible Mesh Opening for Dual Safety

Standard 50×150mm / 50×200mm mesh aperture balances transparent sightline and anti-climb security, perfect for public place safety isolation.

Full RAL Color Customization

All standard RAL color powder coating optional, easily match various landscape, factory and residential environment demands.

Low Maintenance & Long Service Life

Anti-rust coating avoids frequent repaint & repair work, reduce later maintenance cost; heavy gauge steel wire guarantees decades-long service time.

Cost-Effective & Fast Installation

Economical raw material & processing cost; matched metal V-clips, spider clips and UV-proof plastic clamps speed up on-site installation, 2900mm wide panels can cut post & labor cost by nearly 20%.

Fully Customizable

Custom mesh height, width, wire diameter, bending size, post type and accessories available to meet customer exclusive project requirements.

Surface Treatment(Anti-Rust Treatment):

A: Electric Galvanized(8-12g/m²) + Polyester Powder Coated (All colors in Ral)

B: Electric Galvanized(8-12g/m²) + PVC Coated

C: Hot Dipped galvanized(40-60g/m²) + Polyester Powder Coated (All colors in Ral)

D: Hot Dipped galvanized(40-60g/m²) + PVC Coated

E: Hot Dipped Galvanized after welding (505g/m²)

F: Galfan(200g/m²) + Polyester Powder Coated (All colors in Ral)

G: Galfan(200g/m²) + PVC Coated

NOTE:

Be manufactured using galvanized steel wire.

Be coated with exclusive Architectural Grade Powder Coat.

This coating is super-durable and environmentally sound. Our powder coating provides the industry's Highest Weather ability and Gloss Retention in U.V. Exposure.

We adopt architectural-grade eco-friendly powder coatings with industry-leading UV resistance, weather durability and gloss retention. Under long-term outdoor sunlight exposure, its service lifespan is 3 times longer than ordinary standard powder coating from competitors.

ADVANTAGES

· Hot-selling security fencing for Asian markets

· Transparent see-through roll top welded mesh panels

· Economical budget perimeter fencing

· High anti-climb safety performance

· Fast & simple on-site installation

· Low post-installation maintenance cost

· High structural rigidity and impact resistance

· Excellent anti-rust, anti-corrosion and weatherproof performance

· Custom sizes, wire gauges and mesh openings available

· Full RAL color powder coating customization

· Smooth sharp-free design for children’s public areas

· Multiple anti-rust coating options for inland and coastal projects

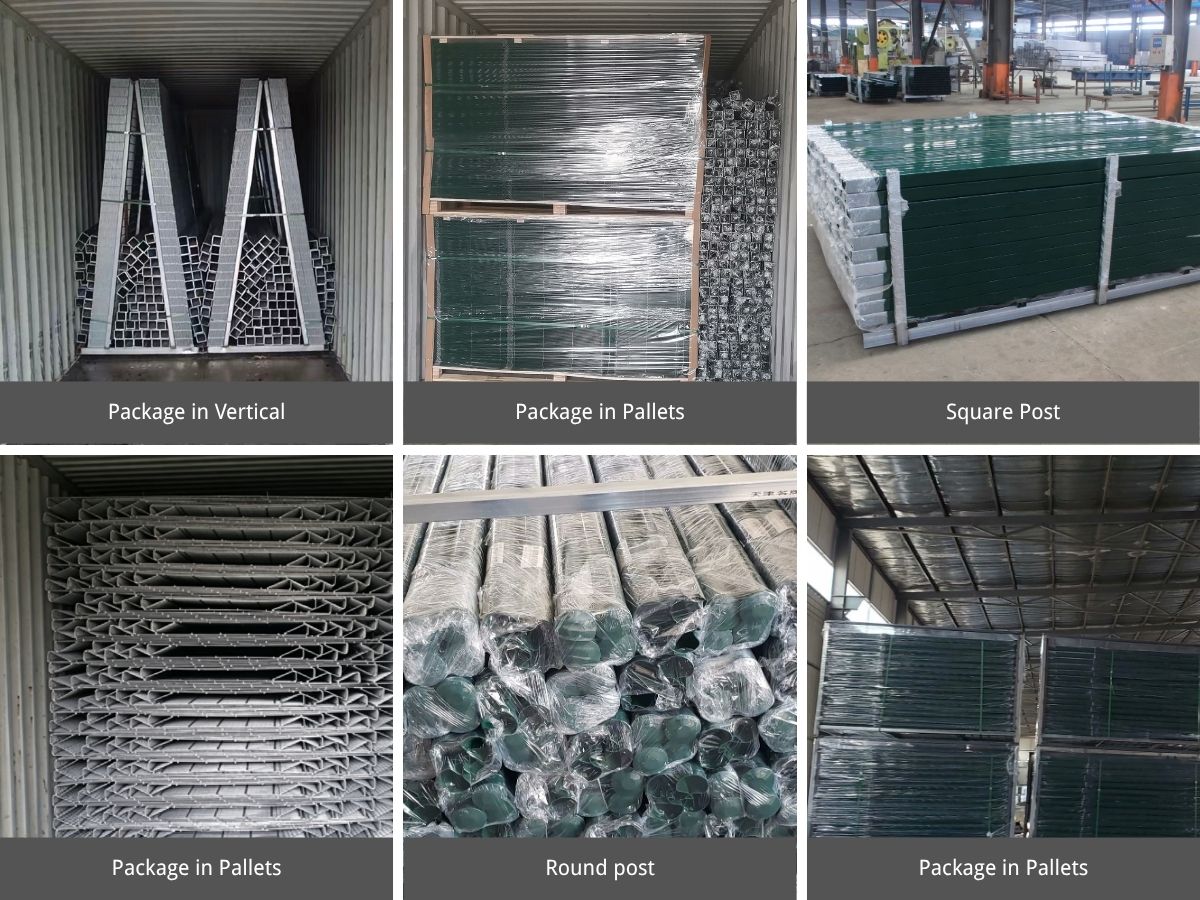

PACKAGE&DELIVERY

Panels packed on export standard wooden pallets to avoid deformation during transit.

All metal clamps, bolts, post caps and accessories packed separately.

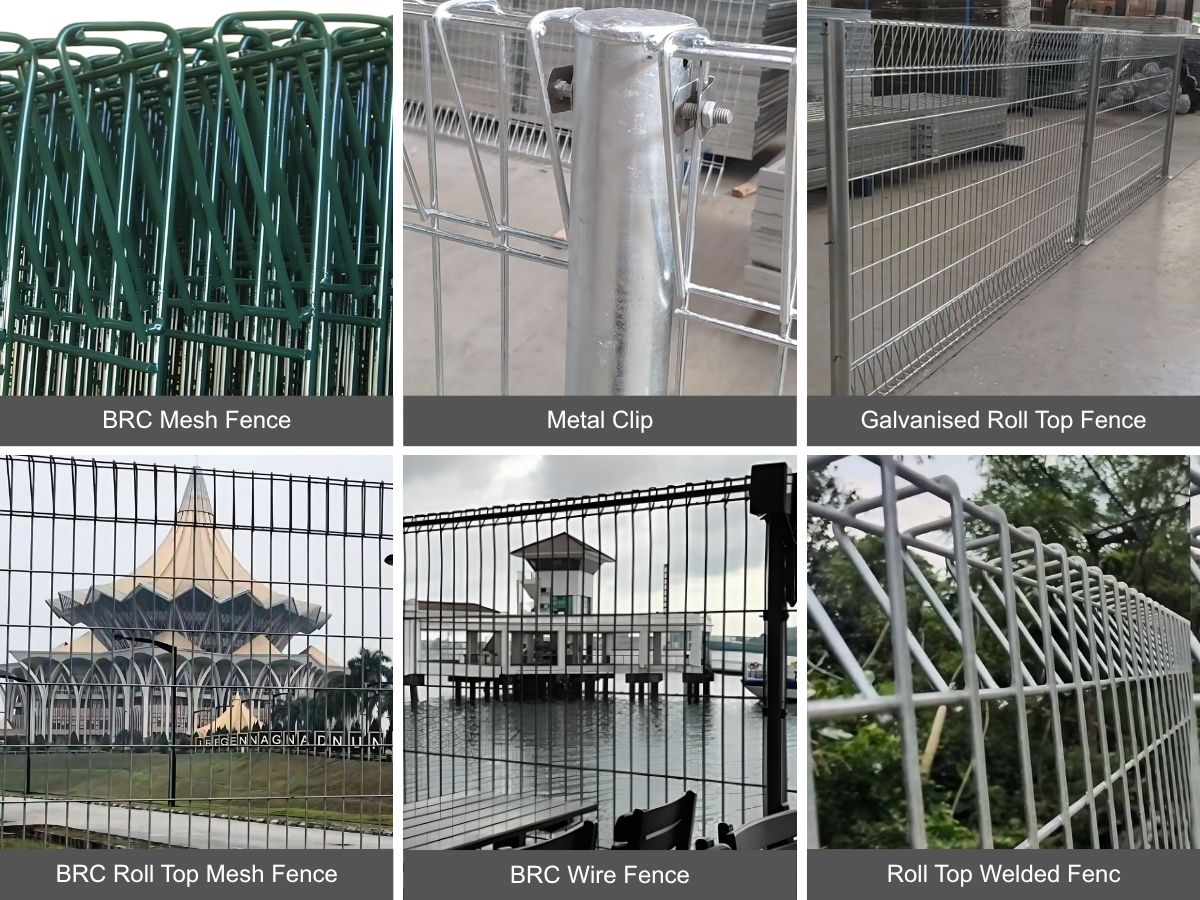

APPLICATION

Our BRC roll top security fence is widely used as perimeter isolation & safety barrier for:

· Primary & Secondary Schools, Kindergartens, Playgrounds

· Public Parks, Sports Stadiums, Sports Grounds

· Industrial Factories, Warehouse Premises, Logistics Parks

· Residential Communities, Villas, Housing Estates

· Parking Lots, Municipal Public Facilities

· Highway Green Belts, Construction Temporary Enclosure
