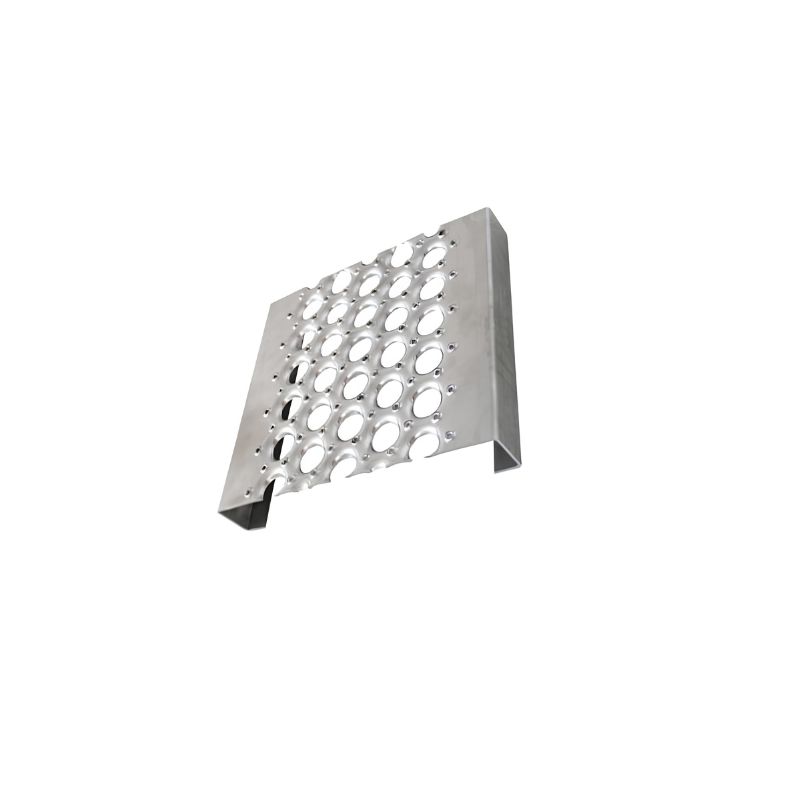

Safety Grating
Safety grating is a heavy-duty, load-bearing flooring solution engineered to prevent slips, trips, and falls in hazardous industrial, commercial, and public environments. Manufactured through cold-stamping and forming processes, these products provide superior grip in wet, oily, or icy conditions.
BENEFITS
· Superior Traction: Serrated or perforated surfaces provide industry-leading grip.
· Safety First: Self-cleaning design allows debris, liquids, and snow to pass through, keeping walkways clear.
· Lightweight & Durable: Engineered for high strength-to-weight ratios without compromising load capacity.
· Maintenance: Corrosion-resistant materials ensure a long service life with minimal upkeep.
· Easy Fabrication: Modular designs allow for quick installation, cutting, and welding to fit specific project dimensions.
PARAMETER TABLE
We provide a comprehensive range of anti-slip grating solutions, including:
PRODUCT CATEGORY | DESCRIPTION |
PLANK GRATING | MODULAR PLANKS FOR WALKWAYS, MEZZANINE FLOORING, AND RACK DECKING. |
GRATING SHEETS | VVERSATILE SHEETS FOR LARGE AREA COVERAGE AND CUSTOM FABRICATION. |
STAIR TREADS | HEAVY-DUTY TREADS DESIGNED FOR SAFETY IN STAIRWELLS AND STEEP ACCESS AREAS. |
LADDER RUNGS | HIGH-TRACTION RUNGS FOR SECURE LADDER CLIMBING. |

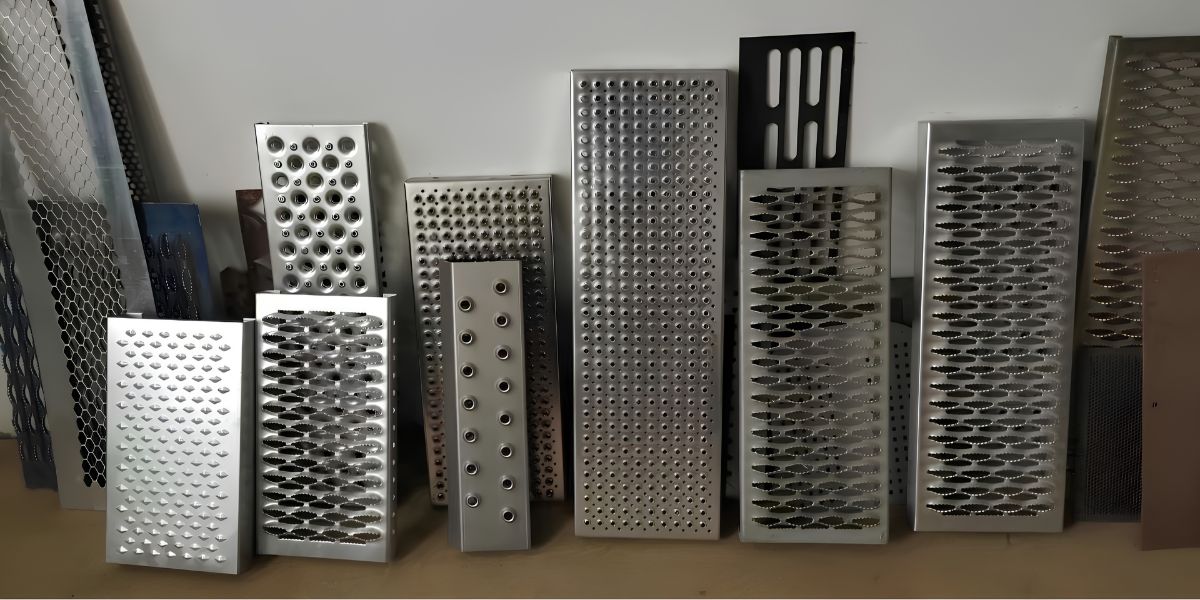

PLANK GRATING CATEGORIES
· Grip Strut& Heavy Duty Grip Strut Grating
· Perf-O-Grip Grating
· Traction Tread Sheet and Plank Grating
· Ladder Rungs
RECOMMENDED MATERIALS
Selecting the right material ensures longevity in your specific operating environment:
Carbon Steel: The most economical choice for general-purpose industrial applications.
Stainless Steel: Ideal for highly corrosive environments (e.g., chemical, food, or marine).
Aluminum: Lightweight and non-corrosive, perfect for outdoor or aesthetic architectural uses.

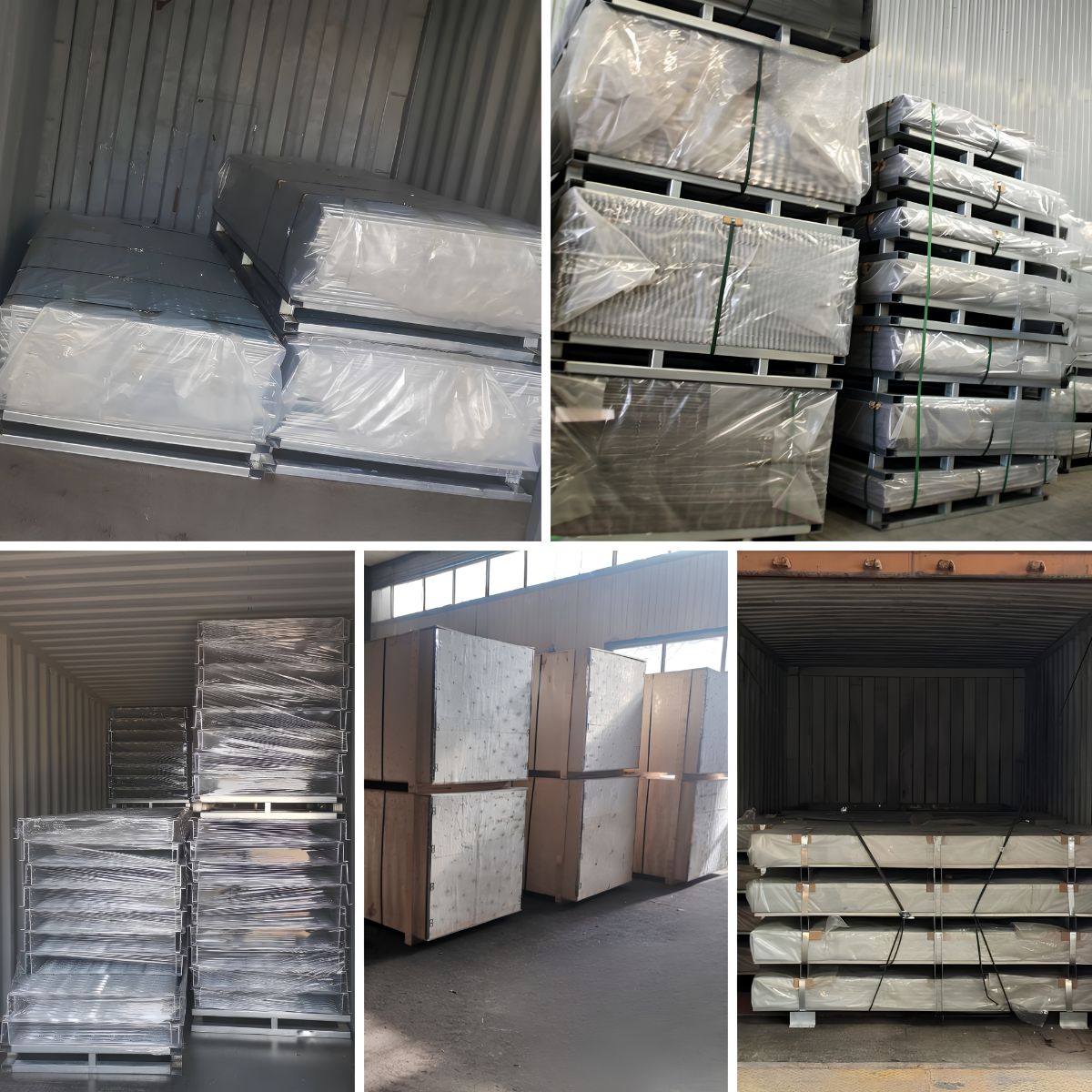

PACKAGES
APPLICATIONS
· Safety grating is the preferred choice for environments where safety and durability are critical:
· Industrial: Platforms, catwalks, machinery access, and maintenance areas.
· Commercial: Rooftop walkways, mezzanine flooring, and rack decking.
· Public/Utility: Stairs, ramps, bridge walkways, and sign-board support systems

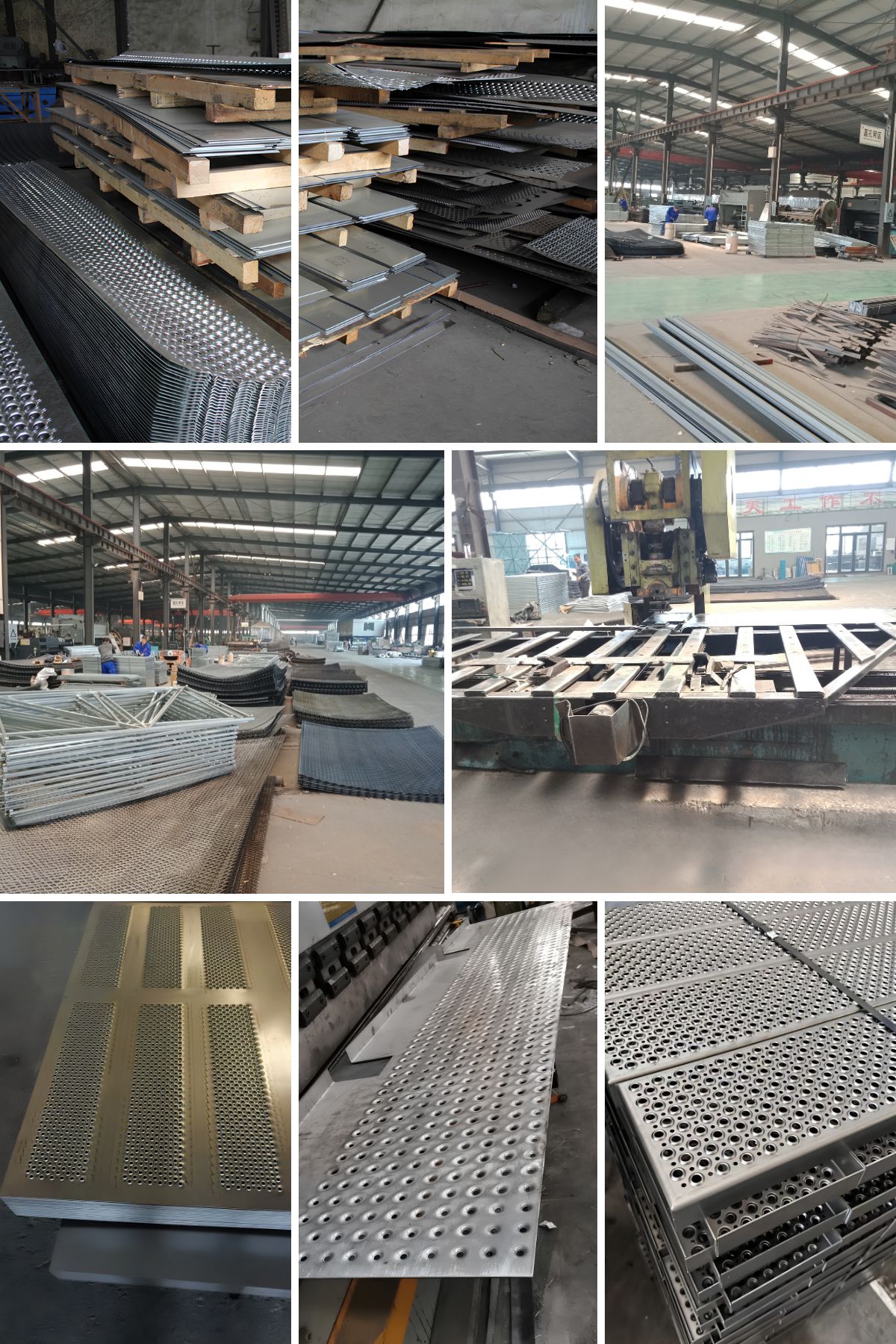

FACTORY
How to Select Your Safety Grating?
To ensure you choose the most effective solution for your project, consider:
Environment: Will the grating be exposed to chemicals, salt spray, or extreme weather?
Load Requirements: Determine the span and the weight capacity needed for your application.
Surface Texture: Choose between serrated (maximum grip) or standard perforated (smooth transit) patterns.
Customization: Do you require specific cutting, notching, or custom-length planks?
Frequently Asked Questions: Industrial Safety Grating & Anti-Slip
Q:What is the difference between Grip Strut and Perf-O-Grip safety grating?
A:While both are industry-leading anti-slip grating options, they cater to different environments. Grip Strut grating features an open, serrated diamond-shaped surface that provides superior, 360-degree traction. It is the gold standard for high-risk industrial areas prone to mud, ice, or oil. In contrast, Perf-O-Grip grating uses a circular, raised, perforated pattern. It is less aggressive, making it more comfortable for foot traffic while still providing excellent slip resistance—a perfect choice for commercial or public walkway systems.
Q:How do I calculate the Load Capacity for Safety Grating planks?
A: Load capacity is determined by your specific application, including the span (distance between structural beams) and the plank's gauge. Most engineering standards require a deflection limit of L/180 or L/240 for stability. You must distinguish between Uniform Load (weight distributed evenly) and Concentrated Load (weight focused on a small area). Pro-tip: Always refer to the manufacturer’s load tables for your specific channel height and width, and consult a structural engineer for public-access mezzanine projects.
Q:Which material is best for outdoor Industrial Floor Grating?
A: The "best" material depends on your environment's exposure levels:
Aluminum: Lightweight and naturally corrosion-resistant; ideal for architectural projects or marine environments.
Galvanized Steel: The most cost-effective solution for long-term outdoor use, providing a strong sacrificial barrier against rust.
Stainless Steel (304/316): The ultimate choice for extreme conditions, such as chemical plants or constant salt-spray exposure, where maximum durability is required.
Q: How do Safety Grating products compare to standard bar grating?
A: While standard bar grating is effective for drainage, safety grating is purpose-built for high-traction safety. The serrated edges and custom-formed patterns of metal plank grating provide a much higher level of grip than flat-bar designs. If your primary goal is to prevent slips, trips, and falls in industrial or commercial walkways, our non-slip grating is the preferred industry solution.
Q:Why choose LantoMetal as your Safety Grating Manufacturer?
A: As a professional safety grating manufacturer, Lanto prioritizes precision, durability, and safety compliance. We utilize high-precision CNC punching and roll-forming technology to ensure that every plank meets strict dimensional tolerances and anti-slip standards. Whether you need custom-length metal walkway planks for new construction or bulk orders for plant maintenance, we deliver reliable, high-performance safety flooring solutions on time and within your budget.
