Palisade Fence
High Security Steel Palisade Fence - W / D / Angle Pale Anti-Climb Perimeter Palisade Fencing
Steel Palisade Fence is a mainstream heavy-duty perimeter security fence widely popular in Europe, Australia, South Africa and global markets. Our LantoMetal palisade fence combines hot rolled steel and cold formed steel sections to build ultra-strong fence panels, effectively block intrusion, vandalism, climbing and cutting damage.
We supply three mainstream pale types: W-profile palisade pale, D-section palisade pale, angle steel palisade pale. Each palisade fencing panel adopts bolt-on assembly structure without welding, with tamper-proof snap off bolts, easy installation and low later maintenance. This anti-cut anti-climb palisade fence is ideal for utility power/water/gas stations, schools, stadiums, airports, docks, factories, commercial parks, private residential yards, railway boundaries and prison high-security enclosures.
Two surface treatments optional: hot dipped galvanized palisade fence, galvanized plus polyester powder coated palisade fencing with full RAL color customization, outstanding anti-rust and weather resistance for long outdoor service life.
ADVANTAGES & FEATURES OF OUR STEEL PALISADE FENCE
High Security Anti Intrusion: Thick steel pales resist cutting, ramming and climbing; triad triple pointed spike top blocks intruders efficiently
Tamper Proof Design: Special snap off security bolts & fish plate connectors cannot be removed after installation, anti-vandal structure
Ultra Strong Structure: All components use high tensile heavy gauge steel, no bending or deformation under heavy impact
Long Service Durability: Hot dipped galvanized base + optional powder coating, zero regular maintenance, anti-corrosion for coastal & rainy areas
See-Through Panels: Transparent palisade fencing design without blind spots, convenient daily patrol & monitoring
Cost-Effective Economical Choice: W section palisade pale saves raw steel cost while retaining equal strength, competitive wholesale price
Fast Easy Assembly: All palisade fence panels are split assembly, no on-site welding, cut labor & construction time greatly
Fully Customizable: Custom palisade fence height, width, pale thickness, spike top style, post type and RAL coating colors per project demands

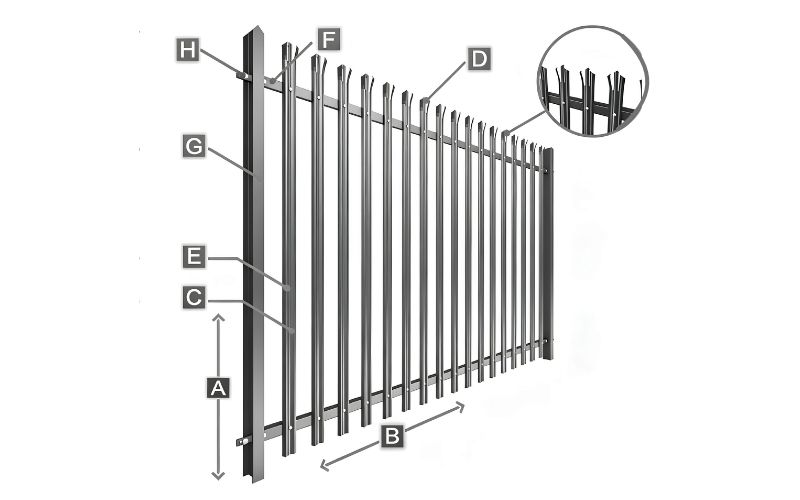

PALISADE FENCE COMPONENTS & FITTING ACCESSORIES
Our full set palisade fence spare parts support full panel assembly, all matching galvanized or powder coated finish consistent with fence panels:
1. Vertical Pales: W section pale / D section pale / angle steel pale, thickness 1.5mm-3.5mm
2. Support Posts: IPE steel H post, square SHS post, multiple sizes for different fence height
3. Horizontal Rails: Heavy duty angle steel beam, connect vertical pales to form complete panels
4. Connection Fish Plates: Straight fish plate, end fish plate, corner fish plate for straight, end and corner fence installation
5. Security Fasteners: M8×25, M12×30 snap off anti-vandal bolts & nuts, tamper proof fixing
6. Optional Security Add-ons: V arm, single arm, barbed wire, concertina razor wire, flat wrap razor wire for maximum high security projects
DETAILED TECHNICAL SPECIFICATIONS OF STEEL PALISADE FENCE
1. Standard Panel Dimensions
· Standard Height: 1200mm / 1800mm / 2100mm / 2400mm / 3000mm
· Standard Panel Width: 2750mm / 3050mm

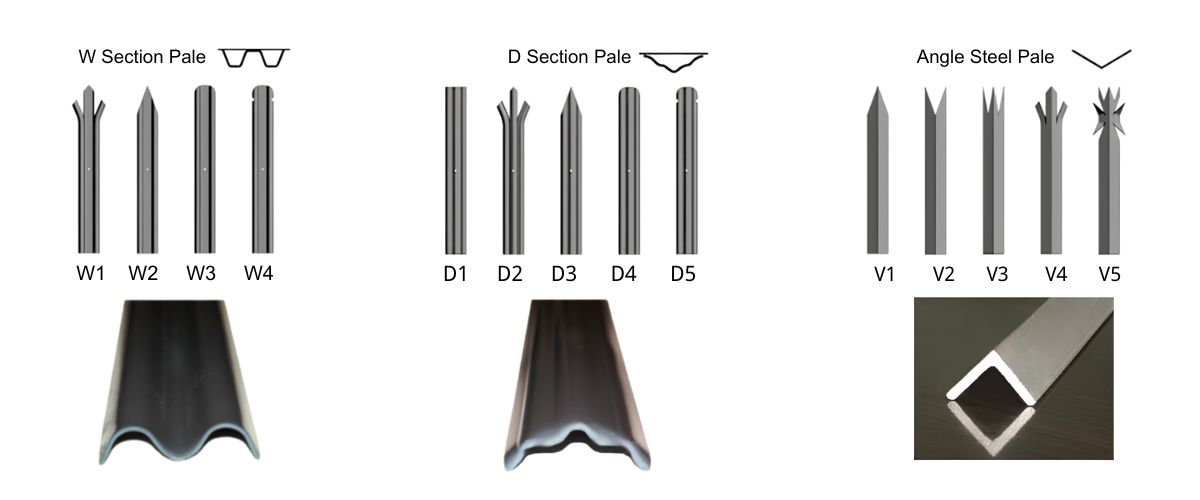

2. Vertical Pale Options
PALE TYPE | WIDTH SIZE | AVAILABLE THICKNESS | OPTIONAL SPIKE TOP STYLES |
W SECTION PALISADE PALE | 62MM / 70MM | 1.5MM / 2.0MM / 2.5MM / 3.0MM | SINGLE POINT / TRIAD TRIPLE POINT / ROUND TOP / ROUND NOTCH TOP |
D SECTION PALISADE PALE | 60MM / 65MM | 1.5MM / 2.0MM / 2.5MM / 3.0MM / 3.5MM | SINGLE POINT / TRIAD TRIPLE POINT / SQUARE TOP / CURVED TOP |
ANGLE STEEL PALISADE PALE | 40×40MM | 2.0MM / 3.0MM | MULTI-SPIKE TRIAD SPLAYED HEAD |
3. Horizontal Angle Steel Rails
40×40×4.0mm / 45×45×4.5mm / 50×50×5.0mm / 60×60×5.0mm angle iron rails
4. Support Post Sizes
· IPE H Post: 100×55×3.5mm / 100×68×4.0mm / 120×74×4.5mm
· Square SHS Post: 60×60mm / 80×80mm / 100×100mm
5. Surface Anti-Rust Treatment
1. Hot Dipped Galvanized (505g/m² zinc layer): For coastal, high humidity industrial sites
2. Electric Galvanized + Polyester Powder Coating: Full RAL color options, decorative & anti-rust for residential & commercial palisade fencing
MULTIPLE PALE HEAD & FENCE TOP DESIGN STYLES
We provide two main fence top shapes and multiple spike head styles for palisade fence to match different security levels and aesthetic demands:

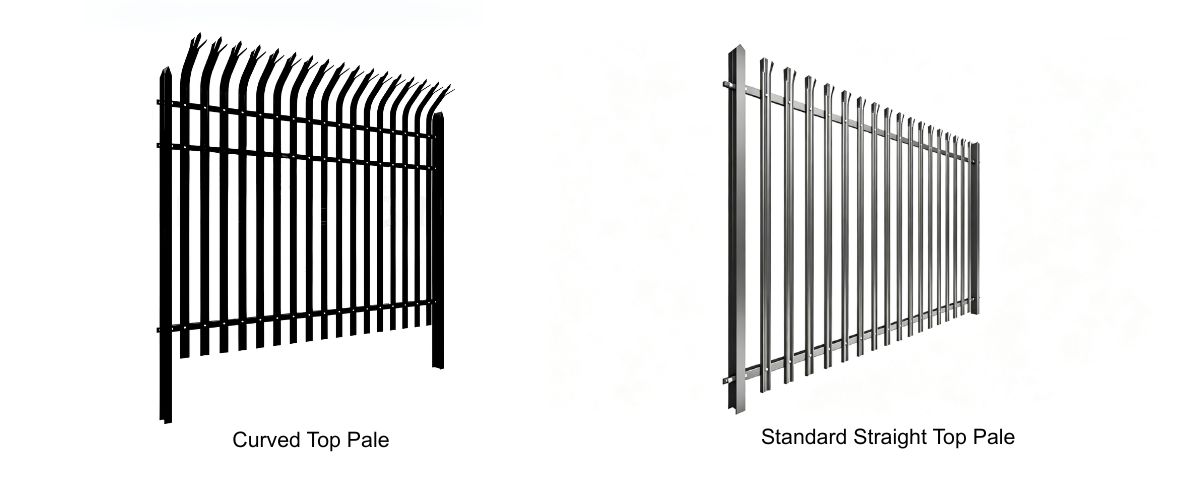

Fence Overall Top Shape
Standard Straight Top Palisade Fence: Classic industrial design, cost-effective for general perimeter security
Curved Anti-Climb Top Palisade Fence: Sloped curved top eliminates footholds, maximum anti-intrusion performance for high-risk sites

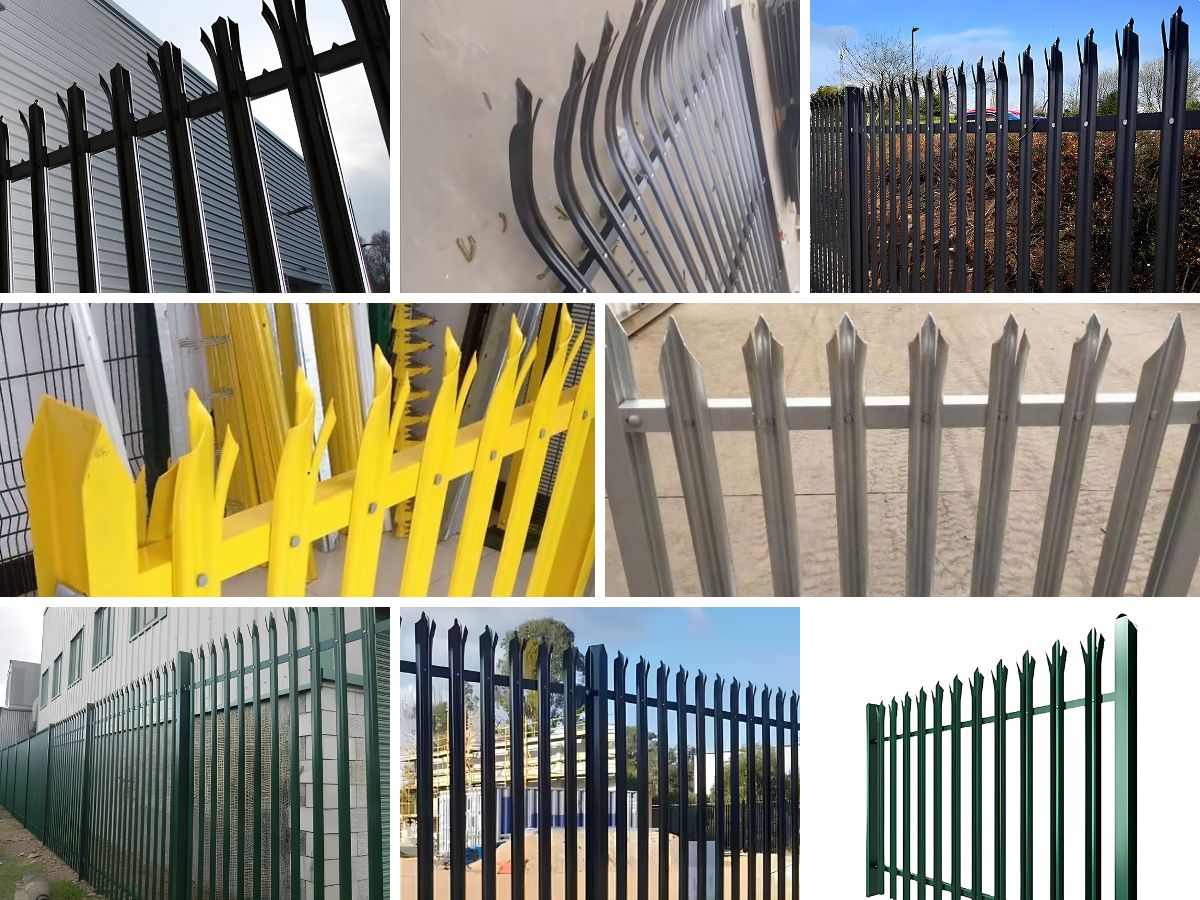

Pale Spike Head Styles Single pointed head, square flat top, round smooth top, round & notch top, triple triad splayed spike head, multi-spike angle steel head. Triple triad splayed head is our most popular choice for high security palisade fencing; sharp spread spikes make climbing over extremely difficult, widely used in prison, utility station and military boundary fencing.
W Section VS D Section Palisade Fence – Which To Choose?
W Section Palisade Fence (Best-Selling Model)
The most popular palisade fence on global market, the W folded profile forms self-reinforcing structure. It achieves equal structural strength with thinner steel gauge, lower raw material cost, more economical for most commercial, industrial and residential palisade fencing projects.
D Section Palisade Fence (Traditional Government Standard)
Classic rounded D profile palisade pale, widely specified for government projects: schools, prisons, public infrastructure. If you need to repair or extend existing old palisade fence, D section palisade fencing is the matching choice to keep uniform appearance.

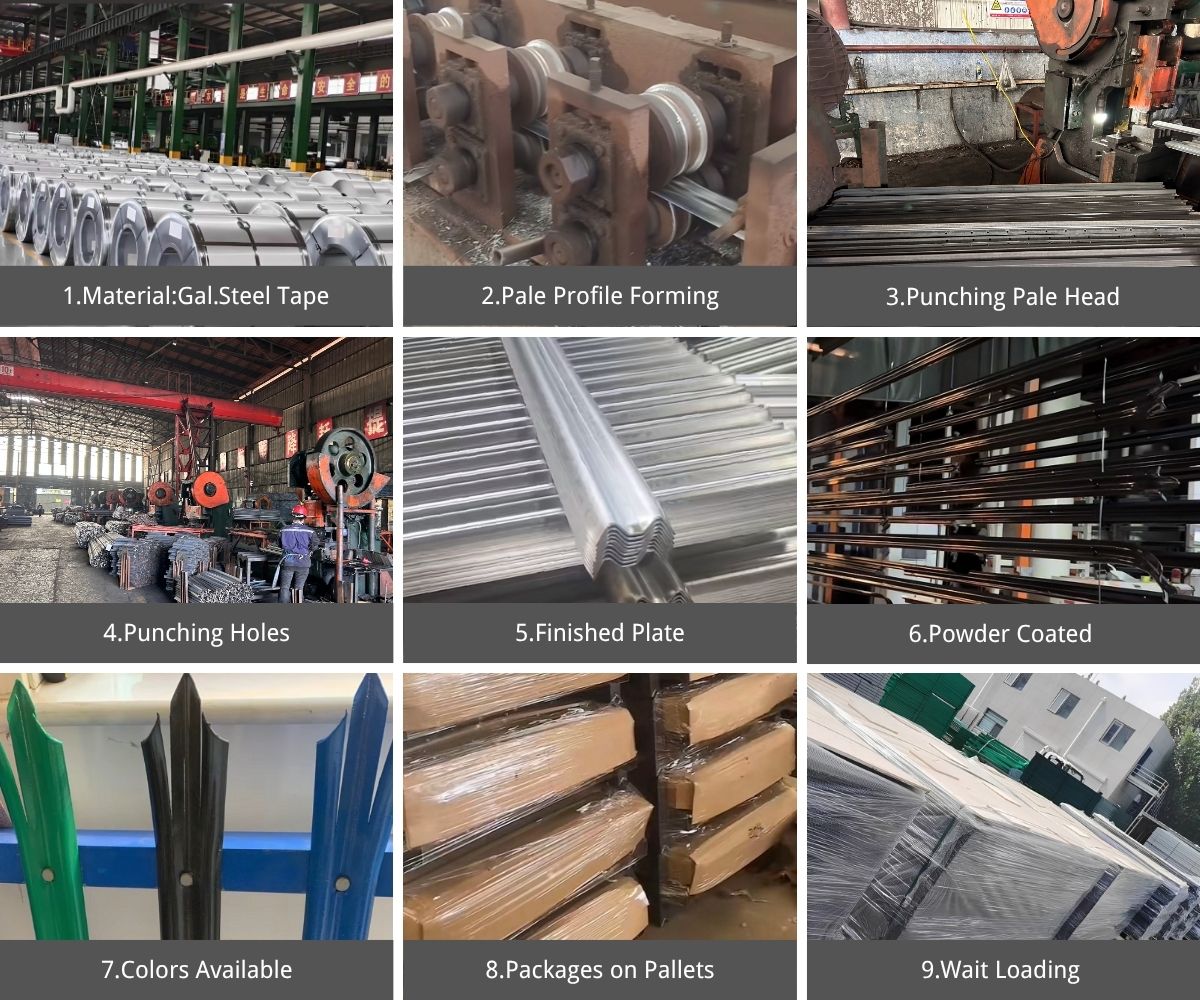

PRODUCTION FLOW CHART
APPLICATION
Our heavy duty palisade fencing fits all perimeter security scenarios:
1. Industrial & Utility: Power stations, water plants, gas facilities, factories, logistics yards, railway boundaries
2. Public & Educational Places: Primary/secondary schools, universities, stadiums, sports venues, parks, churches
3. Transportation Hubs: Airports, seaports, highway boundaries, transit stations
4. High-Security Special Zones: Prisons, detention centers, military zones, government compounds
5. Commercial & Residential Areas: Shopping malls, office parks, private villas, residential community perimeter protection
6. High Security : Match with V arms, barbed wire, razor wire for top-level anti-breakthrough protection
PACKAGE & DELIVERY FOR PALISADE FENCE
All palisade fence panels are split assembly style without welding, we separate pales, rails, posts and accessories into bulk loose cargo for container loading. Compared with pre-assembled full panels, bulk packing greatly improves container space utilization, effectively cut down sea freight cost for wholesale palisade fence orders. All steel parts are wrapped with waterproof plastic film to avoid scratch and galvanization damage during long-distance sea transportation.
Why Choose LantoMetal as Your Steel Palisade Fence Supplier?
1. Professional Palisade Fence Factory: 10+ years production experience, full automatic production line for W/D/angle palisade fencing
2. Customized One-Stop Service: Custom size, thickness, color, spike top and matching security accessories per your project drawings
3. Strict Quality Control: Raw steel material inspection, galvanization thickness test, powder coating adhesion test before shipment
4. Competitive Factory Direct Price: No middleman markup, wholesale bulk discount for large engineering orders
5. Global Export Experience: Rich packaging & shipping experience for Europe, Australia, South Africa, Southeast Asia palisade fence orders
6. Complete Technical Support: Provide spec sheets, CAD drawings, installation guides and on-site construction suggestions
FAQ---(PALISADE FENCE)
Q1: What is palisade fence used for?
A: Steel palisade fence is a high security perimeter fencing for industrial, utility, school, residential, prison boundaries, stop climbing, cutting and unauthorized intrusion.
Q2: Which is better W palisade fence or D palisade fence?
A: W section palisade fence is more cost-effective for general projects; D section palisade fencing is standard for government, old fence renovation and prison projects.
Q3: Is palisade fence anti climb?
A: Yes, our palisade fence with triad triple pointed spikes and curved top design eliminates footholds, professional anti-climb high security fencing.
Q4: How long does galvanized palisade fence last?
A: Hot dipped galvanized palisade fence can serve over 20 years outdoor; extra powder coating extends service life to 30+ years with zero maintenance.
Q5: Can I get custom color palisade fencing?
A: Absolutely, we support all RAL color polyester powder coating for W/D/angle steel palisade fence panels and posts.
Q6: Is palisade fence easy to install?
A: All palisade fence adopts bolt assembly without welding, equipped with complete fish plate connectors and snap off bolts, fast installation with basic tools.
