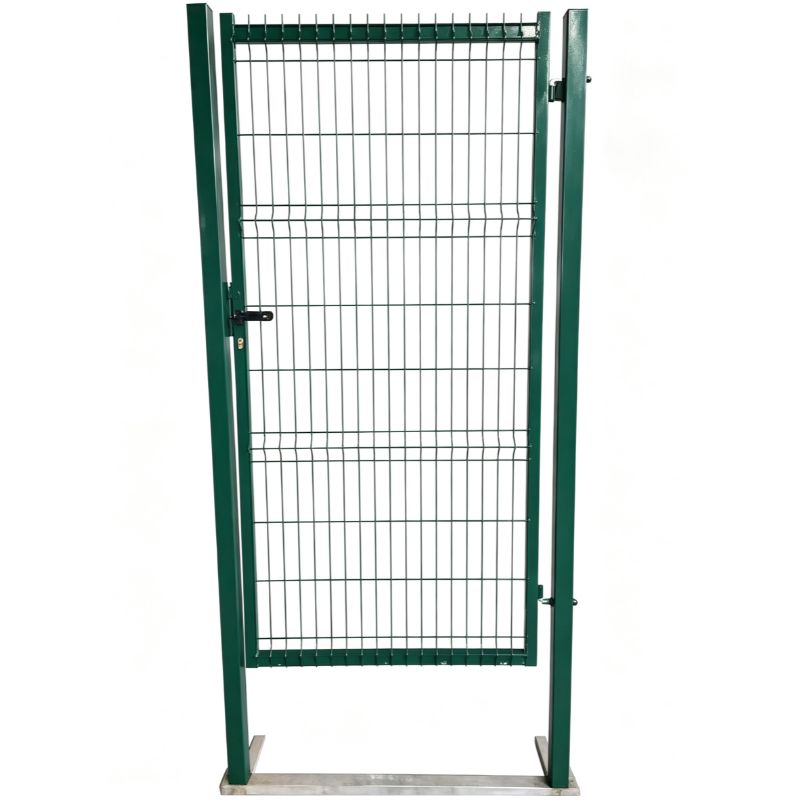

Garden Gate

Our garden gate is made of circular or square galvanized tube with welded mesh inside. the surface treatment is powder coated, the colour can be customer's choice.

Garden Gate is a metal fence entry gate designed for residential gardens, backyards, lawns, farms and perimeter fencing. It is constructed with galvanized steel frame and welded wire mesh infill, offering strong structure, clean appearance and long-lasting outdoor performance.

Key features:

Galvanized steel frame for corrosion resistance

Powder coated surface for outdoor durability

Welded wire mesh infill for security and visibility

Available in single gate and double gate designs

Custom height, width and color available

Easy installation with matching gate posts

PROMO GATE

HEIGHT(MM)	WIDTH(MM)	MESH(MM)	FRAME(MM)	GATE POST(MM)
1000	1000	100×50×4.0	40×1.3	48×1.5
1200	1000	100×50×4.0	40×1.3	48×1.5
1500	1000	100×50×4.0	40×1.3	48×1.5

ECO GATE

HEIGHT(MM)	WIDTH(MM)	MESH(MM)	FRAME(MM)	GATE POST(MM)
1000	1000	200×50×4.0	32×1.3	48×1.5
1200	1000	200×50×4.0	32×1.3	48×1.5
1500	1000	200×50×4.0	32×1.3	48×1.5

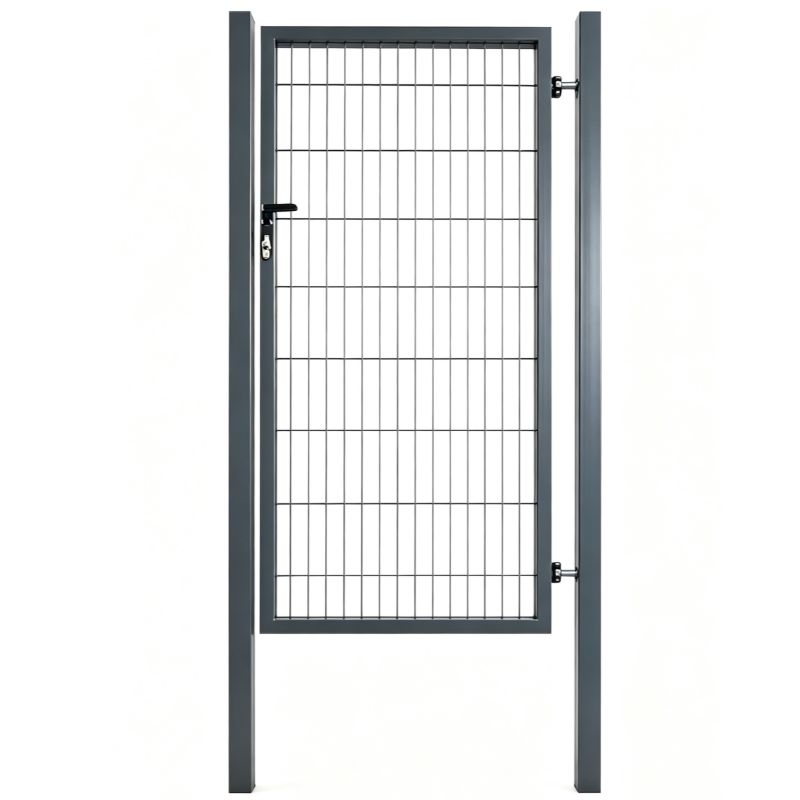

SQUARE TUBE GATE

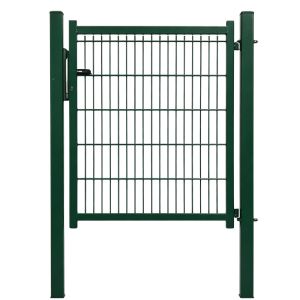

SINGLE WING GATE

HEIGHT(MM)	WIDTH(MM)	MESH(MM)	FRAME(MM)	GATE POST(MM)
1000	1000	50×50×4.0	40×40×1.5	60×60×1.5
1250	1000	50×50×4.0	40×40×1.5	60×60×1.5
1500	1000	50×50×4.0	40×40×1.5	60×60×1.5
1750	1000	50×50×4.0	40×40×1.5	60×60×1.5
2000	1000	50×50×4.0	40×40×1.5	60×60×2.0

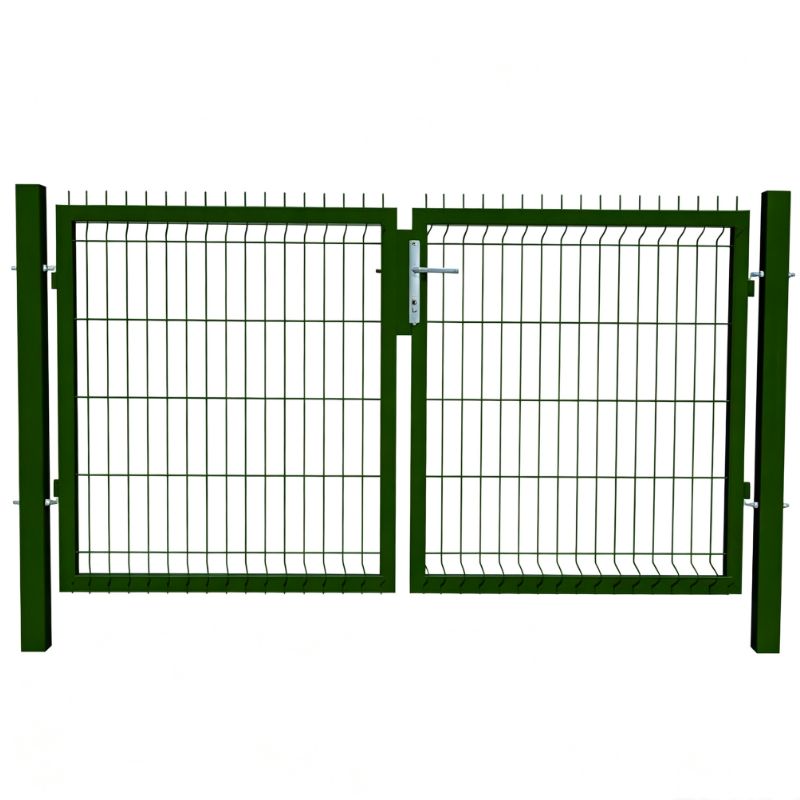

DOUBLE WING GATE

HEIGHT(MM)	WIDTH(MM)	MESH(MM)	FRAME(MM)	GATE POST(MM)
1250	3000(2×1500)	50×50×4.0	40×40×1.5	60×60×1.5
1500	3000(2×1500)	50×50×4.0	40×40×1.5	60×60×1.5
1750	3000(2×1500)	50×50×4.0	40×40×1.5	60×60×2.0
2000	3000(2×1500)	50×50×4.0	40×40×1.5	60×60×2.0
1250	4000(2×2000)	50×50×4.0	40×40×1.5	60×60×2.0
1500	4000(2×2000)	50×50×4.0	40×40×1.5	60×60×2.0
1750	4000(2×2000)	50×50×4.0	40×40×1.5	60×60×2.0
2000	4000(2×2000)	50×50×4.0	40×40×1.5	60×60×2.0

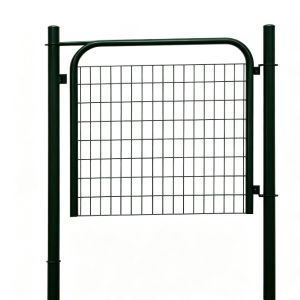

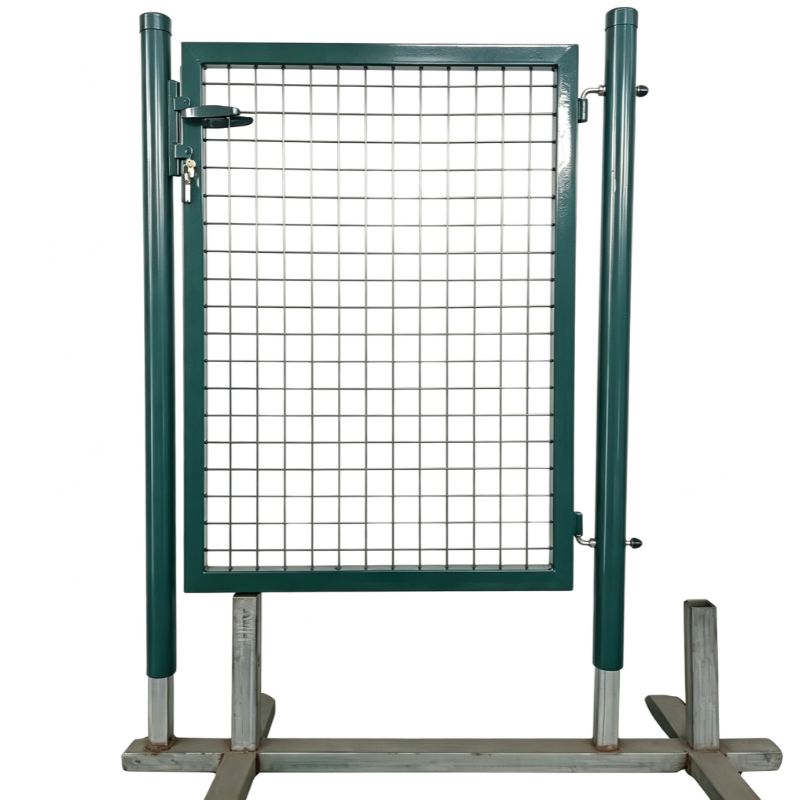

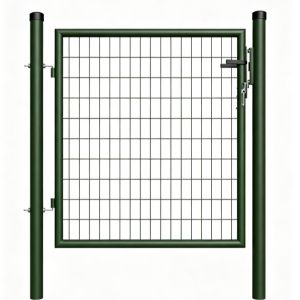

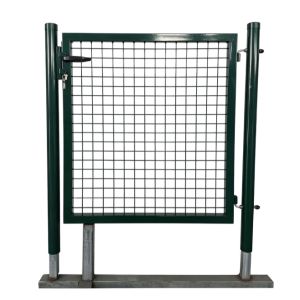

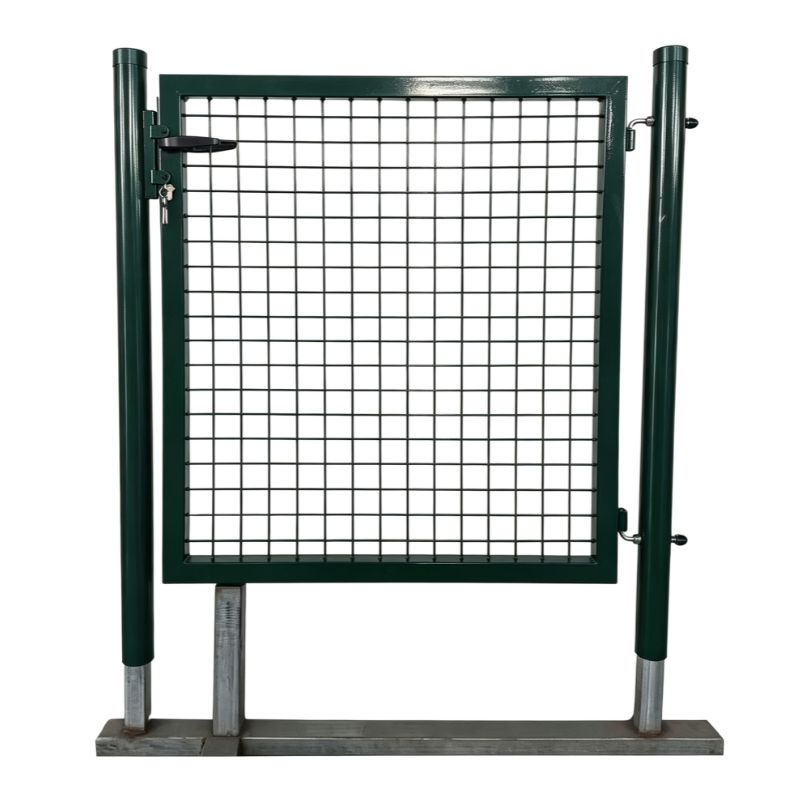

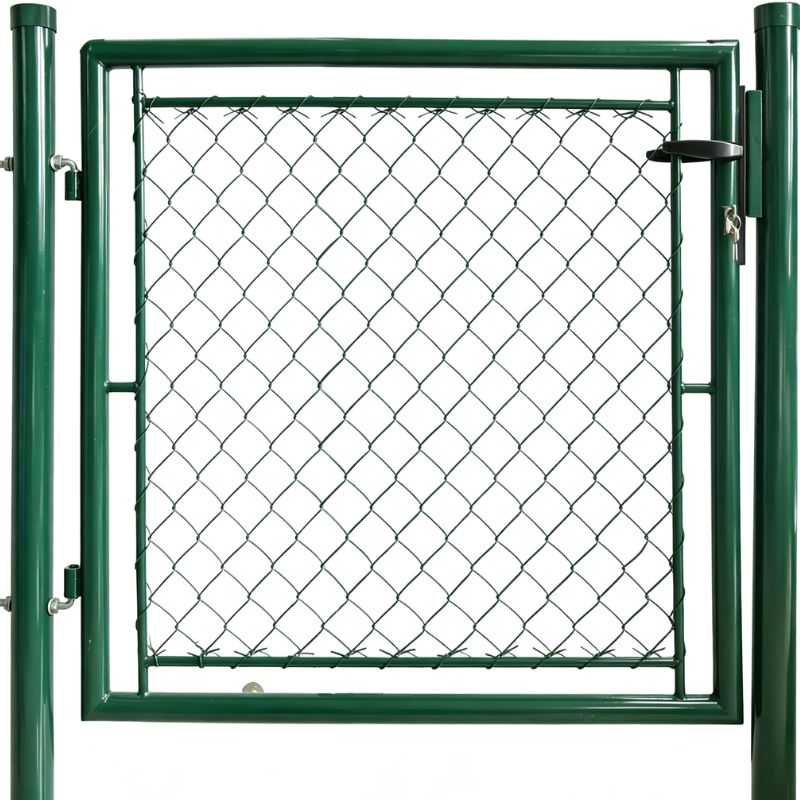

ROUND TUBE GATE

SINGLE WING GATE

HEIGHT(MM)	WIDTH(MM)	MESH(MM)	FRAME(MM)	GATE POST(MM)
1000	1000	50×50×4.0	40×1.5	60×1.5
1250	1000	50×50×4.0	40×1.5	60×1.5
1500	1000	50×50×4.0	40×1.5	60×1.5
1750	1000	50×50×4.0	40×1.5	60×1.5
2000	1000	50×50×4.0	40×1.5	60×1.5

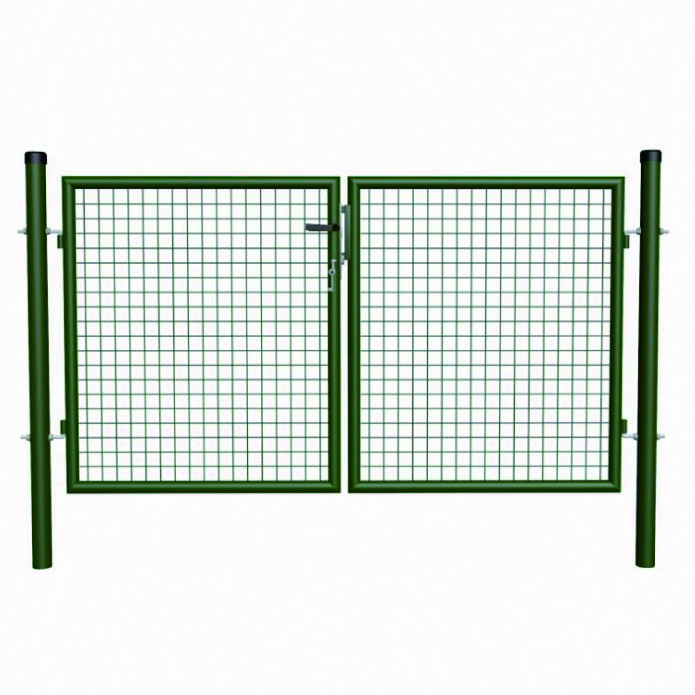

DOUBLE WING GATE

HEIGHT(MM)	WIDTH(MM)	MESH(MM)	FRAME(MM)	GATE POST(MM)
1250	3000(2×1500)	50×50×4.0	40×1.5	60×1.5
1500	3000(2×1500)	50×50×4.0	40×1.5	60×1.5
1750	3000(2×1500)	50×50×4.0	40×1.5	60×1.5
2000	3000(2×1500)	50×50×4.0	40×1.5	60×1.5
1250	4000(2×1500)	50×50×4.0	40×1.5	60×2.0
1500	4000(2×2000)	50×50×4.0	40×1.5	60×2.0
1750	4000(2×2000)	50×50×4.0	40×1.5	60×2.0
2000	4000(2×2000)	50×50×4.0	40×1.5	60×2.0

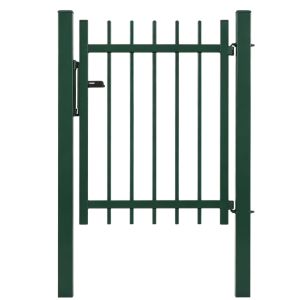

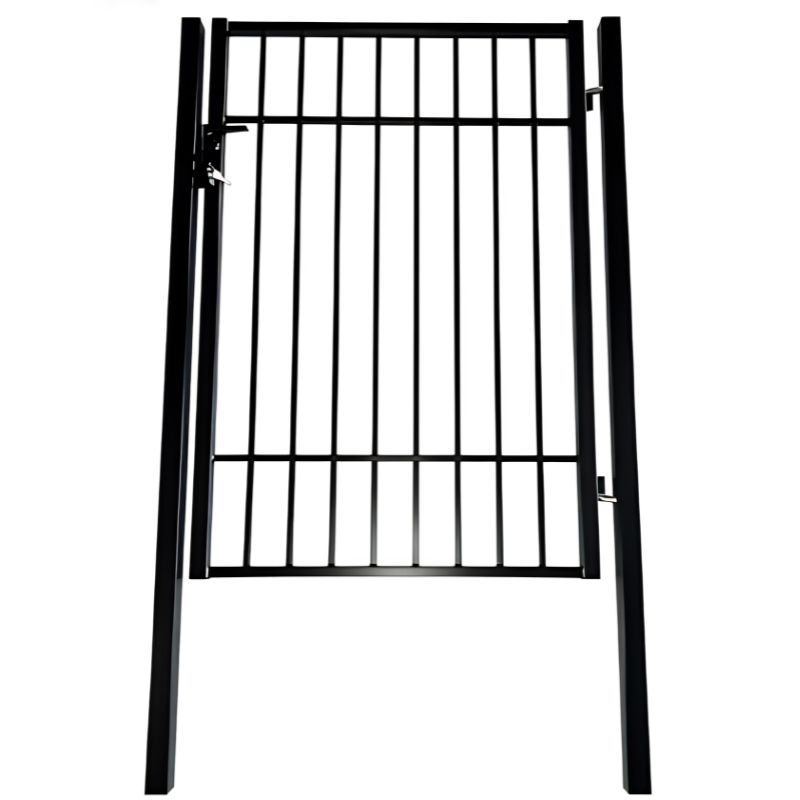

BAR GATE

NEIGHBOR BAR DISTANCE 110MM.

HEIGHT(MM)	WIDTH(MM)	MESH(MM)	FRAME(MM)	GATE POST(MM)
1000	1000	20×20×1.0	40×40×1.5	60×60×1.5
1250	1000	20×20×1.0	40×40×1.5	60×60×1.5
1500	1000	20×20×1.0	40×40×1.5	60×60×1.5
1750	1000	20×20×1.0	40×40×1.5	60×60×1.5
2000	1000	20×20×1.0	40×40×1.5	80×80×2.0
1250	3000(2×1500)	20×20×1.0	40×40×1.5	60×60×1.5
1500	3000(2×1500)	20×20×1.0	40×40×1.5	60×60×1.5
1750	3000(2×1500)	20×20×1.0	40×40×1.5	80×80×2.0
2000	3000(2×1500)	20×20×1.0	40×40×1.5	80×80×2.0

PANEL GATE

HEIGHT(MM)	WIDTH(MM)	MESH(MM)	FRAME(MM)	GATE POST(MM)
1000	1000	200×50×8/6/8	40×40×1.5	60×60×1.5
1200	1000	200×50×8/6/8	40×40×1.5	60×60×1.5
1500	1000	200×50×8/6/8	40×40×1.5	60×60×1.5
1800	1000	200×50×8/6/8	40×40×1.5	60×60×1.5
2000	1000	200×50×8/6/8	40×40×1.5	60×60×1.5

INSTALLATION TIPS

Keep gate posts vertical

Ensure equal gap between gate leaf and post

Lubricate hinges regularly

Check gate alignment after concrete curing

Do not install the gate before the posts are fully stable

APPLICATION

Garden Gate is suitable for:

Residential garden entrances

Backyard access gates

Lawn fencing

Farm perimeter fencing

Animal enclosure gates

Vegetable garden fencing

Property boundary gates

Decorative yard fencing

FAQ

Q1: Can I get a custom size?

A: Yes, custom height, width, color and design are available based on your project requirements.

Q2: What is the main material?

A: The garden gate is mainly made of galvanized steel tube and welded wire mesh.

Q3: Does it include gate posts?

A: Normally, the garden gate can be supplied with matching gate posts. Please confirm this before ordering.

Q4: What colors are available?

A: Common colors include green, black and white. Custom colors are also available.

Q5: Is it suitable for outdoor use?

A: Yes, galvanized and powder coated finish makes it suitable for long-term outdoor use.
