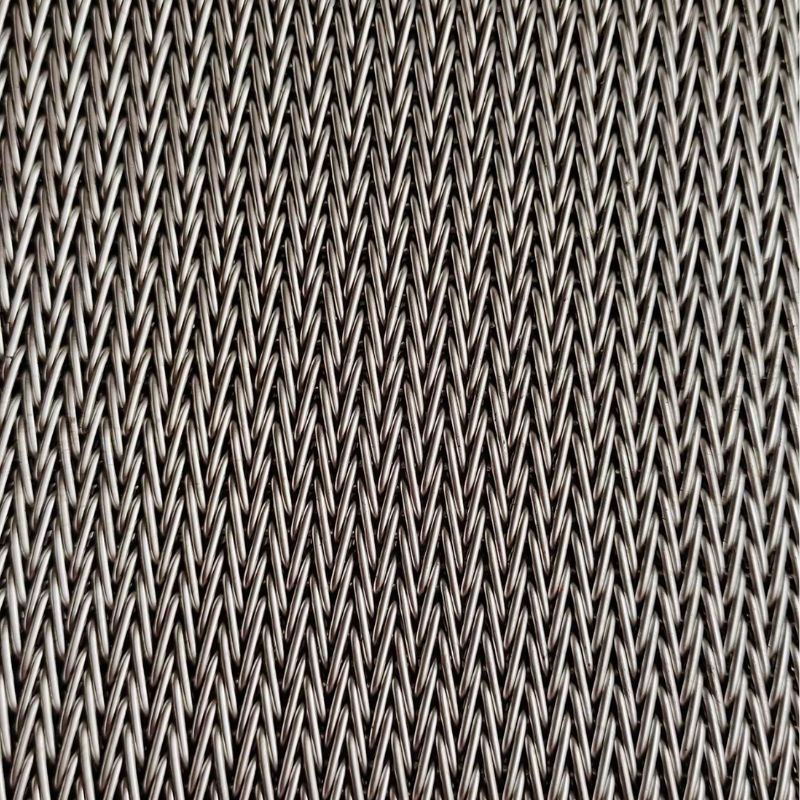

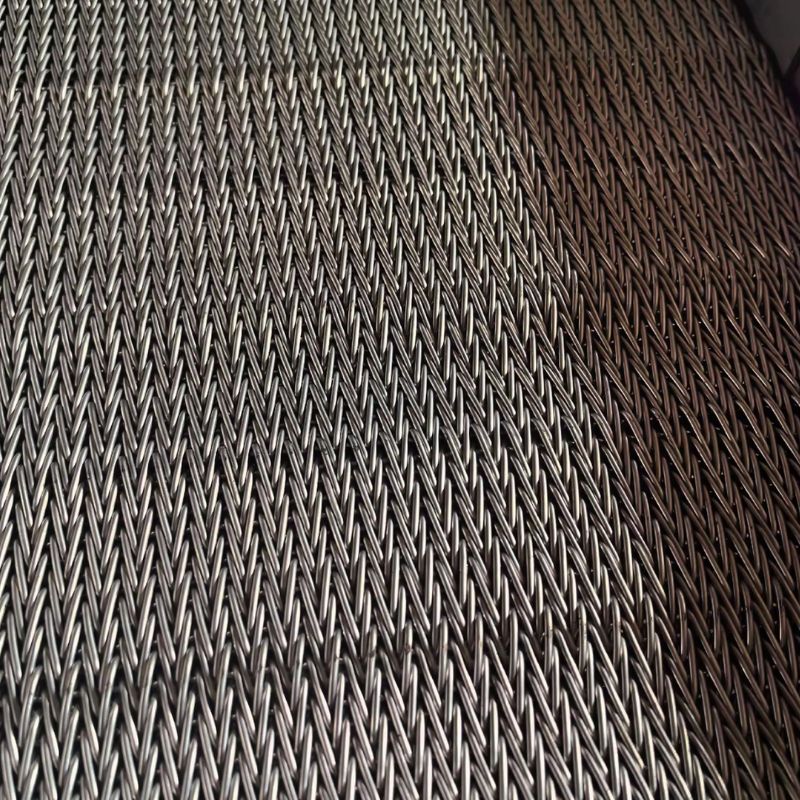

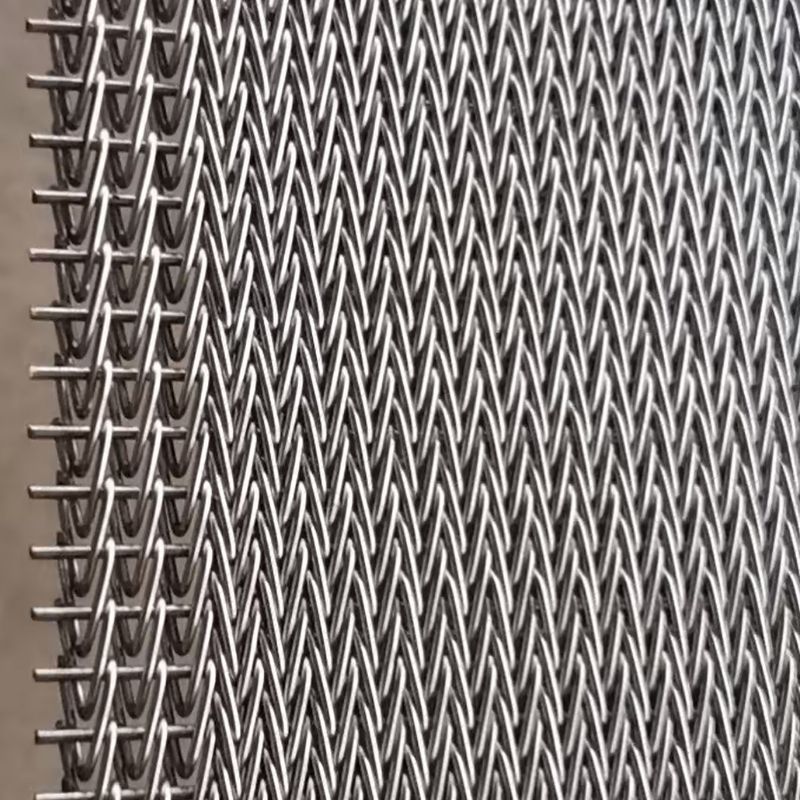

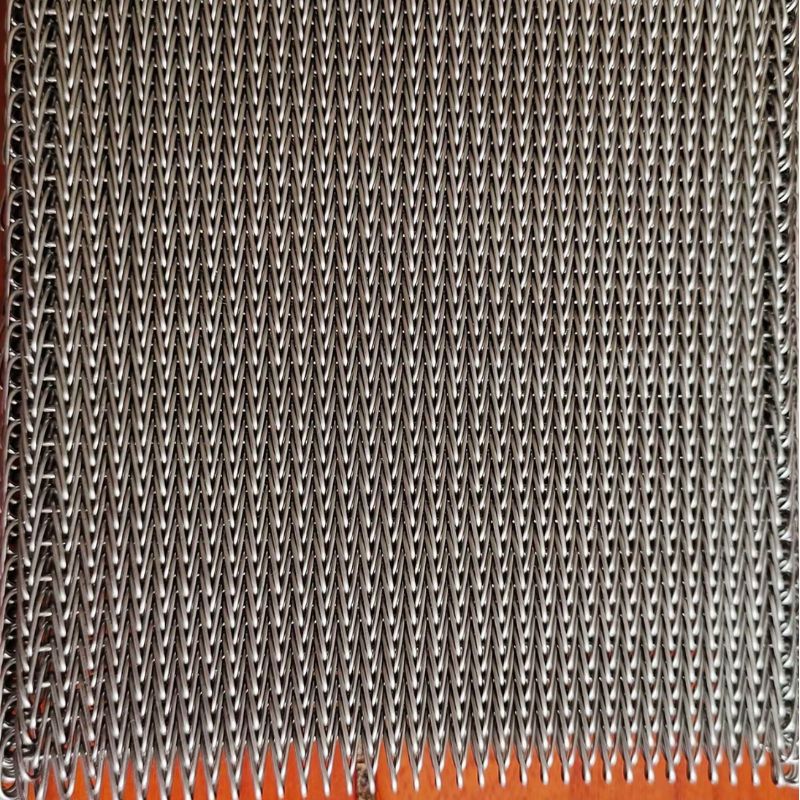

Compound Balanced Weave Belt
Compound Balanced Weave Conveyor Belt, also known as Cordweave Conveyor Belt or V-shaped Conveyor Belt, is a special dense double spiral mesh belt. When applied to cookie baking lines, it is named CB5 baking band.

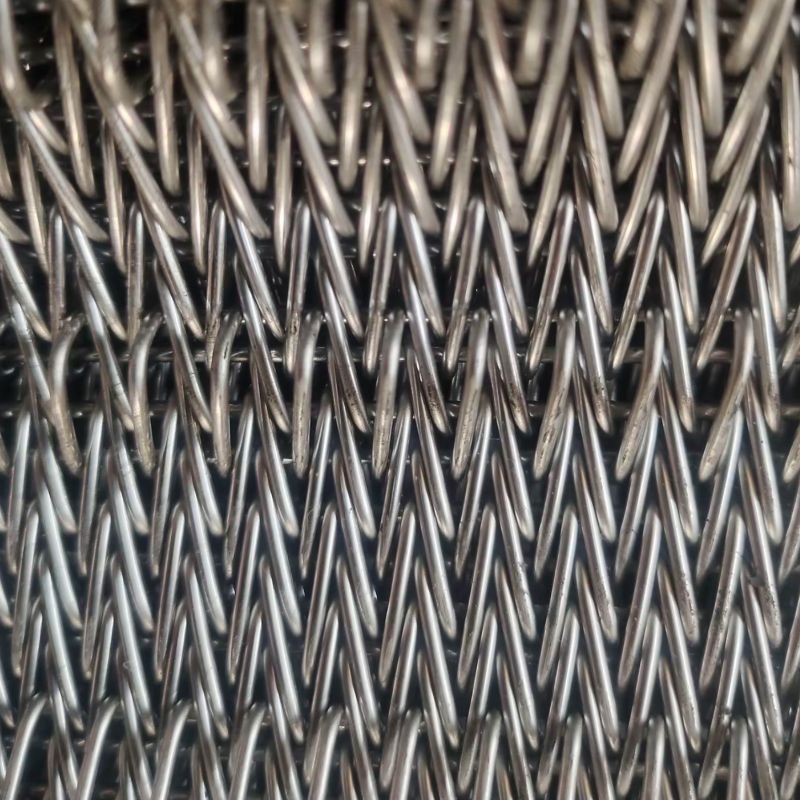

This belt adopts interlaced left-hand and right-hand helical coils connected by straight cross rods (crimped cross rods optional). The unique interlocking structure creates ultra-tight, compact mesh with closely nested spirals, effectively preventing tiny parts from falling through gaps.
Compared with standard balanced weave belts, cordweave belts feature flatter carrying surface, higher density, uniform heat conduction and superior tensile strength. It is widely adopted as baking bands in food industry and furnace mesh in heat treatment industry, also used as furnace curtains, powder metal sintering belts and electroplating transport belts.
MAIN MATERIALS & MAXIMUM OPERATING TEMPERATURE (°C)
MATERIAL | MAX WIRE OPERATING TEMPERATURE |
CARBON STEEL (40/45) | 550 |
GALVANIZED MILD STEEL | 400 |
CHROME MOLYBDENUM (3% CHROME) | 700 |
304 STAINLESS STEEL (1.4301) | 750 |
321 STAINLESS STEEL (1.4541) | 750 |
316 STAINLESS STEEL (1.4401) | 800 |
316L STAINLESS STEEL (1.4404) | 800 |
314 STAINLESS STEEL (1.4841) | 1120 |
37/18 NICKEL CHROME (1.4864) | 1120 |
80/20 NICKEL CHROME (2.4869) | 1150 |
310S STAINLESS STEEL (1.4845) | 1150 |
INCONEL 600 (2.4816) | 1150 |
INCONEL 601 (2.4851) | 1200 |
Custom alloy materials are available upon special working condition requests.
TECHNICAL PARAMETERS
PARAMETER | SPECIFICATION |
MATERIAL | STAINLESS STEEL, CARBON STEEL, GALVANIZED STEELS, HIGH TEMPERATURE ALLOYS |
COIL WIRE DIAMETER | ROUND WIRE: 0.70 – 2.80 MM; FLAT WIRE: 1.20 X 0.70 – 2.00 X 1.0 MM |
CROSS WIRE DIAMETER | 0.9 MM TO 3.5 MM |
COIL WIRE PITCH | 2.8 MM TO 12.5 MM |
CROSS WIRE PITCH | 4.0 MM TO 18 MM |
NUMBER OF TRANSVERSE WIRES PER PITCH | 2 TO 5, CUSTOMIZABLE |
WORKING TEMPERATURE | UP TO 1250 °C |
UNIVERSAL SPECIFICATION CODING TABLE

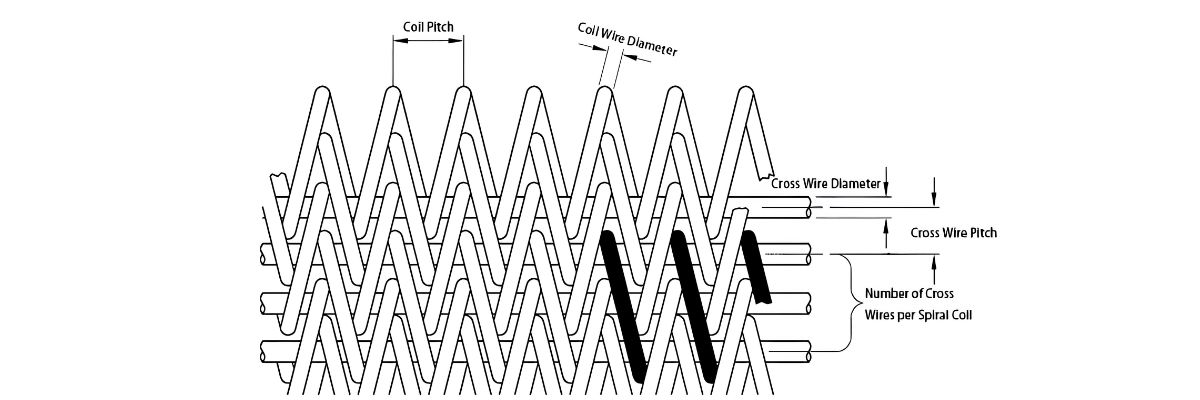

SPECIFICATION CODING | COIL PITCH (MM) | CROSS WIRE PITCH (MM) | CROSS WIRE DIA (MM) | COIL WIRE DIA. (MM) | NUMBER OF CROSS WIRES PER COIL |
CB3-5.08-3.05-1.22-1.22 | 5.08 | 3.05 | 1.22 | 1.22 | 3 |
CB4-11.7-6.5-3.0-2.6 | 11.7 | 6.5 | 3.0 | 2.6 | 4 |
CB4-10.5-5.7-2.6-2.3 | 10.5 | 5.7 | 2.6 | 2.3 | 4 |
CB4-9.0-5.0-2.3-2.0 | 9.0 | 5.0 | 2.3 | 2.0 | 4 |
CB4-7.2-4.0-1.8-1.6 | 7.2 | 4.0 | 1.8 | 1.6 | 4 |
CB4-6.5-3.8-1.8-1.4 | 6.5 | 3.8 | 1.8 | 1.4 | 4 |
CB4-5.5-2.8-1.4-1.2 | 5.5 | 2.8 | 1.4 | 1.2 | 4 |
CB4-4.5-2.3-1.2-1.0 | 4.5 | 2.3 | 1.2 | 1.0 | 4 |
CB4-3.7-2.1-1.2-0.8 | 3.7 | 2.1 | 1.2 | 0.8 | 4 |
CB5-8.71-3.39-1.63-1.3*1.3 | 8.71 | 3.39 | 1.63 | 1.6×1.3 | 5 |
NOTE: 1. If flat wire is required, please provide its full cross section size. 2. Fully custom specifications are available if no standard size meets your demands. | |||||

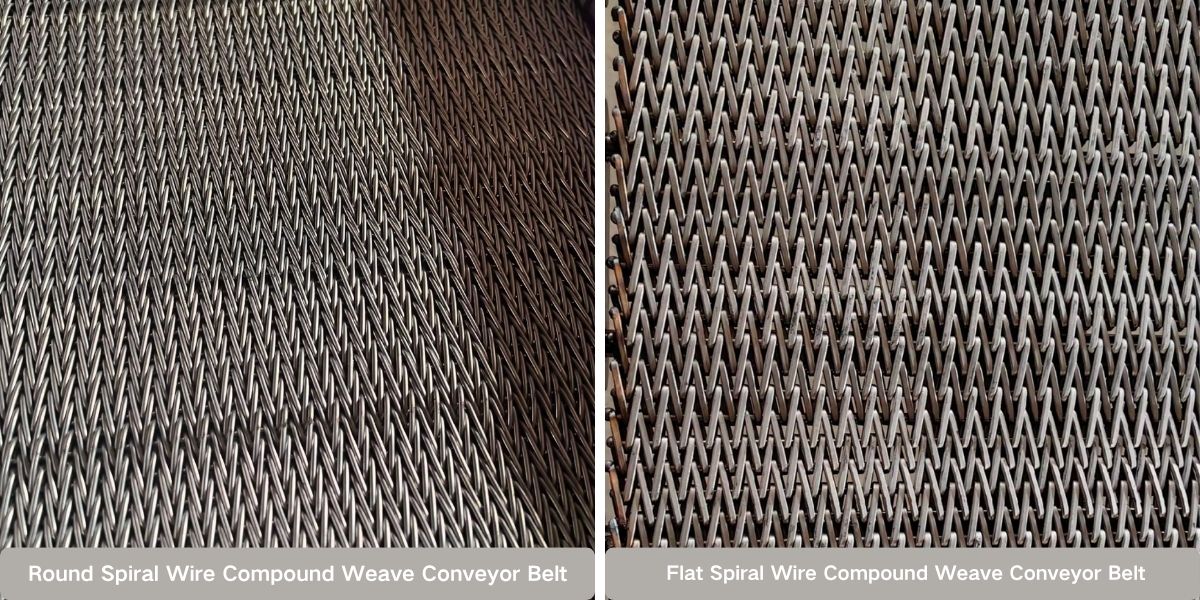

BELT TYPES
Round Spiral Wire Compound Weave Conveyor Belt
All coil wires and cross wires adopt round metal wire; high mesh density, good heat retention for high-temperature furnaces.
Flat Spiral Wire Compound Weave Conveyor Belt
Flat coil wire creates wider flat carrying surface, perfect for tiny products with small contact base.

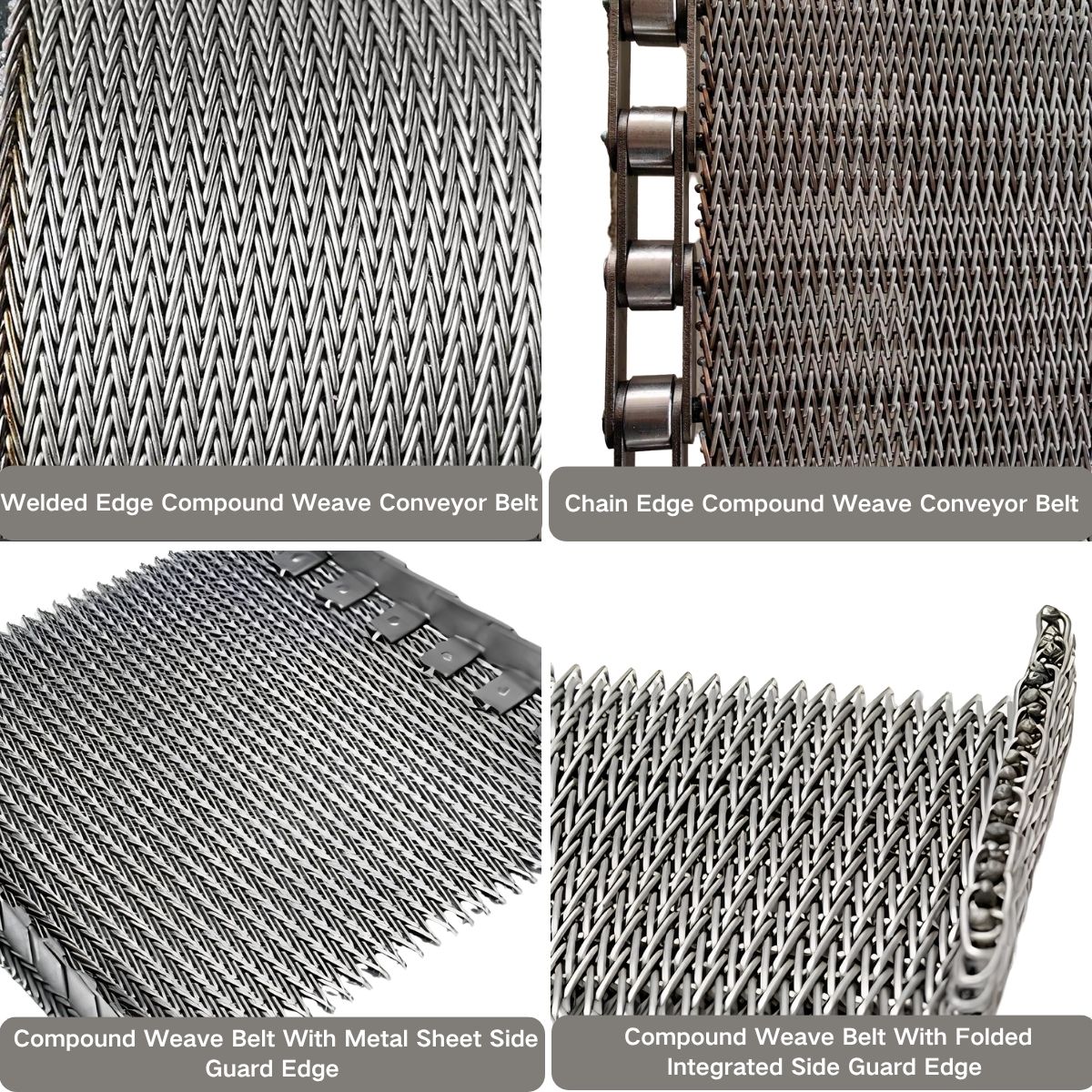

EDGE AVAILABILITY
Welded Edge Compound Weave Conveyor Belt
Standard economical edge treatment, tight mesh structure enables seamless welding without sharp wire ends.

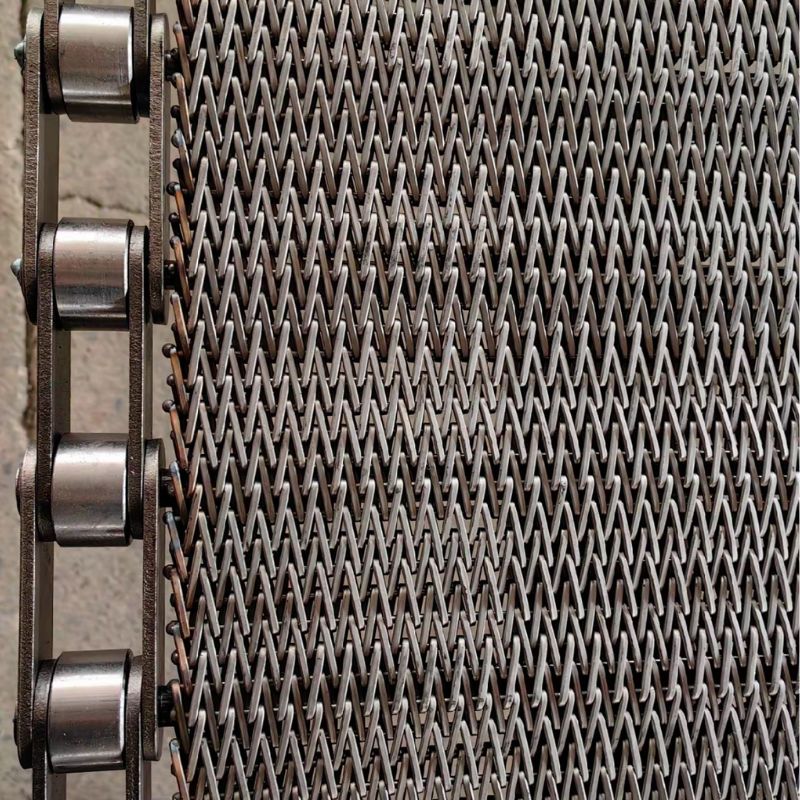

Chain Edge Compound Weave Conveyor Belt
Side driving chains mounted on cross rods, stable positive drive for long-distance heavy-load production lines.
Compound Weave Belt With Metal Sheet Side Guard Edge
Detachable metal baffle to prevent material falling off both sides.
Compound Weave Belt With Folded Integrated Side Guard Edge
Direct folded mesh edge as baffle, integrated structure, low cost.
ADVANTAGES
1. High-density tight mesh, small open area, no leakage for micro parts, powders and food crumbs. 2. Ultra-flat smooth carrying surface, no obvious marks on products, accurate stable transport.
2. Even & uniform heat transfer, ideal for baking, annealing and sintering process.
3. Outstanding high-temperature resistance, up to 1250°c with special alloy materials.
4. Strong resistance to acid, alkali, corrosion, abrasion & chemical media.
5. High tensile strength: multiple cross wires per pitch improve load-bearing capacity far beyond standard balanced weave belts.
7. Long service life: optimized interlock structure + premium raw materials reduce deformation and fracture.
APPLICATIONS
Food Industry
Baking band for biscuits, cookies, crackers, tortillas; vegetable washing, drying, cooling, quick freezing, salting, rice processing, pasteurization lines.
Heat Treat & Metallurgy Industry
Annealing furnace, hardening, tempering, quenching, powder metal sintering, small fastener heat treatment, furnace curtain, swarf conveying.
Other Industries
Electroplating, glass processing, electronic component conveying, chemical particle transport, lifting & lowering equipment.
Support & Service
We supply full one-stop service including compound balanced weave conveyor belt design, production, installation guidance, on-site commissioning, regular inspection and maintenance support. Contact us for custom drawings and free quotation.
