Airport Security Fence

AIRPORT PERIMETER FENCING | HIGH SECURITY ANTI-CLIMB AIRPORT FENCE SOLUTIONS

Airport perimeter fencing is the core of airport security defense and anti-terrorism systems globally. As a professional manufacturer and supplier with 20 years of industry experience, LantoMetal Fencing Systems focuses on the design, customization and supply of high-performance airport fencing and matching gate solutions. We keep optimizing product structures and upgrading security performance to provide reliable, durable and cost-effective perimeter protection solutions for various aviation venues.

Airport fence is a permanent physical isolation barrier specially built for aviation scenarios. It effectively deters and delays unauthorized personnel from invading airport restricted areas, delivers obvious visual warning effects, and fully complies with international airport safety and security standards. All LantoMetal airport fence products support the installation of warning signs to meet standardized security management requirements.

PRODUCT MATERIAL & ADVANTAGES

All LantoMetal airport perimeter fences are made of high-quality low-carbon steel, featuring excellent toughness, fracture resistance, anti-aging and anti-rust properties. We adopt dual surface treatment technologies including hot-dip galvanizing + polyester powder coating and hot-dip galvanizing + PVC coating, which greatly extend the service life and adapt to all kinds of complex outdoor weather environments.

All series of airport fences can be equipped with barbed wire and concertina razor wire on the top to further upgrade anti-intrusion and anti-climb performance, realizing all-round high-security protection for airport perimeters.

MAIN AIRPORT FENCE TYPES

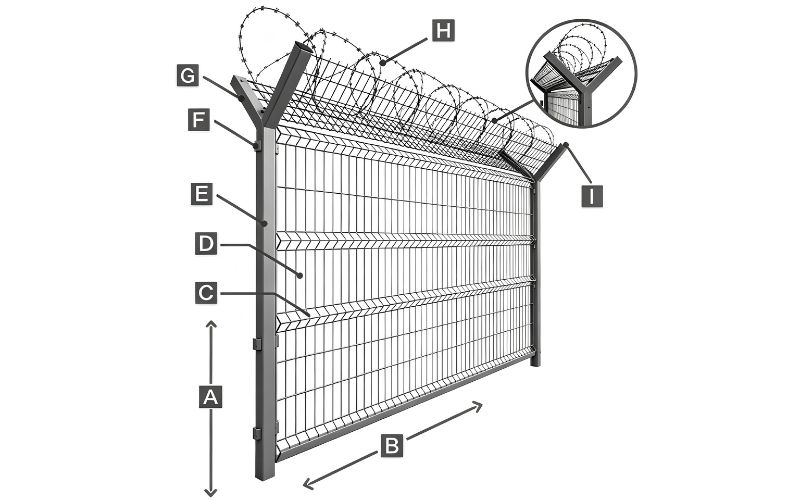

1. 3D WELDED WIRE PANEL AIRPORT FENCE

The 3D curved welded wire fence is a classic and cost-effective airport perimeter fence. With a rigid integrated welded structure, it has high overall stability and a long service life, which is an ideal upgraded alternative to traditional chain link fences.

The unique curved design of the mesh panels not only improves the three-dimensional aesthetic of the fence, but also significantly enhances anti-climb capability. Matched with barbed wire and razor wire toppings, it can effectively prevent illegal crossing and intrusion. This fence is widely applicable for conventional airport perimeter isolation due to its fast installation and neat appearance.

A:Height:1830 mm, 1930 mm, 2030 mm, 2230 mm, 2430 mm

B:Width:2000 mm, 2500 mm, 2900 mm

C:Wire Diameter:

3.0 mm, 3.5 mm, 4.0 mm, 4.5 mm, 5.0 mm，6mm

D:Mesh Opening:

50 × 100 mm, 50 × 150 mm, 50 × 200 mm, 75 × 100 mm, etc.

E:Post:

Round post (48 OD × 1.5/2.0 mm, 60 OD × 1.5/2.0 mm);

Square post (50 × 50 × 1.5/2.0 mm, 60 × 60 × 1.5/2.0 mm, 80 × 80 × 1.5/2.0 mm);

Rectangular post (40 × 60 × 1.5/2.0 mm, 40 × 80 × 1.5/2.0 mm, 60 × 80 × 1.5/2.0 mm, 80 × 100 × 1.5/2.0 mm);

"I " post (70*44mm,Double Quantity Clamps);

 Peach post (50*70mm & 70*100mm ,Self-lock Type);

F:Clamp:metal clamp / anti-UV plastic clamp / no clamp (for peach post)

G:Double Arm Support: Bolts & Nuts, Welded

H:Razor Wire : Dia 500mm BTO-22

I: Post Cap : Metal Cap / Anti-UV Plastic Cap

SURFACE TREATMENT(ANTI-RUST TREATMENT):

1. Electric Galvanized(8-12g/m²) + Polyester Powder Coated (All colors in Ral)

2. Electric Galvanized(8-12g/m²) + PVC Coated

3. Hot Dipped galvanized(40-60g/m²) + Polyester Powder Coated (All colors in Ral)

4. Hot Dipped galvanized(40-60g/m²) + PVC Coated

5. Hot Dipped Galvanized after welding (505g/m²)

6. Galfan(200g/m²) + Polyester Powder Coated (All colors in Ral)

7. Galfan(200g/m²) + PVC Coated

Made of galvanized steel wire with exclusive architectural-grade powder coating.

Ultra-durable and eco-friendly, featuring top-tier UV & weather resistance and long-lasting gloss—its service life is 3x longer than competitors’ coatings..

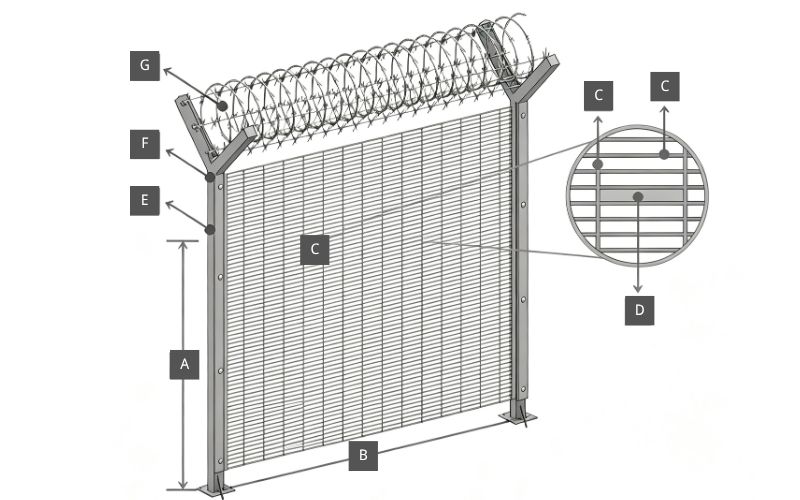

2. 358 ANTI-CLIMB HIGH SECURITY FENCE

358 security fence is recognized as the highest-grade perimeter protection fence for high-security airport scenarios. Adopting extra-thick steel wires and ultra-fine dense mesh openings, it achieves superior anti-cut, anti-pry and anti-climb performance, leaving no blind spots for illegal intrusion.

Though the 358 fence has a higher cost than other airport fencing products, its top-tier security performance fully matches the safety needs of airport core restricted areas. It can be equipped with barbed wire, razor wire, wall spikes and other anti-intrusion accessories, which is the preferred solution for high-risk and high-security aviation zones.

A:Height:1200–2500 mm

B:Width:2000–3100 mm

C:Wire Diameter:3.0mm/4.0mm / 4.5mm / 5.0mm

358 fence=3" × 0.5" ×8 gauge wire(4.0mm)

3510 fence=3" × 0.5" ×10 gauge wire(3.1mm)

Thicker wire can offer stronger rigid

D:Mesh Opening:

specifications and advantages in detail:

THREE STANDARD MESH SIZE OPTIONS

Mesh aperture directly determines security level, structural strength and visual transparency. We provide three grades for different budget and safety demands:

1.Premium High-Security Mesh: 76.2mm × 12.7mm

The smallest opening with superior anti-cut and anti-climb performance, offering the strongest site protection. Though the unit cost is slightly higher, it delivers maximum security effect and remains the best-selling choice for most customers.

2.Econo Medium-Security Mesh: 76.2mm × 25mm

Medium-sized aperture with balanced safety and cost, suitable for general industrial and commercial perimeter projects with moderate security requirements.

3.Basic Low-Security Mesh: 75mm × 50mm

Larger holes for enhanced see-through effect at a lower price point, perfect for clients with limited budgets and low anti-intrusion standards.

E:Post:

Square post (60 × 60 × 2.0/2.5/3.0 mm, 80 × 80 × 2.0/2.5/3.0 mm);

Rectangular post (40 × 60 × 2.0/2.5/3.0 mm, 40 × 80 × 2.0/2.5/3.0 mm, 60 × 80 × 2.0/2.5/3.0 mm, 80 × 100 × 2.0/2.5/3.0 mm)

Round post: φ60mm

"I " post: 70*44mm

IPE post:100*55mm

F:Double Arm Support: Bolts & Nuts, Welded

G:Razor Wire : Dia 500mm BTO-22

SURFACE TREATMENT(ANTI-RUST TREATMENT):

1. Electric Galvanized(8-12g/m²) + Polyester Powder Coated (All colors in Ral)

2. Electric Galvanized(8-12g/m²) + PVC Coated

3. Hot Dipped galvanized(40-60g/m²) + Polyester Powder Coated (All colors in Ral)

4. Hot Dipped galvanized(40-60g/m²) + PVC Coated

5. Hot Dipped Galvanized after welding (505g/m²)

6. Galfan(200g/m²) + Polyester Powder Coated (All colors in Ral)

7. Galfan(200g/m²) + PVC Coated

Made of galvanized steel wire with exclusive architectural-grade powder coating.

Ultra-durable and eco-friendly, featuring top-tier UV & weather resistance and long-lasting gloss—its service life is 3x longer than competitors’ coatings.

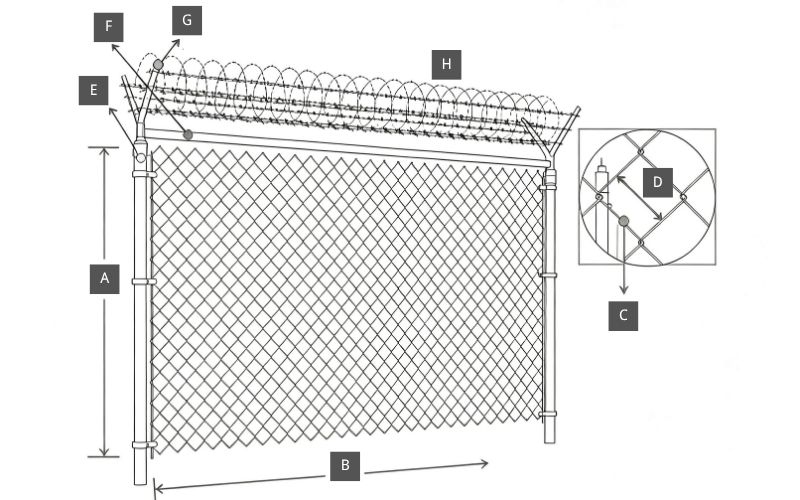

3,CHAIN LINK AIRPORT FENCE

Chain link fence is the most economical and practical physical barrier for airport airside protection. It features low maintenance costs and high light transmittance, providing a clear field of vision for daily security patrols and monitoring work.

This fence has strong environmental adaptability, with multiple customizable specifications to adapt to various terrain and weather conditions. Equipped with razor wire and barbed wire toppings, it can meet the basic to medium security protection needs of airport perimeter, parking areas and auxiliary areas.

Material:galvanized & PVC chain link fence

A:Roll Height: 1200mm / 1500mm / 1800mm / 2000mm / 2400mm / 2800mm / 3000mm

B:Roll Length: 9m / 10m / 15m / 18m / 20m / 25m / 30m

C:Wire Diameter: 2.5 mm / 3.0 mm / 3.5 mm / 4.0 mm / 4.5 mm

D:Mesh Size: 40 × 40 mm, 50 × 50 mm, 60 × 60 mm, 75 × 75 mm, 100 × 100 mm

E:Round post size: ɸ40 mm, ɸ48 mm, ɸ60 mm, ɸ75 mm

Round post thickness: 1.5 mm / 1.8 mm / 2.0 mm / 2.5 mm

F:Rails: round pipes, ɸ32 mm, ɸ40 mm, ɸ48 mm

Accessories: Barb arms, razor wires, barbed wires

FEATURES

Cost-Effective: Moderate budget, suitable for large-area airport perimeter deployment

High Visibility: Transparent mesh design, convenient for security inspection and monitoring

Super Durability: Professional anti-rust surface treatment, anti-aging, long service life

Efficient Installation: Modular design, simple assembly, fast construction

Customizable: Support customized size, color, structure and security accessories

High Security: Multiple anti-climb and anti-intrusion designs to meet aviation security standards

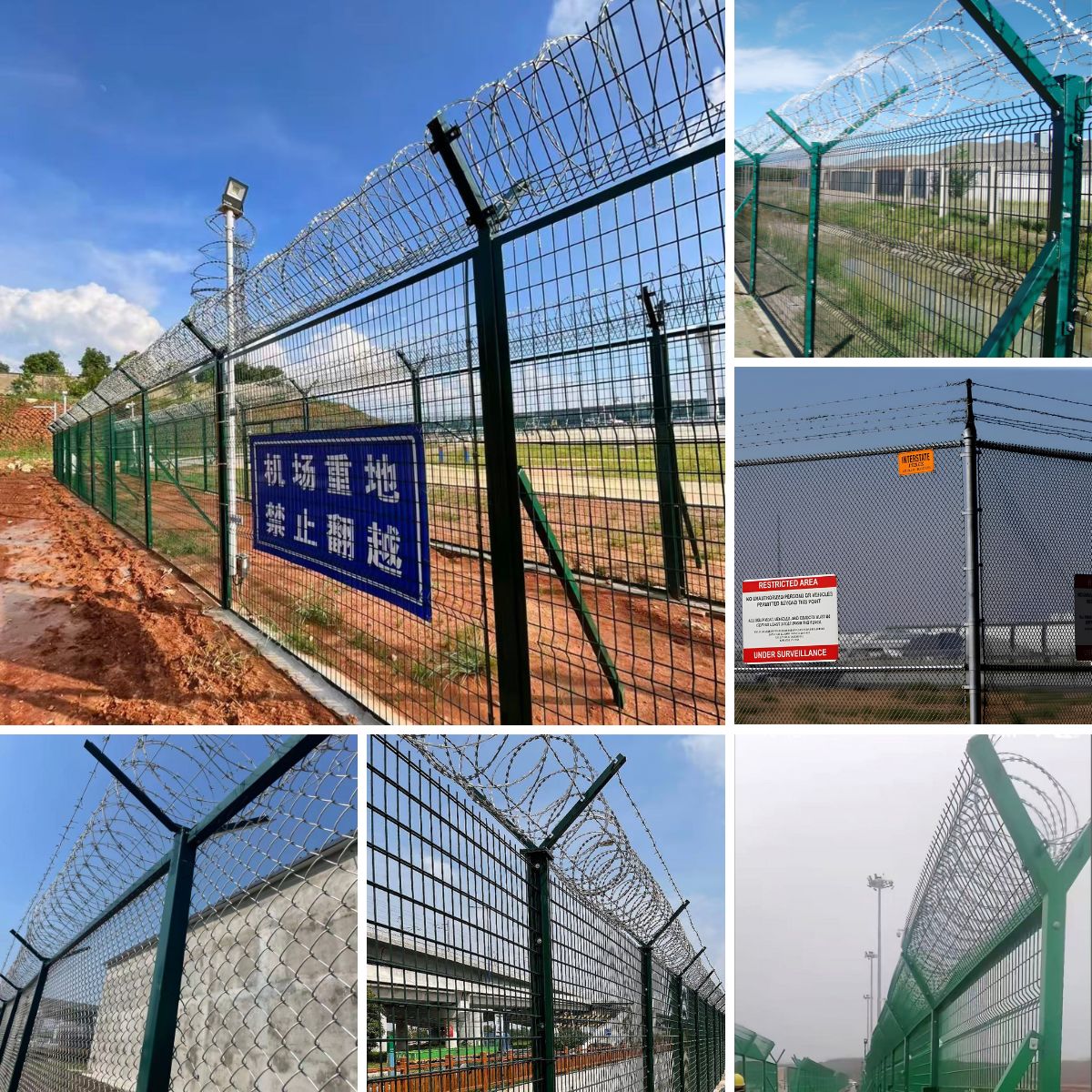

APPLICATION

LantoMetal high-security airport fencing solutions are widely used in various aviation and military airfield scenarios, with stable performance verified by global engineering projects:

International and domestic civil airports

Military airbases

Private airfields and heliports

Airport runways, cargo zones and parking areas

Aviation material storage and high-security restricted areas
