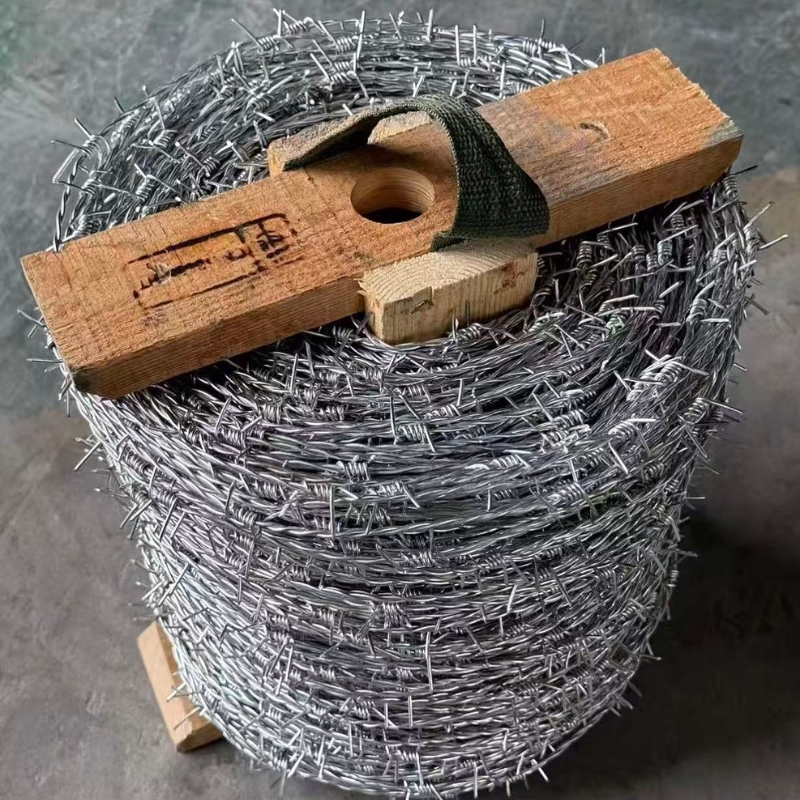

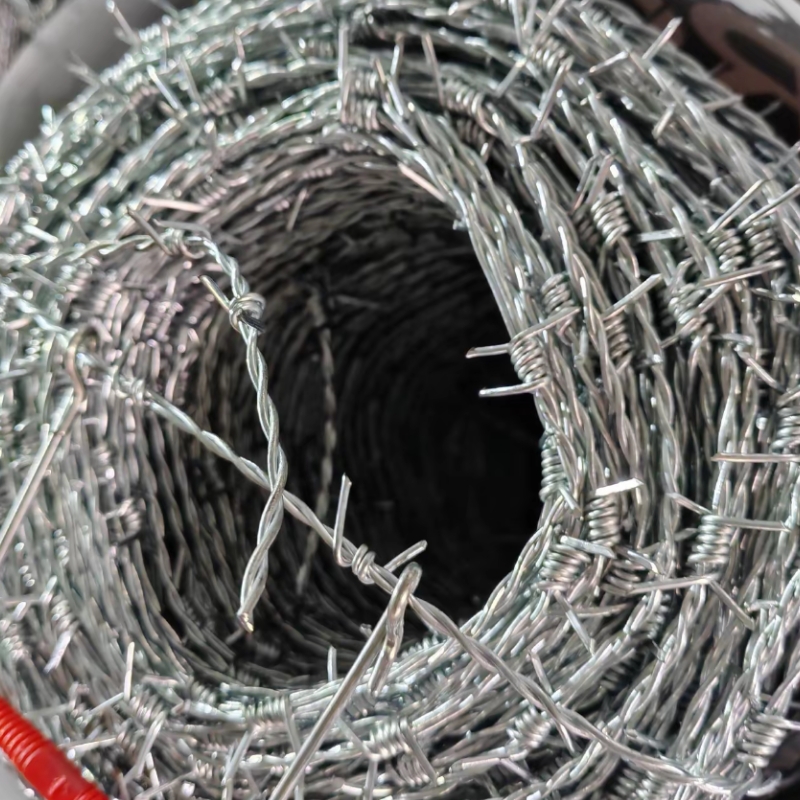

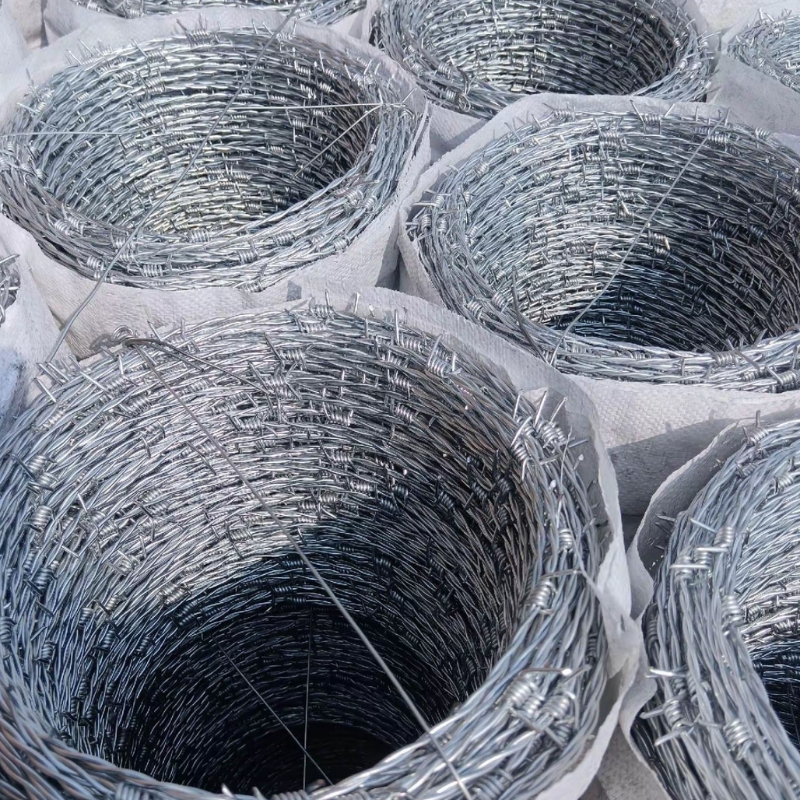

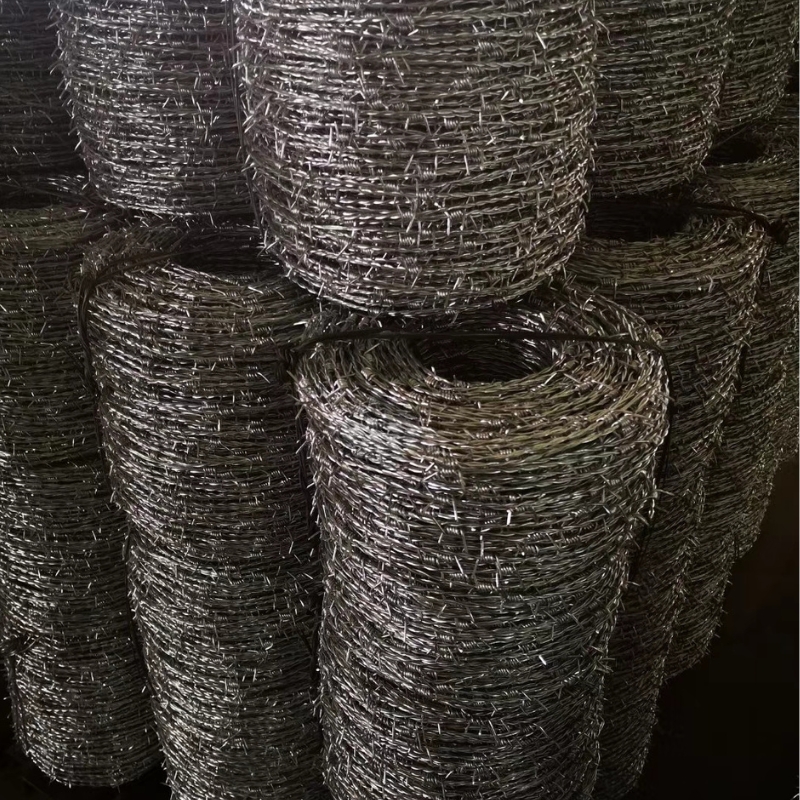

Galvanized Barbed Wire

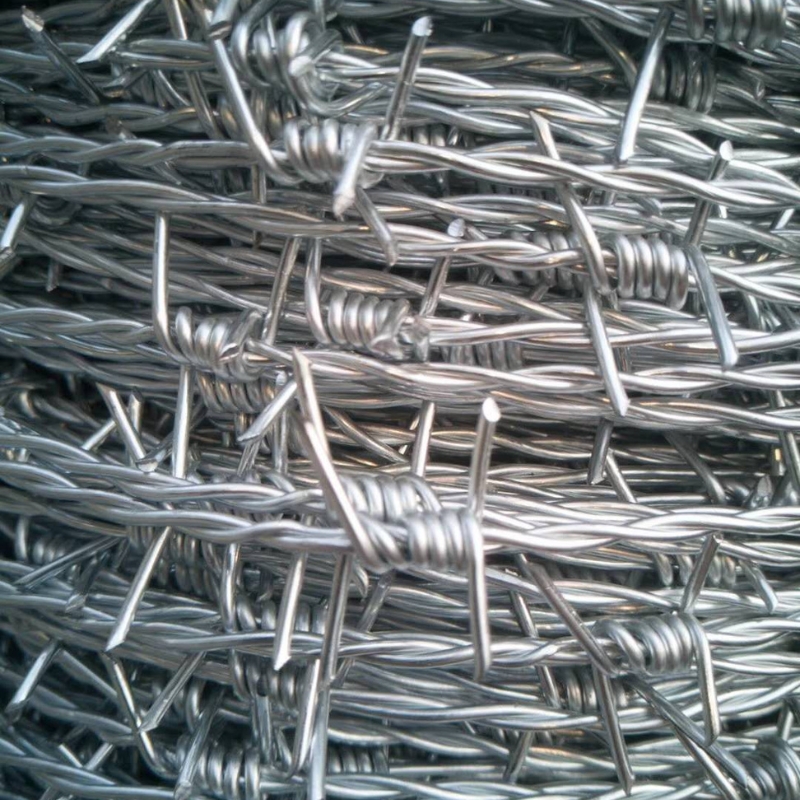

Barbed wire is used for various security fencing and barriers. It can be laid directly on the ground, mounted on the top of fence or in rows as an independent barrier. Galvanized barbwire prevents rusting and corrosion. , barbed wire has a zinc coating. The barbed wire consists of barb wire and line wire. The wire diameter of line wire is larger. The line wire can have one wire or two wires. The barb wires are braided with a system of constant torsion around line wire. One barb wire forms two spikes and two pieces of wire-four spikes. The sharpened spikes are protective elements of barbed wire.

Using the two twisted line wires can improve the quality of fastening studs and prevent the displacement along the wire. On a single strand barbed wire, in order to avoid spikes rotate around horizontal wire, the horizontal wire is made by corrugations and its cross section is not circular.

Whether you need to secure a perimeter, protect livestock, or enhance the security of your property, the 4 Point Galvanized Barbed Wire is the ideal choice. Trust in its reliability and strength to provide long-lasting security for your fencing needs.

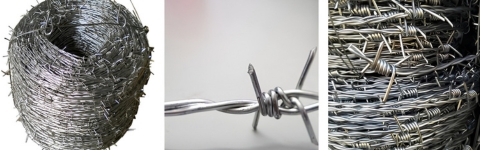

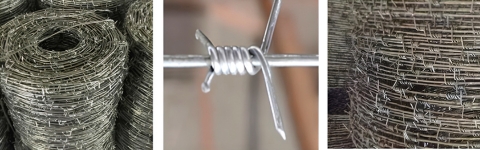

            Galvanized barbed wire (single twist)                                   Galvanized barbed wire (double twist)

Galvanized single strand barbed wire size:

· Made of single line wire with 4 barbs, spaced at a distance of 70 mm - 120 mm.

· Horizontal line wire diameter 2.8 mm.

· Barb wire diameter 2.0 mm.

· Number of spikes 4.

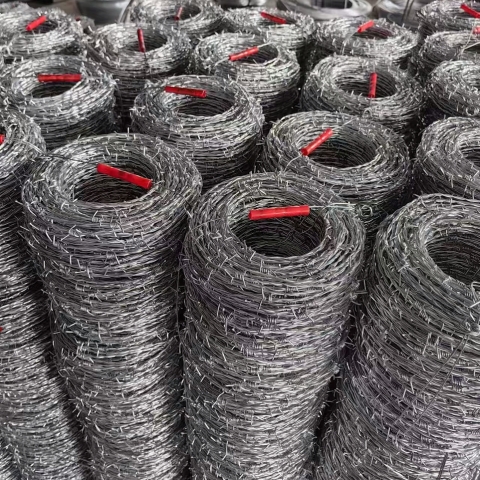

· Coil packaging options: 25-45 kg/coil, or 100 m, 500 m/coil.

Galvanized barbed wire with double strand size:

· Made of double twisted line wires with 4 barbed, spikes spaced at a distance of 75 mm - 100 mm.

· Horizontal wire barbed wire diameter 2.5 mm/1.70 mm.

· Barb wire diameter 2.0 mm/1.50 mm.

· Strength of horizontal line wire: min. 1150 N/mm2 .

· Strength of barb wire: 700/900 N/mm2.

· Stranded wire breaking load: min. 4230 N.

· Coil packaging options: 20-50 kg/coil or 50 m - 400 m/coil.

General Use:

Galvanized barbed wire is a kind of modern security fencing materials fabricated with high-tensile wire. Galvanized barbed wire can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult.

Military, prison and government security fences

Cattle & livestock fencing

Farmland protection

Crop protection

Home and business security fencing aid

Specification

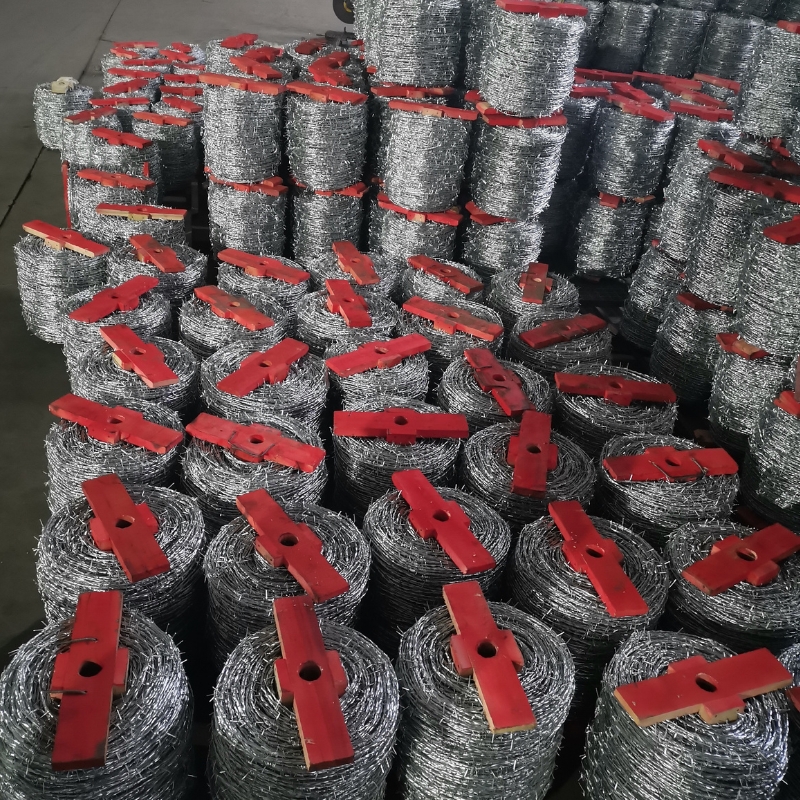

Packaging & Delivery

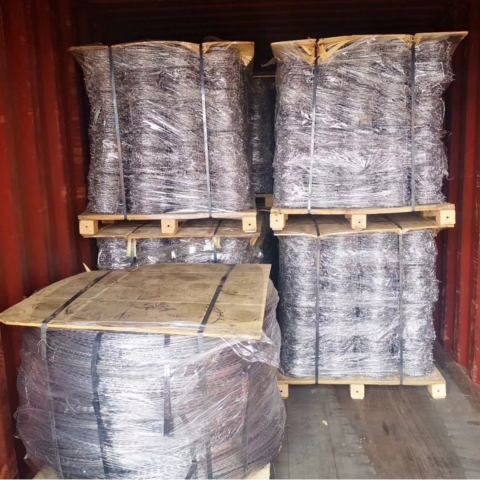

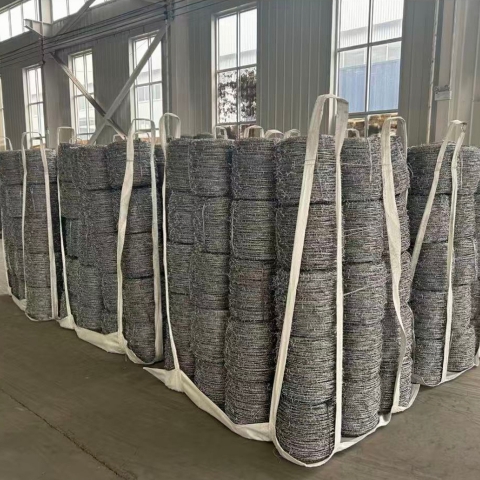

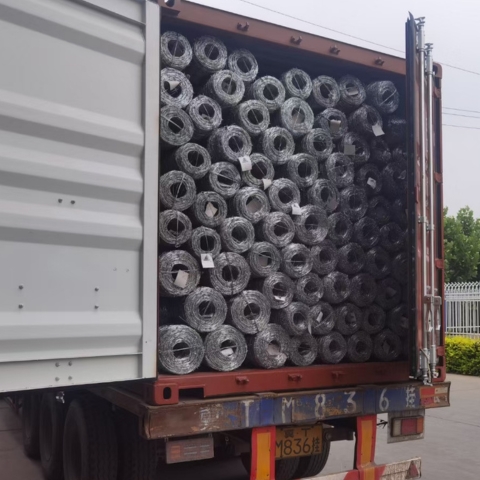

           Galvanized Barbed Wire Jumbo Bag Pack                                    Barbed Wire Pallet Export Pack
