Concertina Barbed Wire

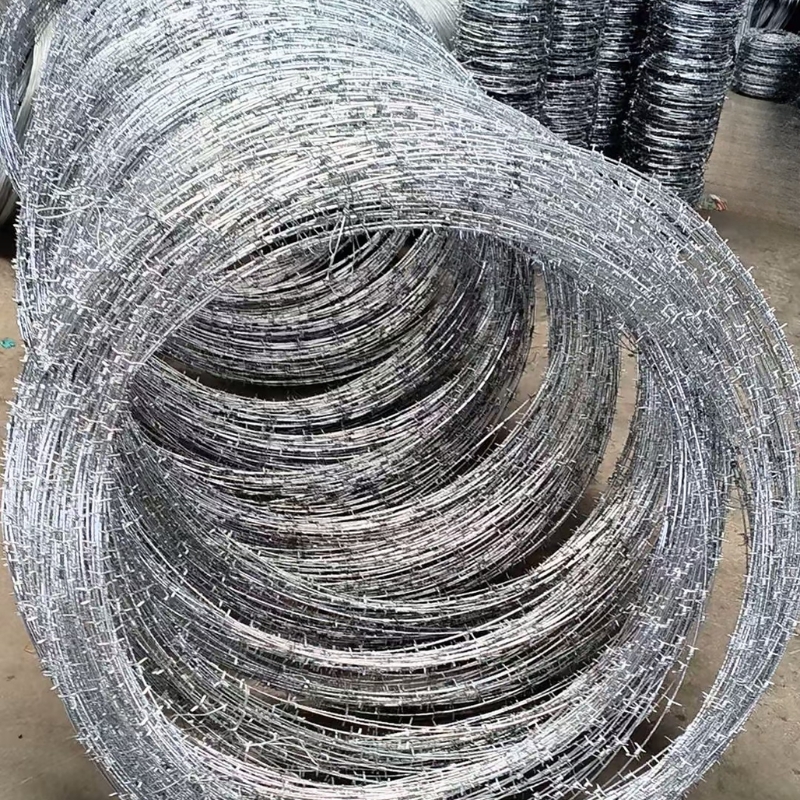

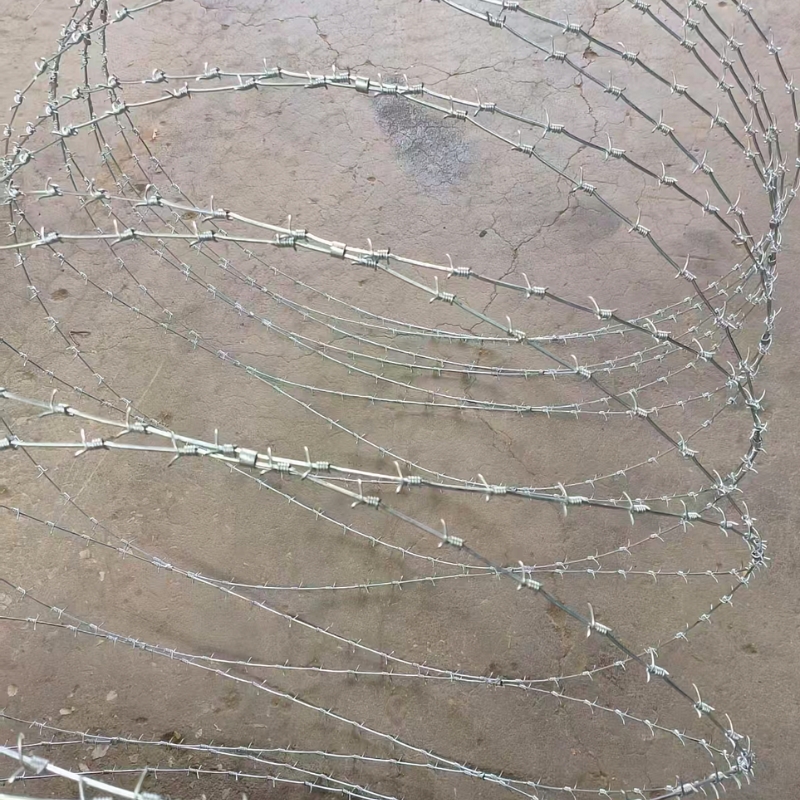

Concertina barbed wire, also known as barbed wire concertina.
Concertina barbed wire is also a type of barbed wire, it is made of single-strand wire with many small protrusions on the surface which is connected with clips and each twist barb has four spikes.
Compared with double strand barbed wire, it has the characteristics of simple structure, lightweight, sharp and strong.
The same as concertina razor wire, concertina barbed wire is also widely used on top of the existing fences or solid walls, in ditches on the roof of tops or by itself on the ground of border, emergence events or military activities.Also Concertina barbed wire can be attached to almost all kinds of wire mesh fencing, such as chain link fence, welded wire fence, palisade fence or expanded metal fence,to enhance overall security protection.
Applications of Concertina Barbed Wire
◆ Military Fencing
◆ Border Security Fencing
◆ Prison Fencing
◆ Industrial Perimeter Fencing
◆ Airport Security Fencing
◆ Warehouse Restricted-Area Fencing
◆ Residential & Commercial Fencing
◆ Emergency Security Fencing
◆ Railway Fencing
◆ Highway Fencing
Specifications of concertina barbed wire
Line Wire
◆ Material: steel wire or stainless steel wire
◆ Round Wire diameter: 3.0 mm ± 0.05 mm
◆ Tensile strength: 1235 N/m2
◆ Galvanization: 275 g/m2
Barb Spikes Wire
◆ Material: iron wire
◆ Wire diameter: 2.0 mm ± 0.05 mm
◆ Tensile strength: 350 N/m2
◆ Length of barbs: 13 mm – 20 mm
◆ Distance between barbs: 60 mm ± 16 mm
◆ Galvanization: 240 g/m2
ITEM | COIL DIAMETER BEFORE STRETCHING (MM) | COIL DIAMETER AFTER STRETCHING (MM) | SPIRAL TURNS PER COIL | CLIPS PER SPIRAL |
CBWLT-01 | 300 | 260 | 33 | 3 |
CBWLT-02 | 450 | 400 | 54 or 55 | 3 |
CBWLT-03 | 730 | 600 | 54 or 55 | 3 |
CBWLT-04 | 730 | 620 | 54 or 55 | 5 |
CBWLT-05 | 980 | 820 | 54 or 55 | 5 |
CBWLT-06 | 980 | 850 | 54 or 55 | 7 |
CBWLT-07 | 1250 | 1150 | 54 or 55 | 9 |

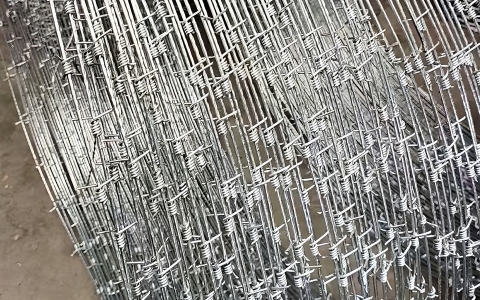

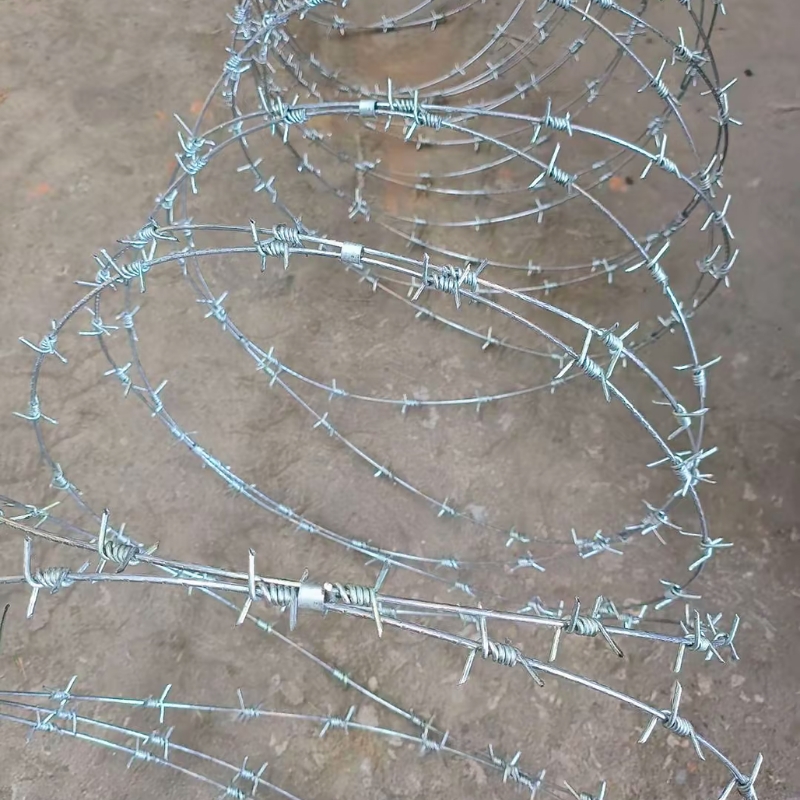

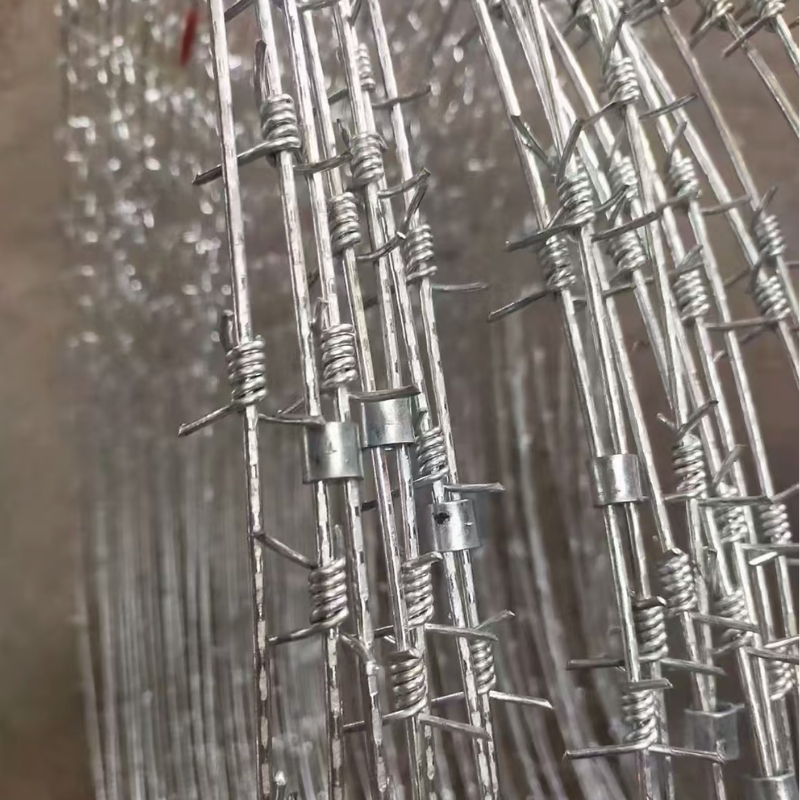

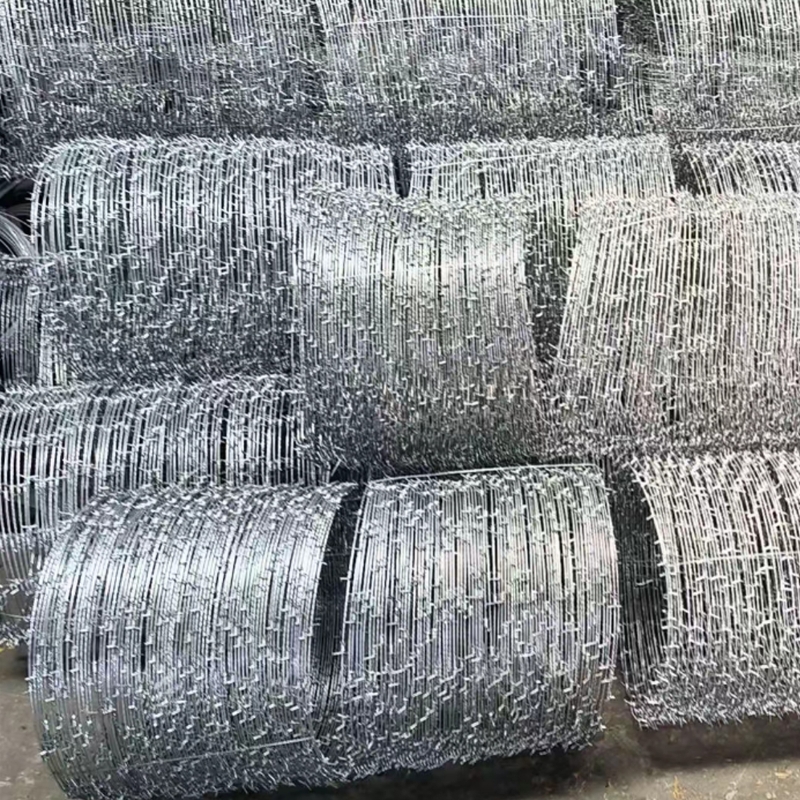

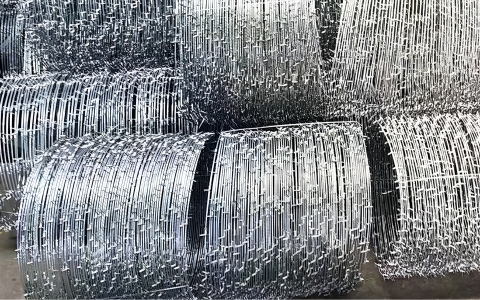

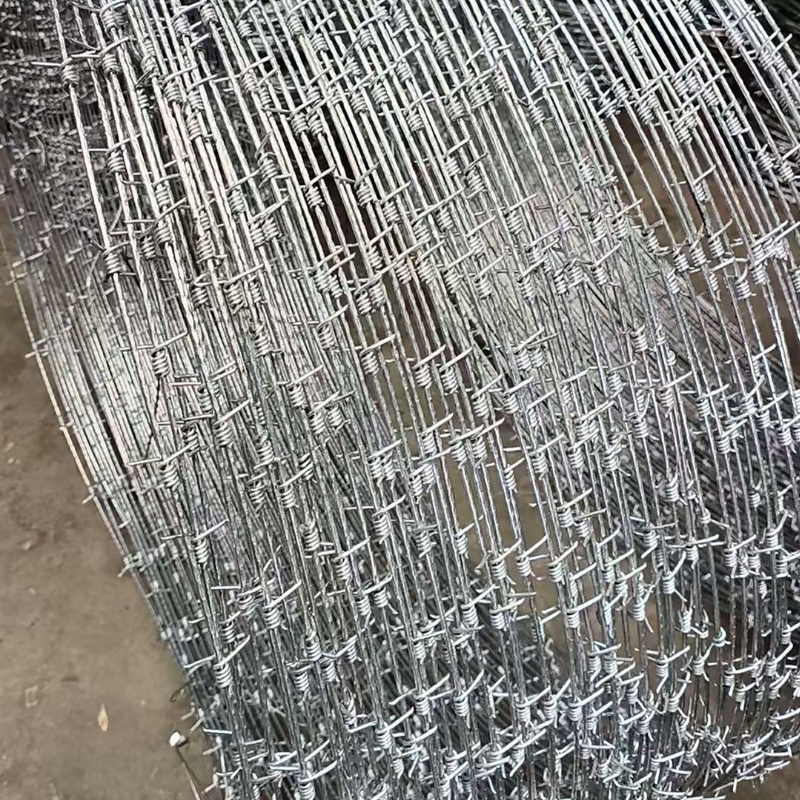

Concertina Barbed Wire with Four Spikes And Clips Concertina Barbed Wire Packed in Workshop

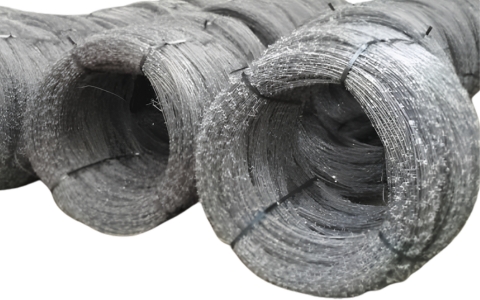

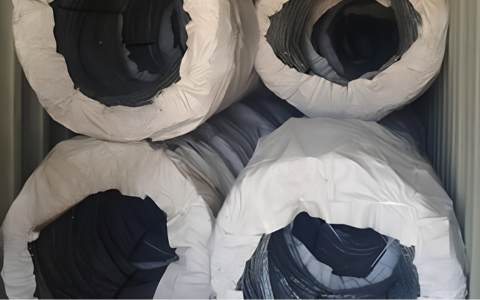

Barbed Concertina Wire Packed with Strip Concertina Barbed Wire Wrapped with White PP Woven Bag
Features of Concertina Barbed Wire
◆ Sharp four-point barbs strongly deter trespassers, intruders and thieves
◆ Ultra-high tensile strength prevents manual cutting and violent destruction
◆ Corrosion and rust resistance.
◆ Flexible matching with all fence styles to upgrade security levels
◆ Customized powder coating colors available to match project requirements
◆ Fast installation and effortless disassembly
Packaging of Concertina Barbed Wire
The barbed concertina wire will be packed with strip then wrapped with PP woven bags. Custom packaging solutions,labeling are available upon customer request.
