Steel Grating

LantoMetal's wide range of steel bar grating each designed to solve specific needs such as load-bearing, anti-slip safety, drainage efficiency, and corrosion resistance, providing durable and cost-effective solutions for global applications.

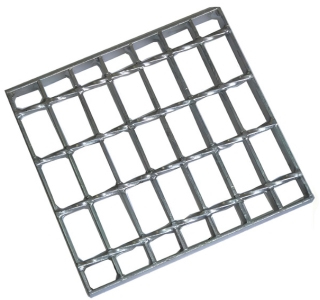

Steel Grating is a structural element that has a high load-bearing capacity with a low dead weight and a high level of transparency. The positive-fitting connection of the bearing bars and cross bars with the surround make the grating not only a very stable, but also visually attractive product.

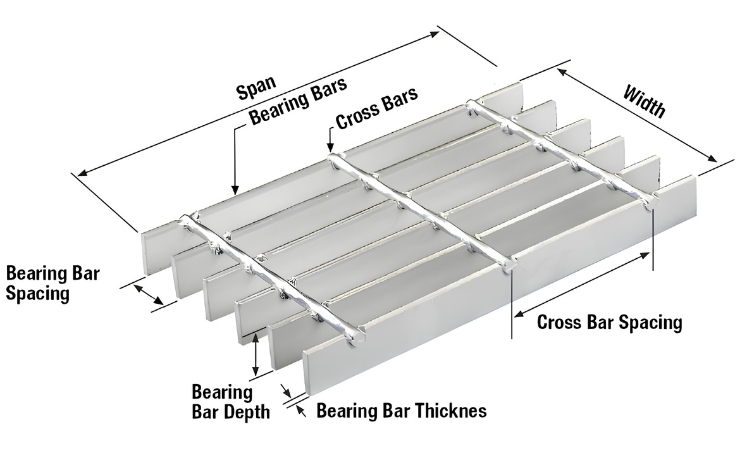

Specifications

Bearing Bars - Load carrying, span of grating

Cross Bars - Connecting bars, runs along width of grating

Widths - Overall dimension measured perpendicular to bearing bars

Span - Distance running along direction of bearing bars

Applications

• Industrial Flooring • Walkways • Bridge Decks • Trenches • Steel Mills • Warehouses • Chemical Plants • Water Treatment Plants • Power Plants • Oil Refineries • Agricultural Facilities

Raw Materials

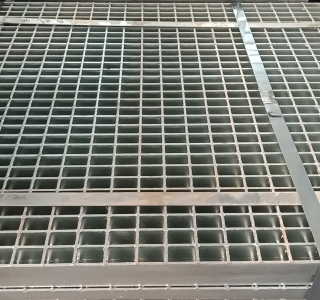

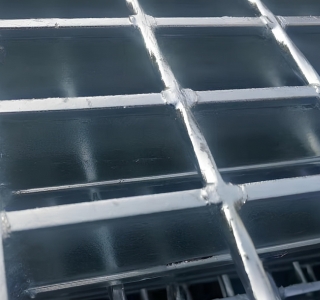

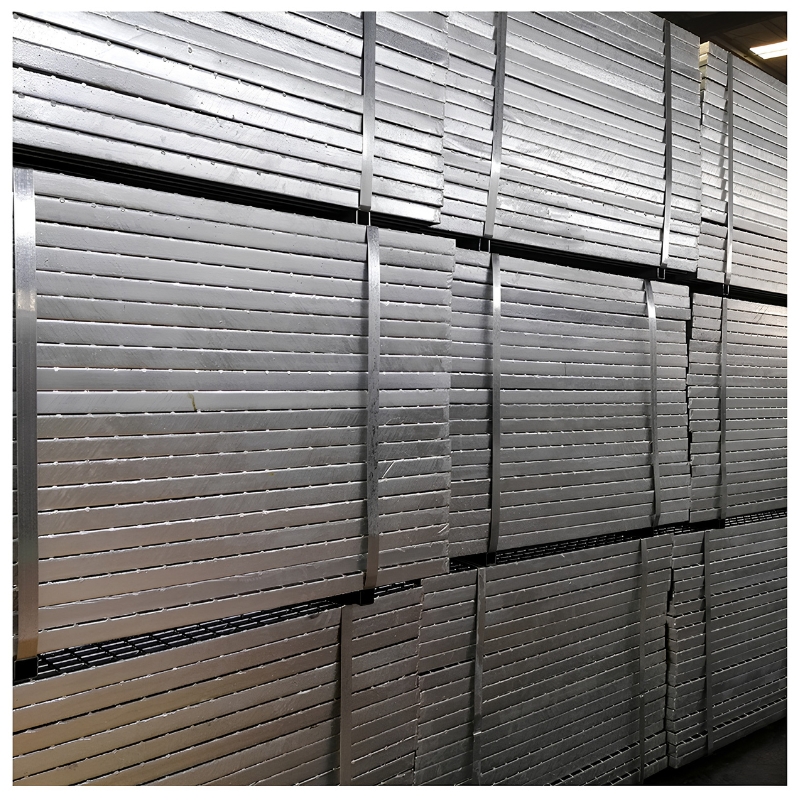

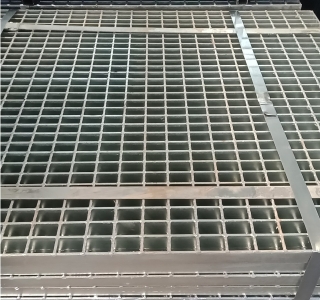

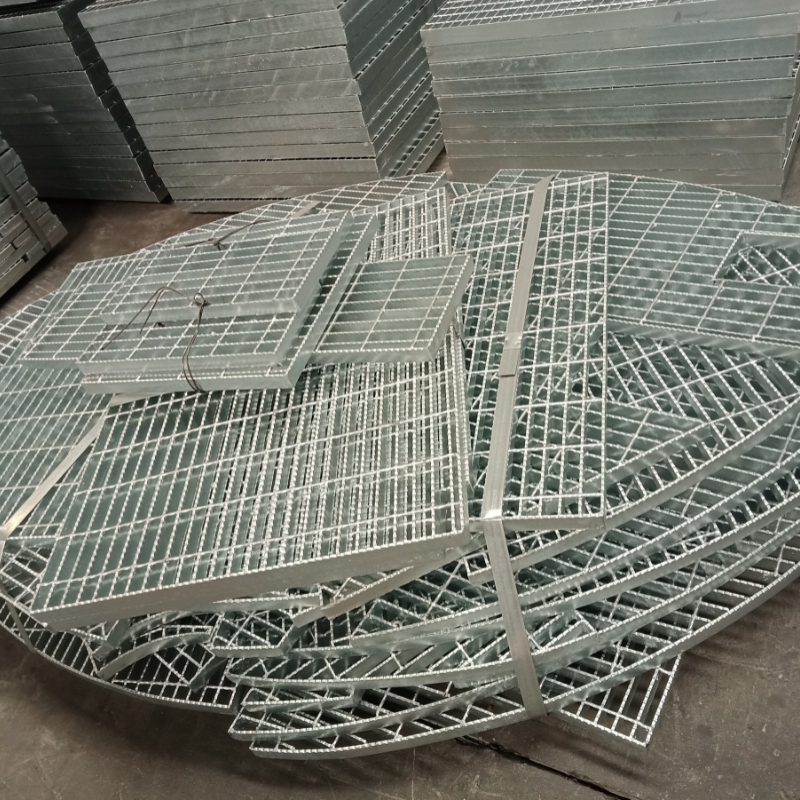

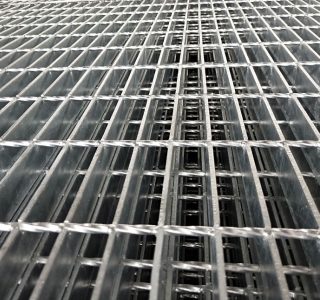

1.Galvanized Steel Grating

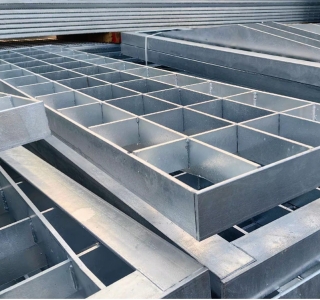

Galvanized grating, also known as galvanized steel grating ，metal bar grating or galvanized steel bar grating, refers to the steel bar grating made of mild carbon steel with hot dipped galvanized surface treatment.

              Galvanized Grating                                  Non-Galvanized Steel Grating                             Serrated Bar Grating

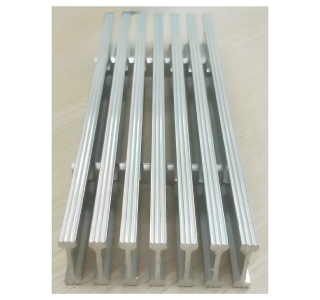

2.Aluminum Grating
Aluminum Bar Grating, also known as Swagged Aluminum Bar Grate, is lightweight, robust and durable. Manufactured from ASTM B221 6063 or 6061 aluminum alloy,,it is suitable for all load-bearing applications requiring superior corrosion resistance and weather resistance.

  Swaged I Bar Aluminum Grating          Serrated Swaged Aluminum Grating      Dovetail Pressure Locked Aluminum Grating

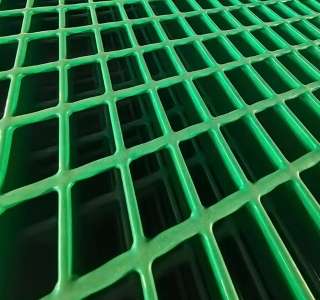

3.Painted Steel Bar Grating

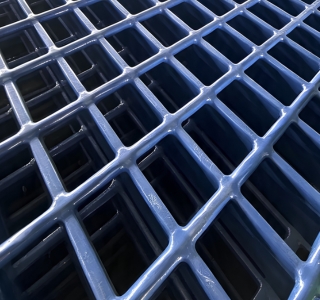

Our painted steel bar grating is coated with protective paint to avoid steel oxidation and offers multiple colors. Low cost with moderate anti-rust performance, perfect for industrial & construction projects with ordinary corrosion requirements. LantoMetal supplies reliable steel gratings worldwide.

                    Blue Painted                                                   Gray Painted                                                     Green Painted

4.Stainless Steel Grating

LantoMetal stainless steel bar grating (304/304L/316/316L, ASTM & ISO certified) with smooth or serrated surfaces.

Great strength and corrosion resistance for platforms, walkways and drain covers. Suitable for pedestrian & light vehicle loads, sanitary and corrosive industrial & architectural projects. Bulk discounts, project references and technical drawings are available.

          Heavy Duty SS Grating                               Stainless Steel I Bar Grating                                Heavy Duty SS Grating

Manufacturing type

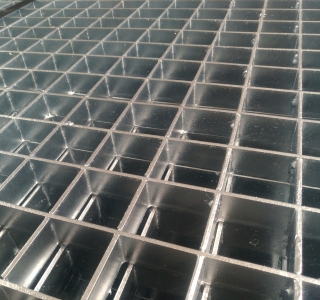

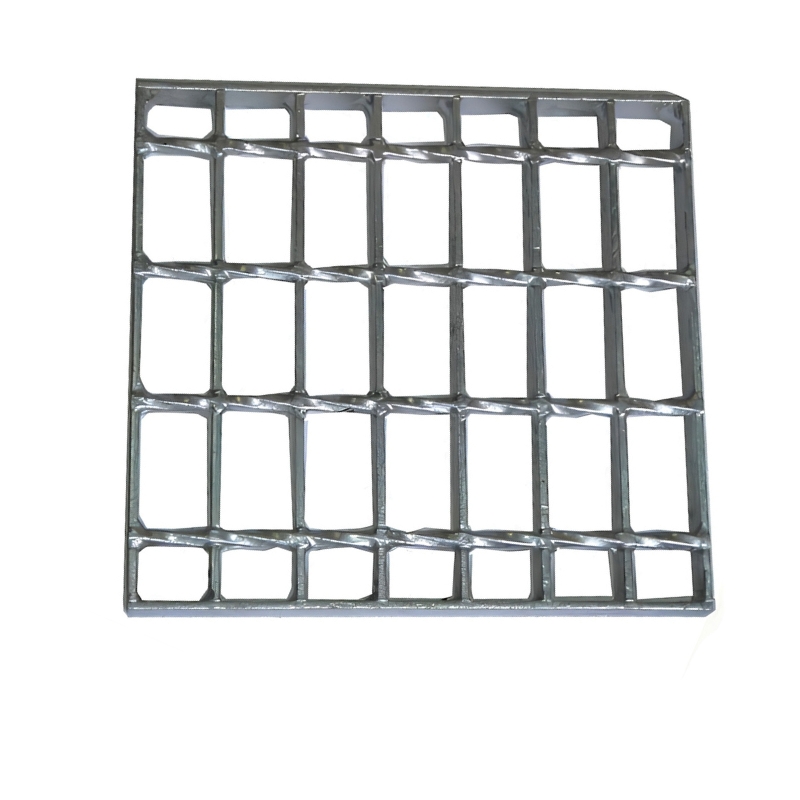

1.Welded Steel Grating

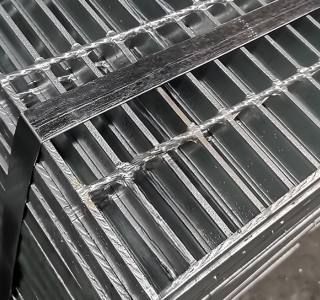

Welded steel grating is one of the most commonly used steel grating, also called metal open bar grating.Anti-slip, high strength, good drainage, corrosion resistant. Widely used for walkway, stair tread, fence, shelf, ceiling and floor.

Trapezoid Serrations Grating              Welded Steel Grating Interrupted Serrations    Welded Steel Grating Sharp Serrations

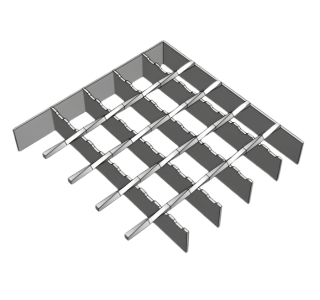

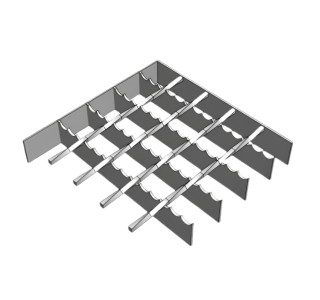

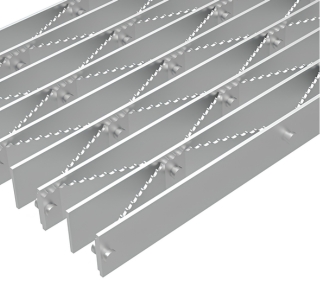

2.Swage-Locked Grating

Swage-locked grating, also called aluminum grating, is made of aluminum plates and cross bars. It is manufactured by inserting cross bars into pre-punched holes in the bearing bar. The cross bars are then swaged forming a positive mechanical connection，this process creates a permanent interlock structure that is strong, stable, and built to last.Multiple bearing bar and surface types available for various applications.

         Flat Bar Swage Locked Grating                     I Bar Swage Locked Grating                    Serrated Swage Locked Grating

3.Rivated Grating

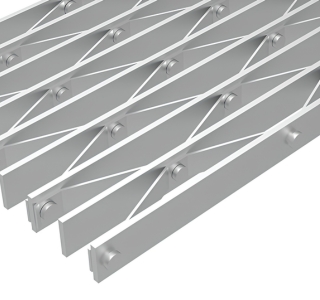

Riveted grating is one of the steel grating products available with excellent impact resistance, durability, and resistance to repeated loads.Made from cold-pressed riveted straight bearing bars and press-fitted rectangular flat bars.As one of the earliest grating structures, riveted grating remains the preferred option for certain demanding applications.

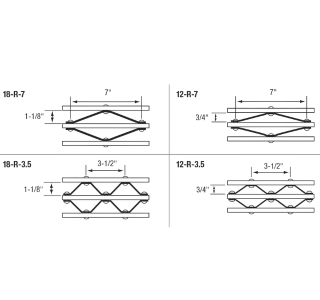

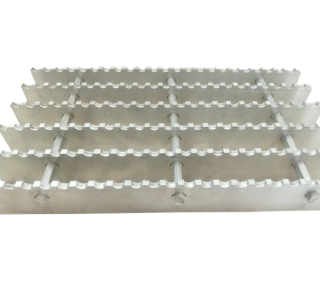

 Riveted Grating with Serrated Surface      Riveted Grating with Smooth Surface                 Riveted Grating Specification

4.Press-locked Steel Grating

Press-locked steel grating, also named pressure locked grating, is fabricated from low carbon steel or stainless steel. Featuring high load capacity, anti-slip property, corrosion resistance and convenient assembly & disassembly, press-locked grating is widely adopted for ceilings, platforms, flooring, fences and various covers in factories, civil and commercial buildings.

         Common Steel Grating                                     Integral Steel Grating                                 Louver Steel Grating

Bearing Bar

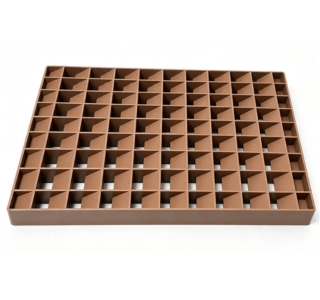

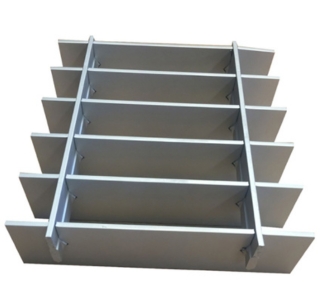

1.Louver Steel Grating

Louver grating is a special type of metal grating constructed with angled horizontal louver cross bars, which are pressed or welded into vertical bearing bars at a preset angle. This unique design delivers visual screening effect while allowing unobstructed airflow, making it an optimal option for projects requiring a balance of privacy, ventilation and aesthetics.

Different from conventional bar grating with cross bars perpendicular to bearing bars, louver grating adopts inclined cross bars. Louver steel grating is a special steel grating designed for excellent ventilation, effective sun shading and modern appearance.

                Welded Louver Grating                          Painted Louver Grating                              Press Locked Louver Grating

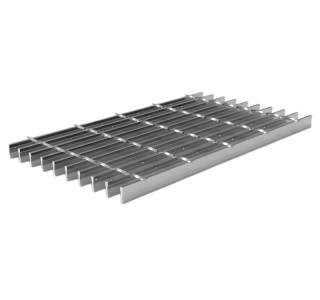

2.I Bar Steel Grating

I Bar Steel Grating is a high-strength and lightweight steel grating that features I-shaped bearing bars. This design optimizes material usage while maintaining excellent load-bearing capacity, making it ideal for industrial and architectural applications. With options for smooth or serrated surfaces, it provides flexibility for various environments where safety, durability, and efficiency are paramount.I shape bearing bars supplies lighter weight when the strength is equal to rectangular bar steel grating.

          Galvanized I Bar Grating                             Serrated I Bar Grating                                         Smooth I Bar Grating

3.Flat Bar Steel Grating

Flat Bar Steel Grating is widely used in numerous industries including construction, manufacturing and infrastructure development.

             Carbon Steel Grating                                       Flat Steel Grating                                          Galvanized Steel Grating

Surface

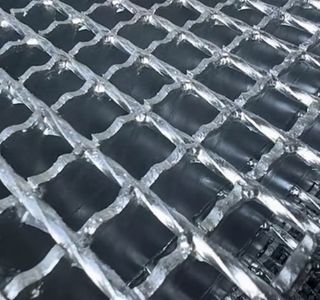

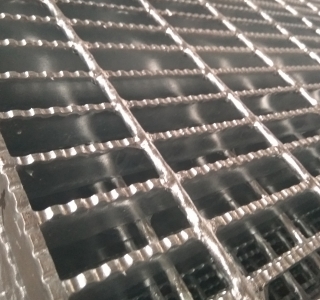

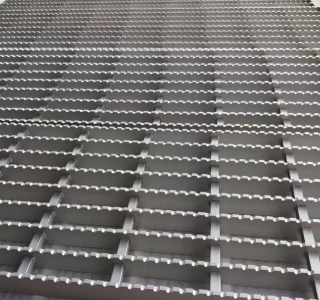

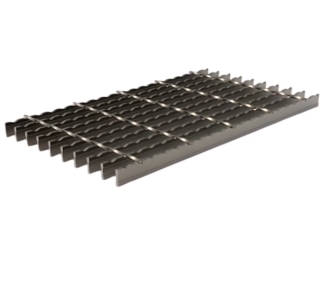

1.Serrated Steel Grating

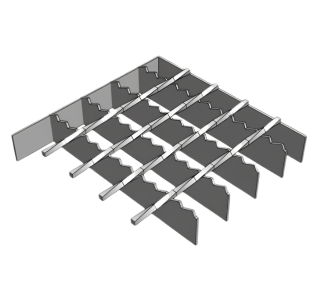

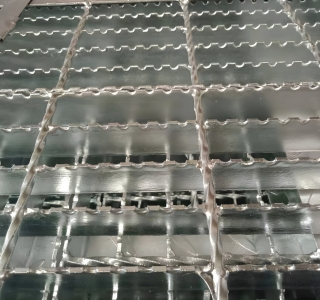

Serrated steel grating is a type of steel bar grating featuring notched or toothed edges on the bearing bars.With the features of high strength, high bearing capacity, non-slip, anti-corrosion, anti-rust, high security, do not accumulate rain, snow and dust, simple and beautiful and easy to install and remove,This grating maintains high strength, durability, and ventilation while addressing safety concerns in slippery conditions.

          Serrated Steel Grating Type 1                     Serrated Steel Grating Type 2                     Serrated Steel Grating Type 3

2.Plain Steel Grating

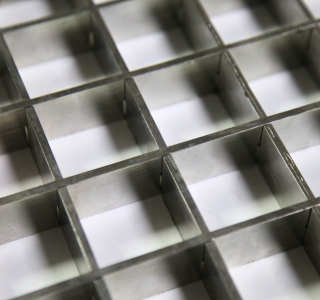

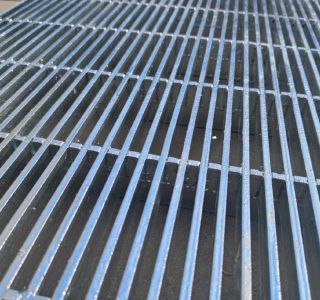

Plain steel grating is a welded metal grid made from flat steel bars and cross rods, with a smooth (non-serrated) surface.

                    Plain Grating                                                Plain Bar Grating                                    Galvanized Plain Steel Grating

Load

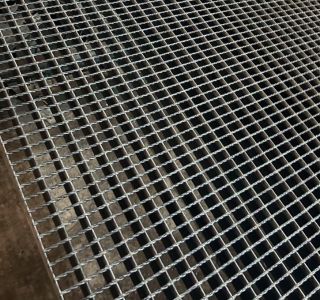

1.Dense Steel Grating

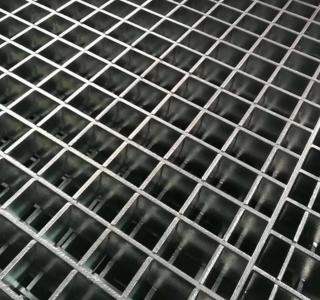

Dense steel grating, also known as close-mesh or heavy-duty steel grating with the spacing of bearing flat steel less than 25 mm where safety, It is ideal for projects where safety, structural strength and minimal openings are critical.

                  Dense Steel Grating                              Dense Steel Grating Floor                                   Serrated Dense Grating

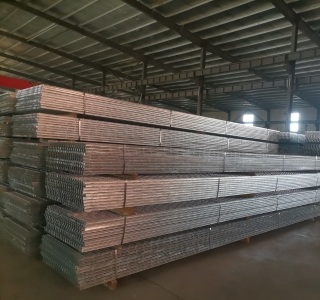

2.Standard Steel Grating

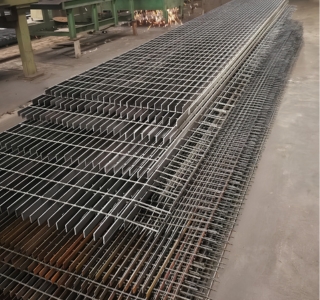

Steel gratings consist of steel bars joined together to form a grid structure.Standard steel grating generally refers to large-size welded steel grating. It is an ideal choice for contractors, distributors and project buyers who need reliable steel grating with stable quality and fast production.

               Carbon Steel                                                           Galvanized                                                            Serrated

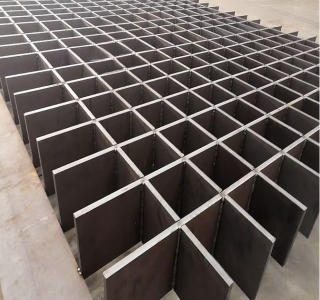

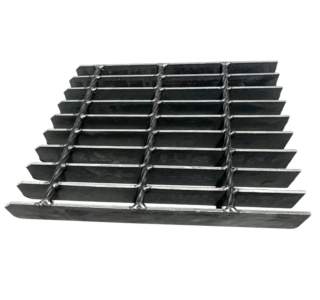

3.Heavy Duty Steel Grating

Heavy-Duty Welded Bar Grating is comprised of rectangular-shaped bearing bars that are thicker and often times higher than traditional Standard-Duty Welded Grating,capable of supporting heavy loads such as forklift and truck traffic. Because these gratings are typically in more severe service, it is highly recommended that all open ends be trim or load banded. The welded band bar helps distribute these loads and minimizes potential panel distortion.

       Carbon Steel Heavy Duty Grating             Galvanized Heavy Duty Bar Grating               Heavy Duty Steel Grating Floor

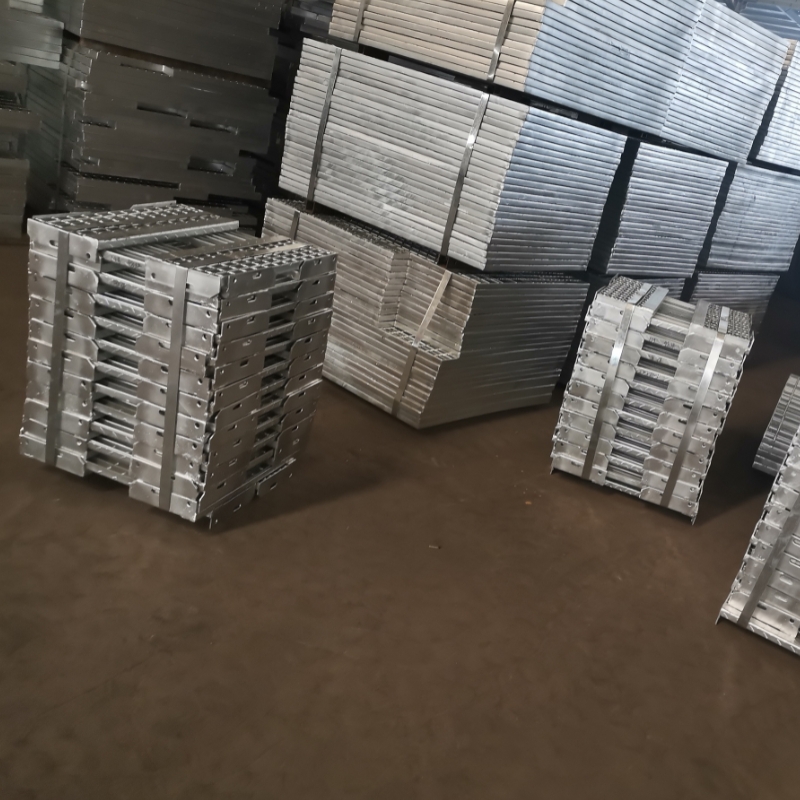

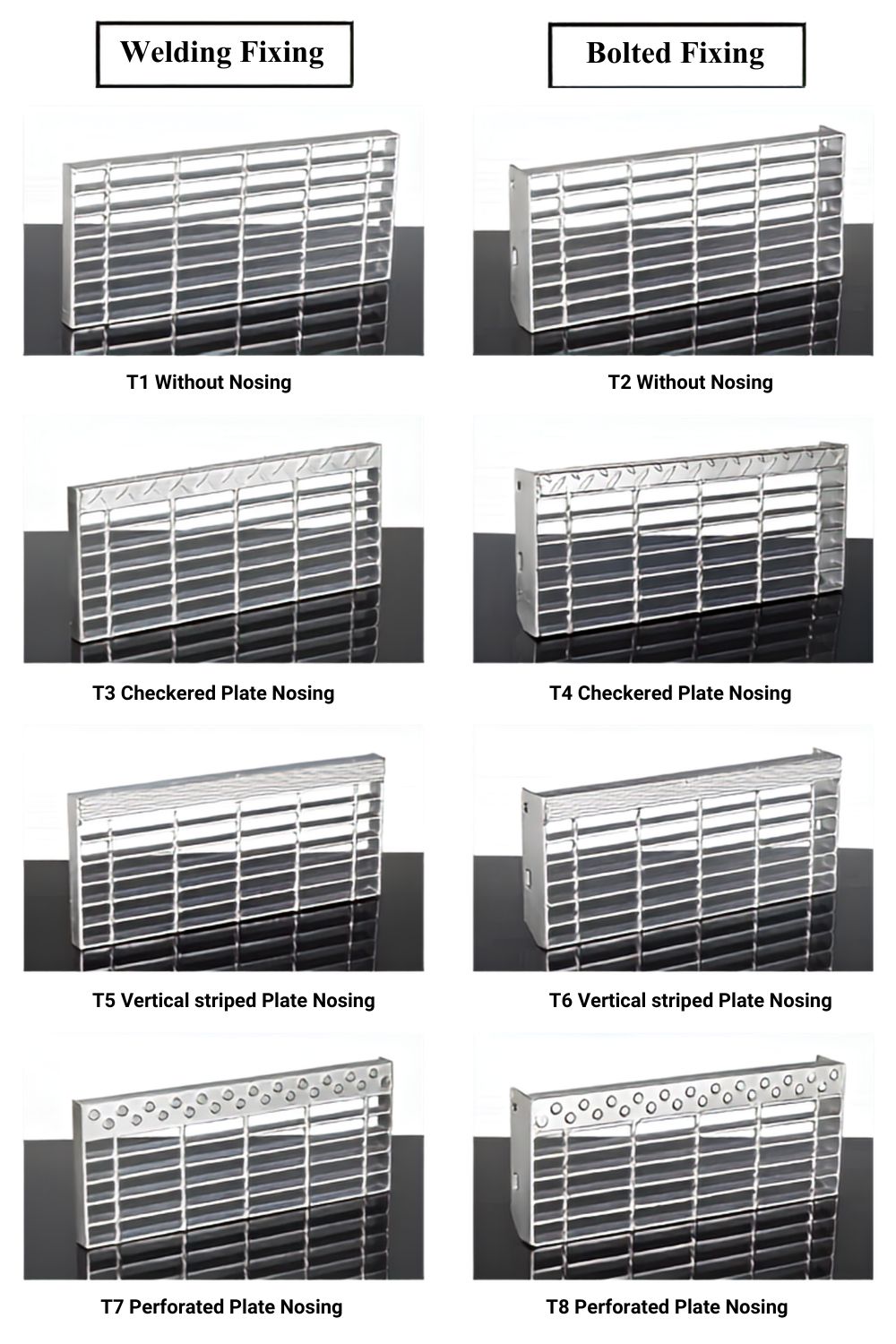

Stair Treads

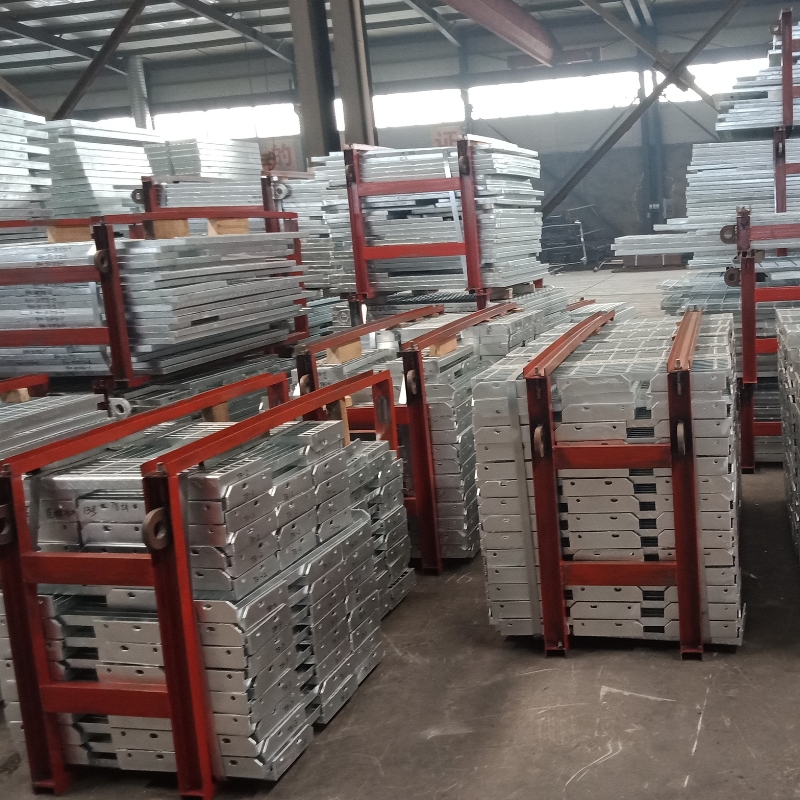

Welded steel stair treads are the most widely used for their strength and ease of installation and are universally used in most industrial and commercial applications. Stair Treads can be ordered with a serrated surface for additional safety

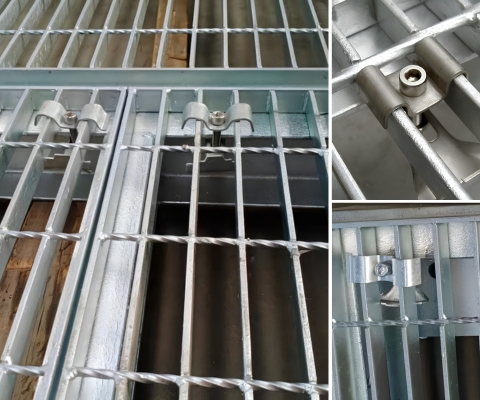

Steel Grating Accessories

Steel grating accessories are used to install and fix steel grating. They are very necessary. Steel grating accessories have wear resistance, high strength and resistance to stress, rust-proof performance.

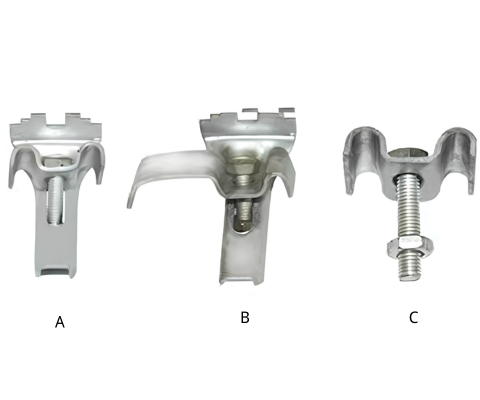

                     Steel Grating Clamps                                                                                    Grating Clips Installation

Others Grating

◆ Plug Grating

Plug Grating, also known as press-locked grating, is a reliable flooring and safety solution for industrial and architectural projects.Suitable for platforms, facades, ceilings and decoration in public and commercial buildings.

                 Plug Grating                                          Galvanized Plug Grating                                            Serrated Plug Grating

◆ Irregular Steel Grating

Irregular / special shaped steel grating with customized irregular shapes. High load capacity, anti-slip and anti-corrosion. Used for well covers, industrial platforms and fountain flooring.

           Custom Steel Grating                                   Different Shape Grating                                  Irregular Shape Steel Grating

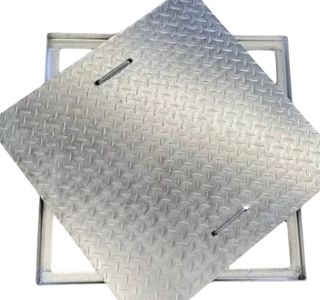

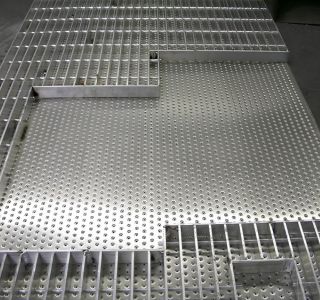

◆ Compound Steel Grating

Compound steel grating, also called composite steel grating, adopts a hybrid structure. It takes bar grating as the base, covered with top layers such as checkered plate, perforated sheet or FRP panel. It serves as durable closed flooring for industrial and commercial applications.

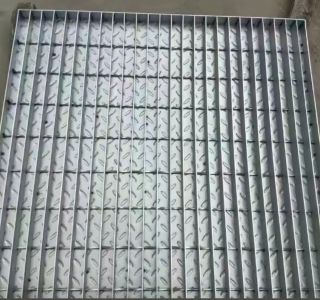

Checkered Plate of Compound Steel Grating    Square Compound Grating with Handle      Galvanized Compound Grating

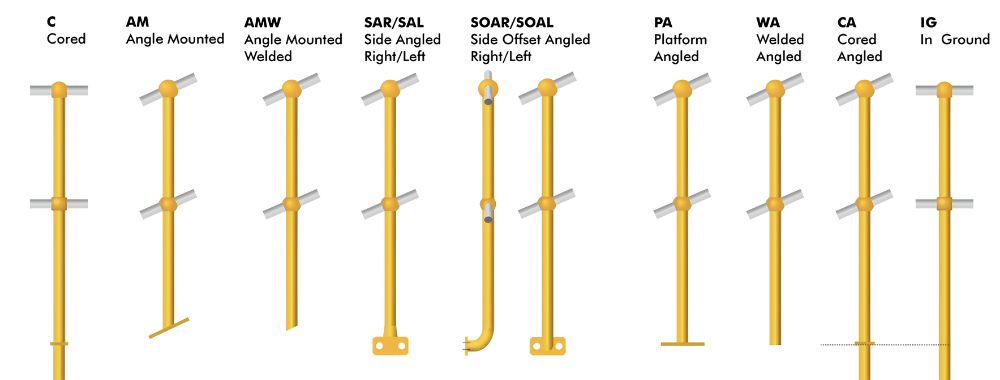

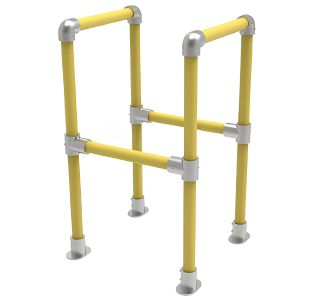

◆ Grating Stanchions Railing Ball Joint Handrails

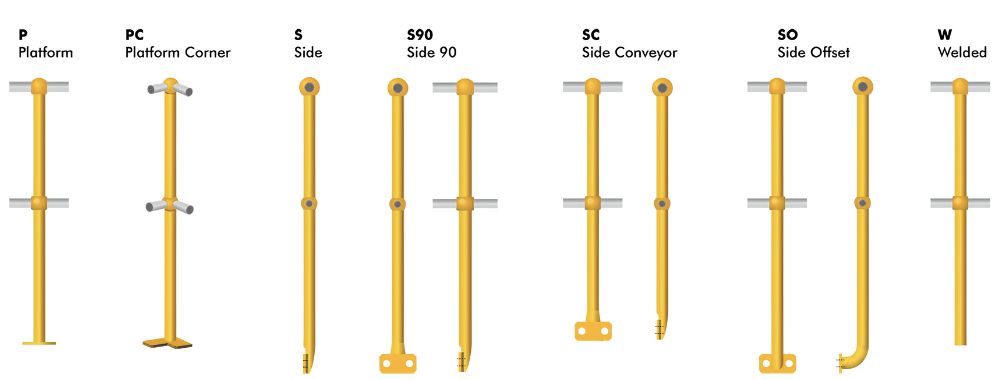

A ball-Joint handrail stanchion is a steel column used for fences, railings, handrails, and other places. It mainly adopts ball-shaped contact, made of ordinary steel or stainless steel, with a surface treated by hot-dip galvanizing or electrostatic spraying. These handrails are designed for durability, ease of installation, and resistance to harsh mining conditions.

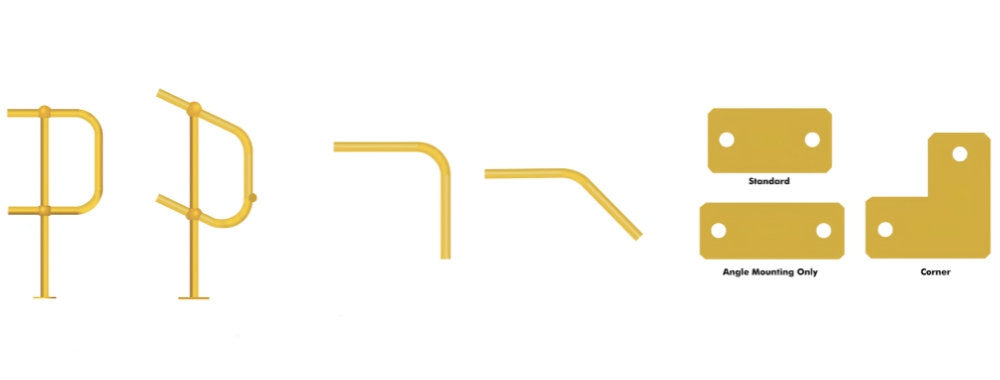

Standard Stanchions

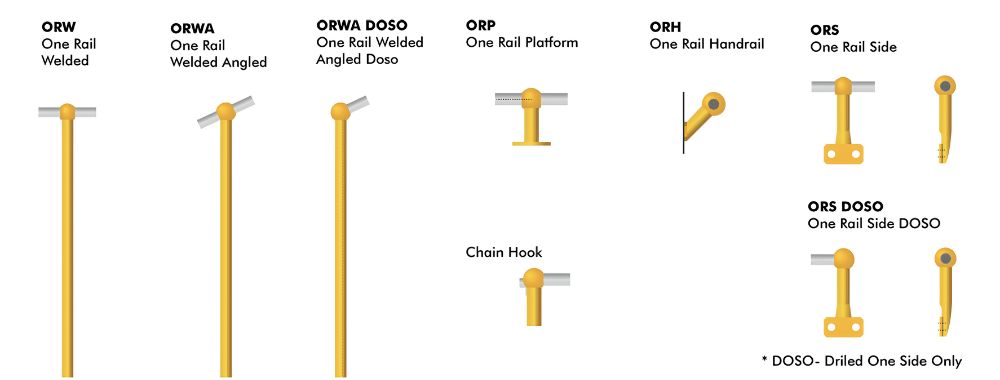

One-Rail Stanchions

Bends & Base Plate

Kick Plates&Balustrades & Gate

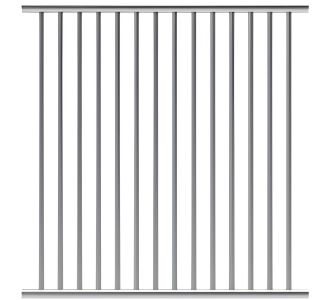

◆ Modular Guardrail for Safety Gates

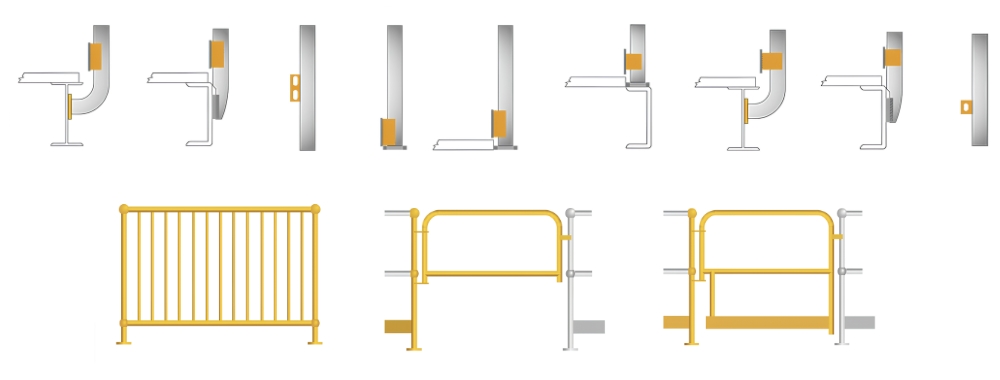

Modular handrail kits paired with self-closing safety gates form a complete safety system for stairs, walkways and ramps. They prevent unauthorized access and lower risks of industrial accidents.

                 Standard Type                                                          Corner Type                                                      Grid Type

                Side Fixed Type                                                     Slope Type                                                         Barrier Type

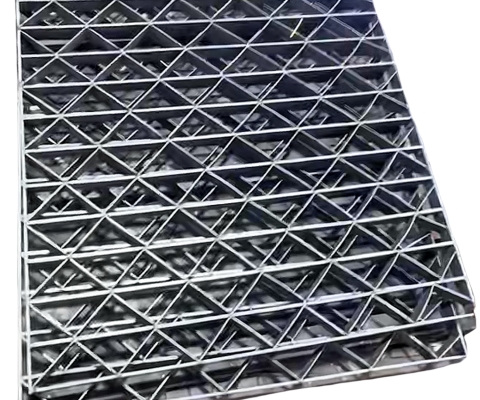

◆ Diamond Pattern Steel Grating

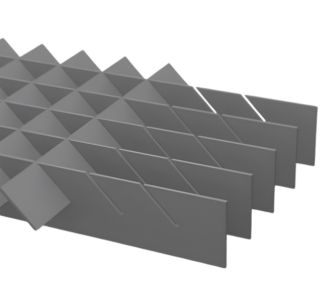

Diamond pattern steel grating, also known as triangular pattern steel grating, is fabricated steel grating featuring diamond or triangular openings.Good anti-slip effect for wet, oily and dusty areas. Efficient drainage and ventilation.

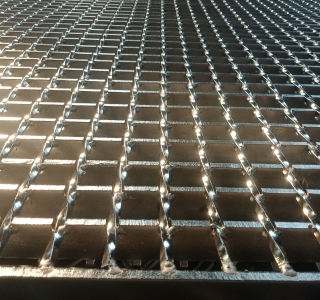

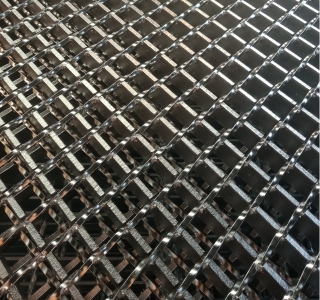

                  Diamond Pattern Steel Grating                                                        Diamond Pattern Steel Grating for Walkway
