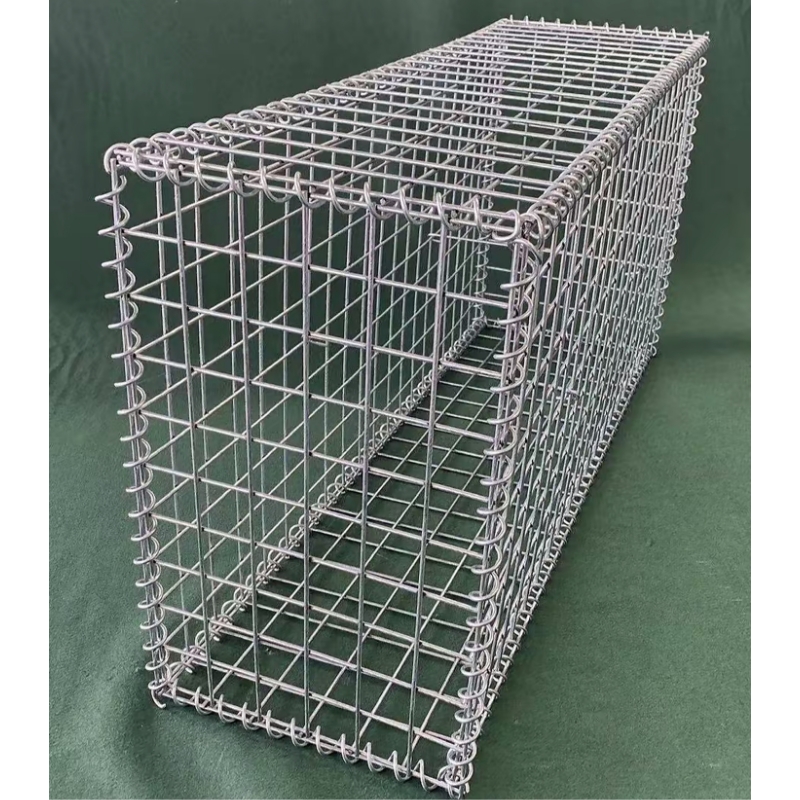

Welded Gabion Basket
Welded gabion basket is commonly made from galfan or galvanized steel wire，which are welded into a panel. Afterwards, various mounting connections including hog rings connection, spiral joints connection, U-clips connection and hook connections can be applied for fast assembly.

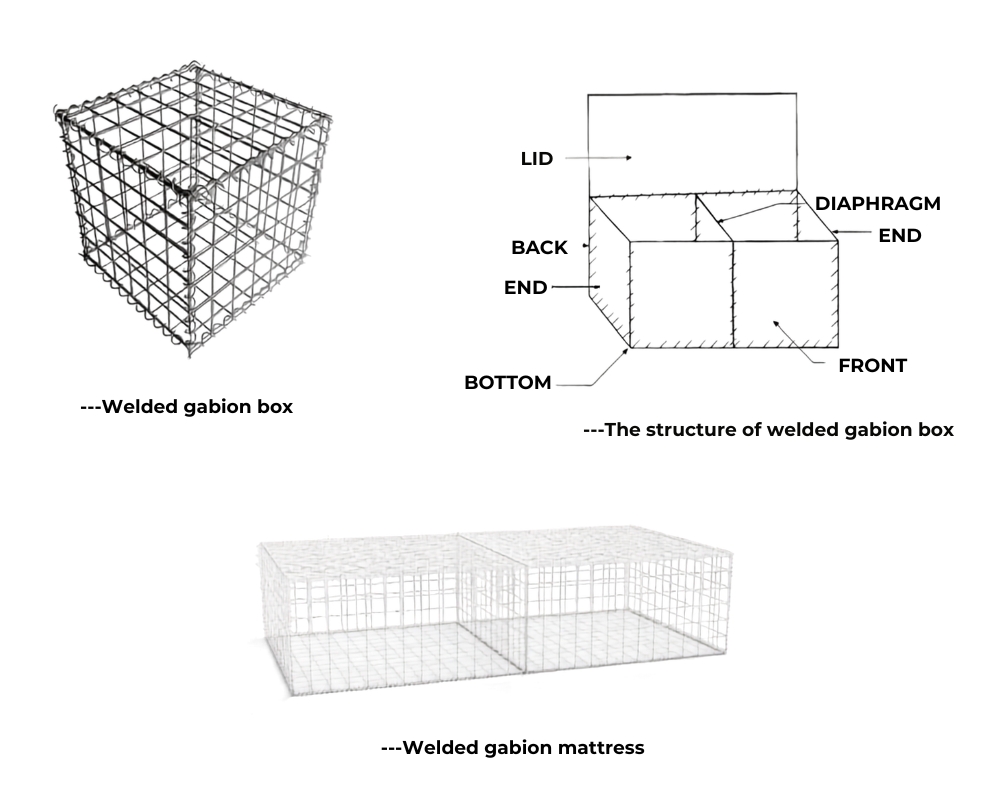

welded mesh gabion, a rigid, box shaped structure is made of steel wires that are welded at all corners where longitudinal (horizontal) and transverse (vertical) wires intersect.This is a uniform grid welding process that produces stable openings of high precision. The weld panels are put together into containers and packed with stones or other objects to be used as structure or decorations，making them ideal for architectural and landscaping uses.
Compared with woven hexagonal gabions, welded gabion boxes feature higher shape rigidity.Welded gabion boxes with internal geotextile lining are ideal for rapid deployment and easy construction of durable defensive barriers for military and security applications.
Specifications
NORMAL BOX SIZE | NO. OF DIAPHRAGMS (PCS) | GAL. / GALFAN WIRE | MESH SIZE | NOTE |
1.0×1.0×0.5M | NONE | 3.0/4.0/5.0MM | 50×50MM 50×100MM 76×76MM 100×100MM
| POWDER COATED OR PVC COATED AS OPTION
|
1.0×1.0×1.0M | NONE | 3.0/4.0/5.0MM | ||
1.5×1.0×0.5M | NONE | 3.0/4.0/5.0MM | ||
1.5×1.0×1.0M | NONE | 3.0/4.0/5.0MM | ||
2.0×1.0×0.5M | 1 | 3.0/4.0/5.0MM | ||
2.0×1.0×1.0M | 1 | 3.0/4.0/5.0MM | ||
3.0×1.0×0.5M | 2 | 3.0/4.0/5.0MM | ||
3.0×1.0×1.0M | 2 | 3.0/4.0/5.0MM | ||
4.0×1.0×0.5M | 3 | 3.0/4.0/5.0MM | ||
4.0×1.0×1.0M | 3 | 3.0/4.0/5.0MM |
Surface Treatment Comparison
TYPE | PROCESS | ZINC CONTENT | LIFE TIME | FEATURE |
HOT DIPPED GALVANIZED WIRE | GALVANIZED BEFORE WELDING | — | — | CHEAPER, SMOOTH AND SHINY WIRE |
GALFAN WIRE | — | ＞200G | ＞8-10 YEARS | ECONOMICAL |
HEAVY GALVANIZED | GALVANIZED AFTER WELDING | ＞300G | ＞10-20 YEARS | TOP QUALITY, LONGEST LIFE TIME |
How to connect the Welded Gabions?

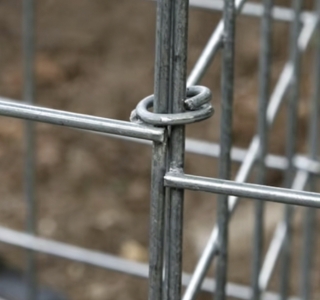

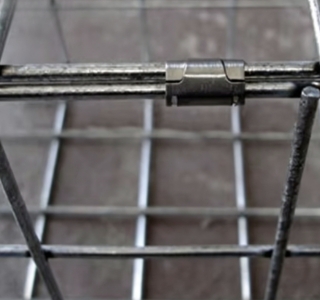

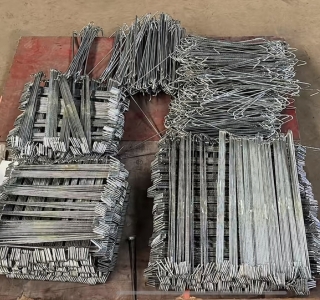

"C" Clips Connection "U" Clips Connection Hooks

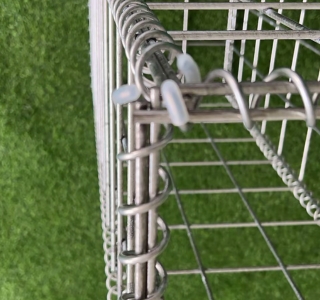

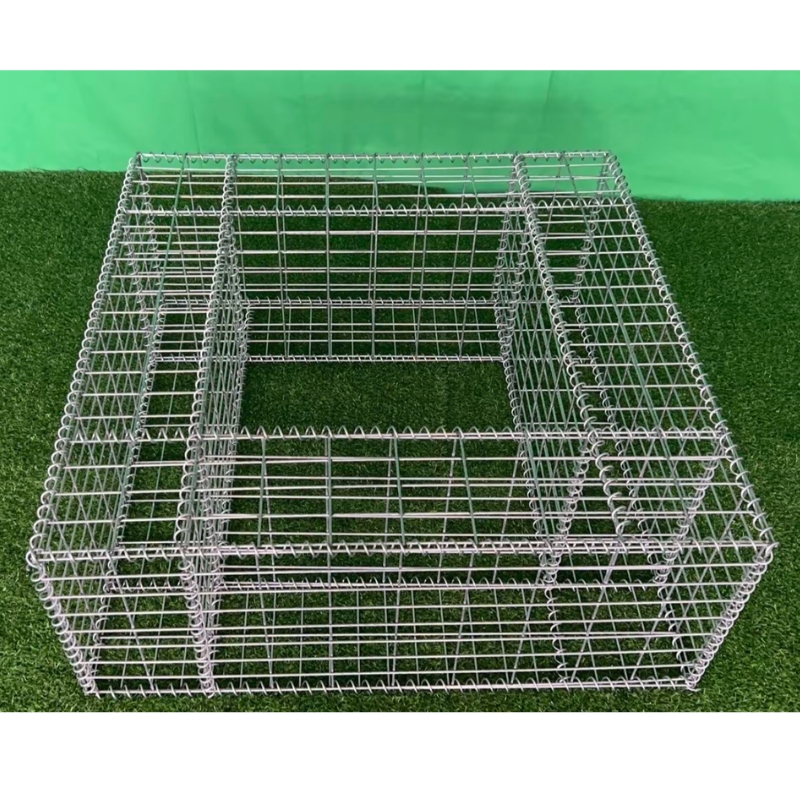

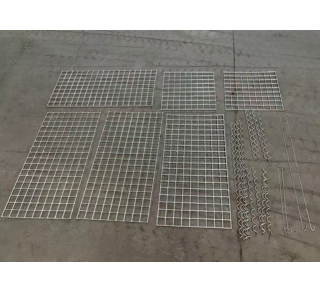

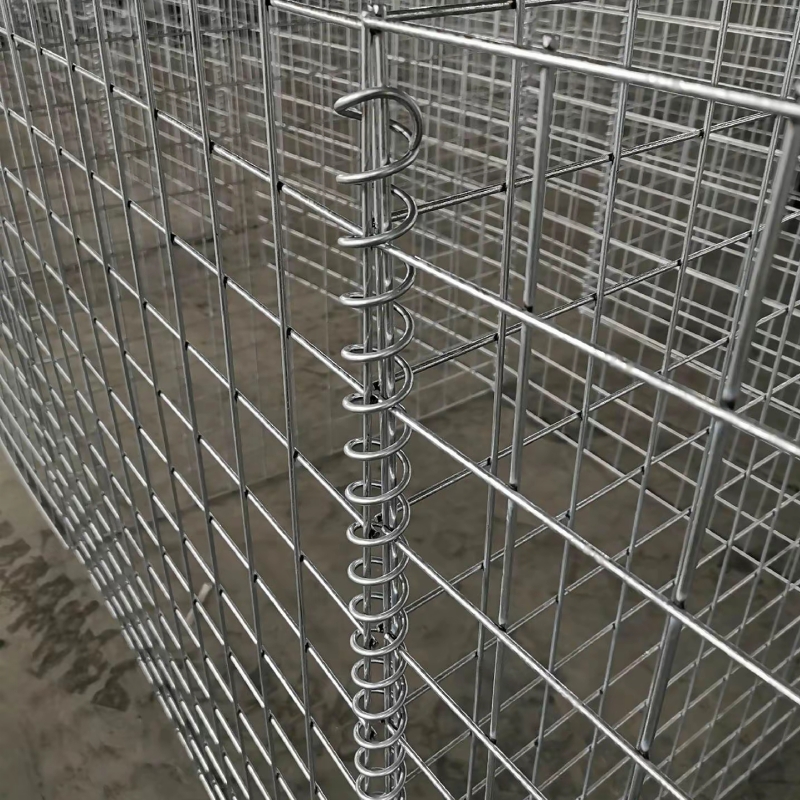

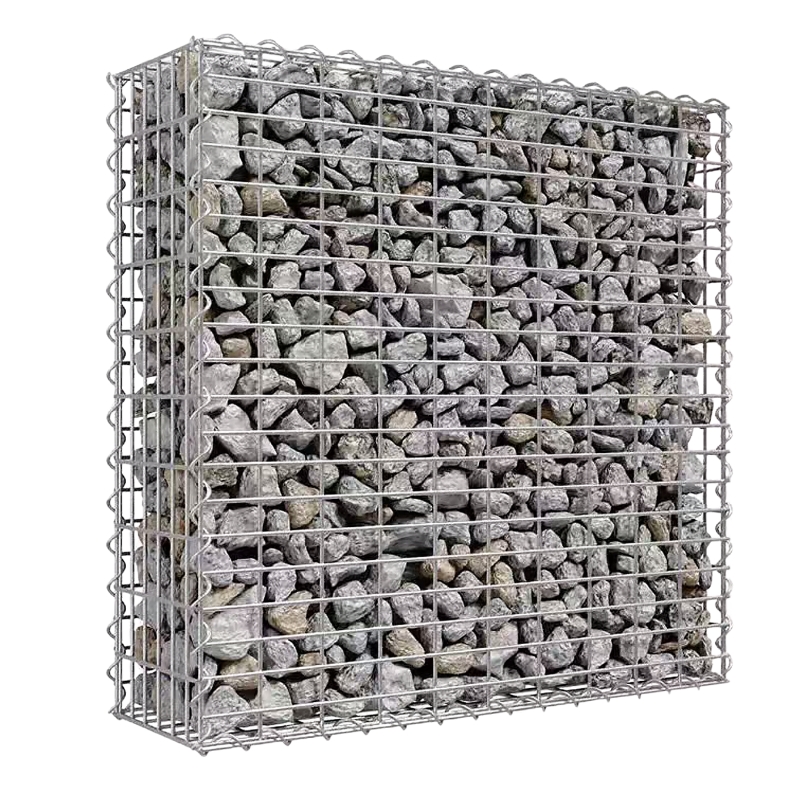

Spiral Wire Gabion Basket Assembly Process Finished Welded Gabion Basket
Feature
● High security.
● Can be made into various shapes for decoration.
● Rigid structure and high strength.
● Galvanized or galfan steel wires.
● Accord with ASTM A974, ASTM A641, ASTM A90, ASTM A185
● Ideal for both construction engineering and architectural decorations.
● Durable Structure---it is not easy to deform or crack.
● Corrosion resistance and rust resistance---Zinc or Zn-Al (Galfan) coatings provide superior protection against corrosion, even in aggressive and harsh environments..
● Easy Assembly---Simple connectors and modular panels enable fast on-site assembly, reducing installation time and labour costs.
● Aesthetic Appeal---Clean, modern geometry combined with natural stone infill creates visually appealing structures that blend with any landscape.
Service
● Special discount for large orders.
● Project reference can be supplied for your bid.
● ISO Certificated factory.
● SGS Test Report can be provided.
● CAD or 3D drawing can be supplied for your design and construction.

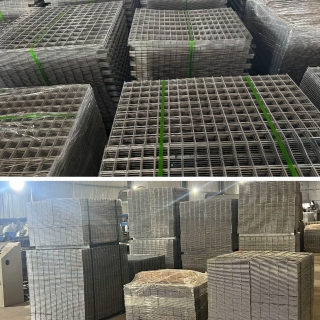

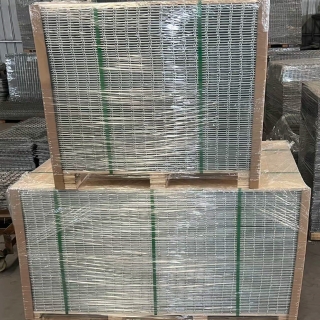

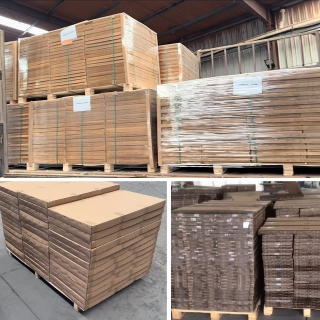

Package & Delivery
Welded Gabion Baskets are packed securely to ensure safe transportation and easy unloading. Available packing options include bulk packing, wooden pallet packing, and carton box packing according to customer requirements.

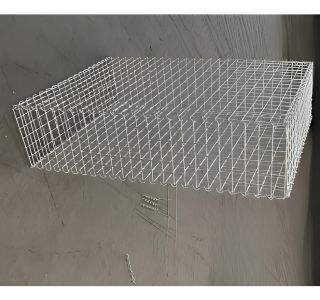

Bulk Packing Pallet Packing Carton Packing
Applications
● Gabion retaining wall. ● Culvert headwall. ● Bridge abutments. ● Flood control.
● Gabion fireplace. ● Bridge wing wall. ● Gabion mattresses. ● Gabion Noise Barrier.
● Channel lining. ● Soil erosion control. ● Bank protection. ●Garden and landscape.
● Drop prevention structure. ● Gabion cladding. ● Oyester Reef Restoration. ● Weirs.

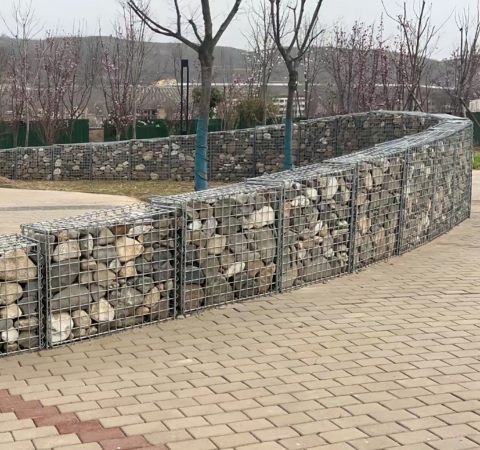

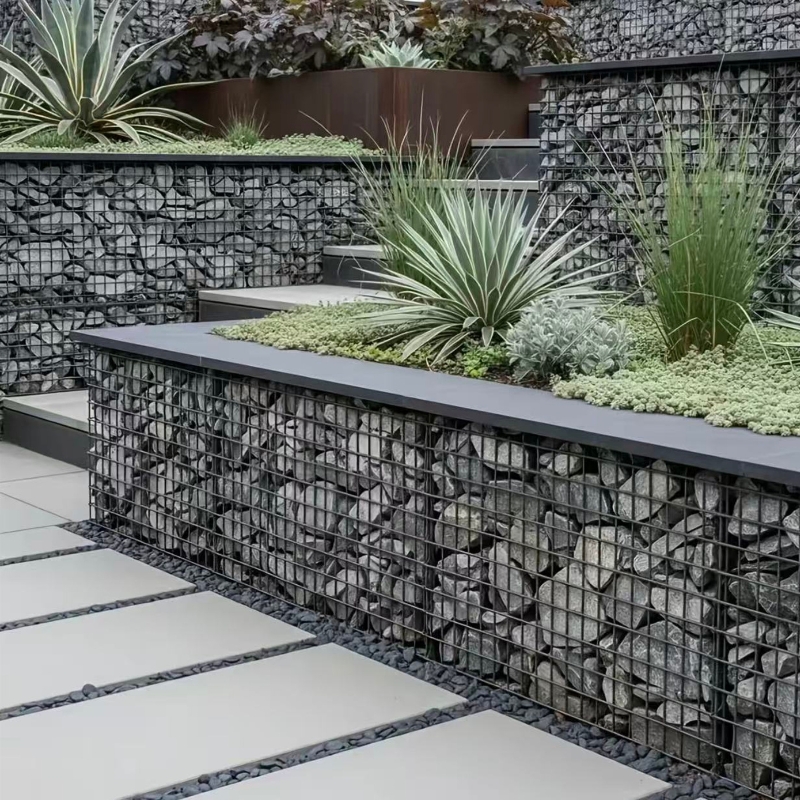

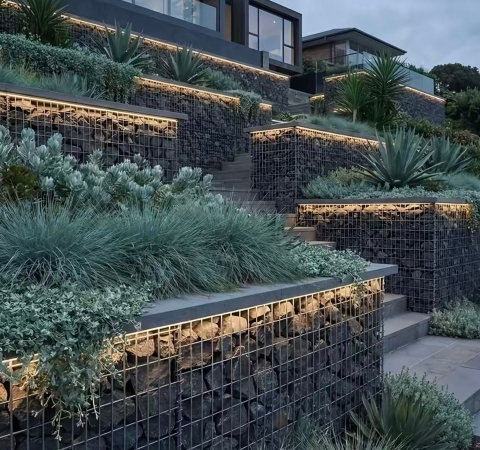

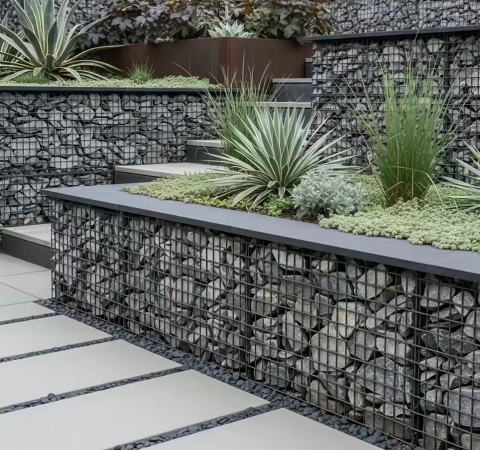

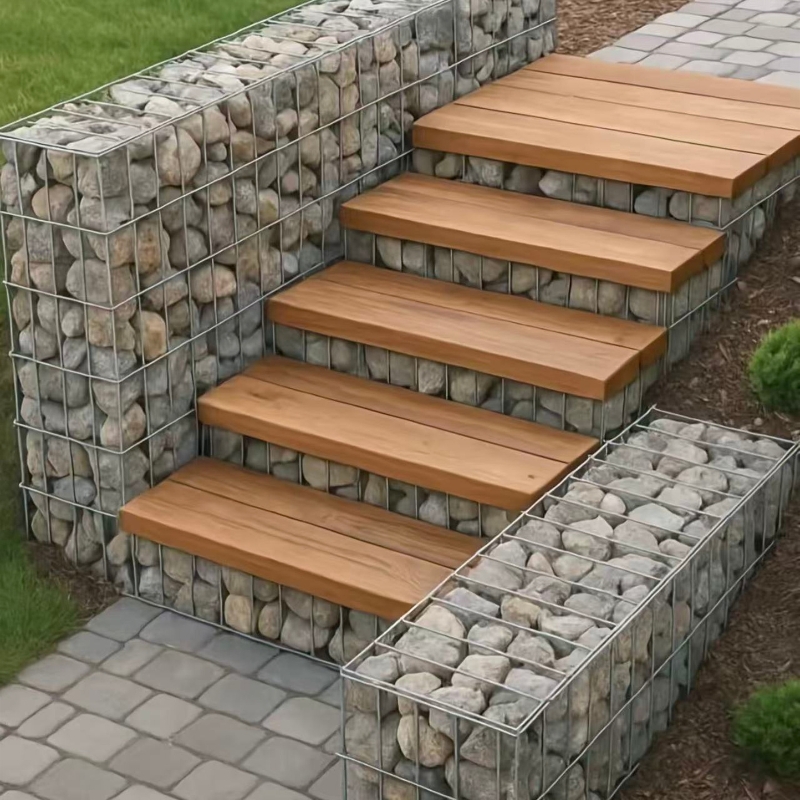

Gabion Wall Fences Decorative Garden Gabion

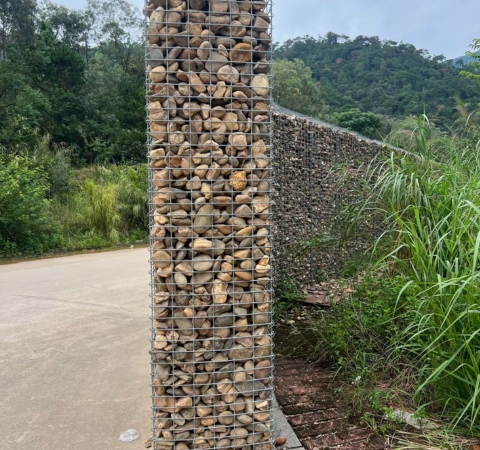

Gabion Walls & Cages Gabion Wall Construction
