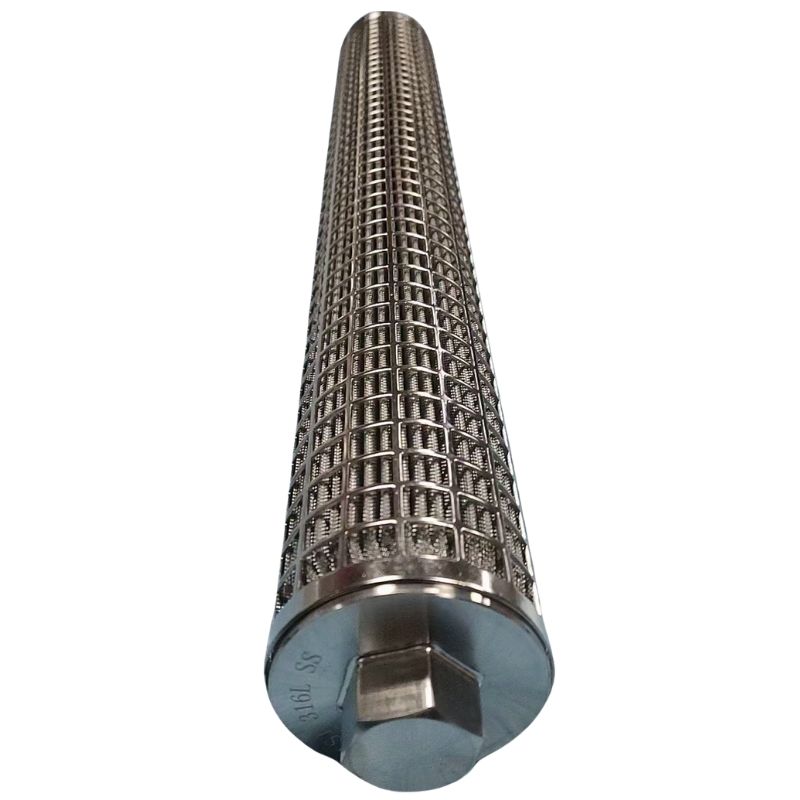

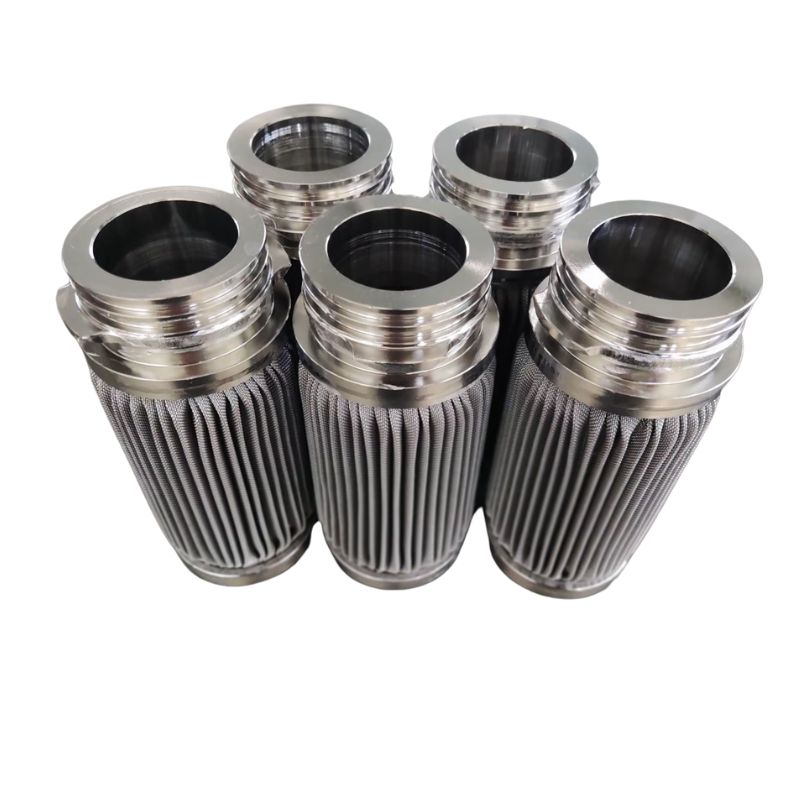

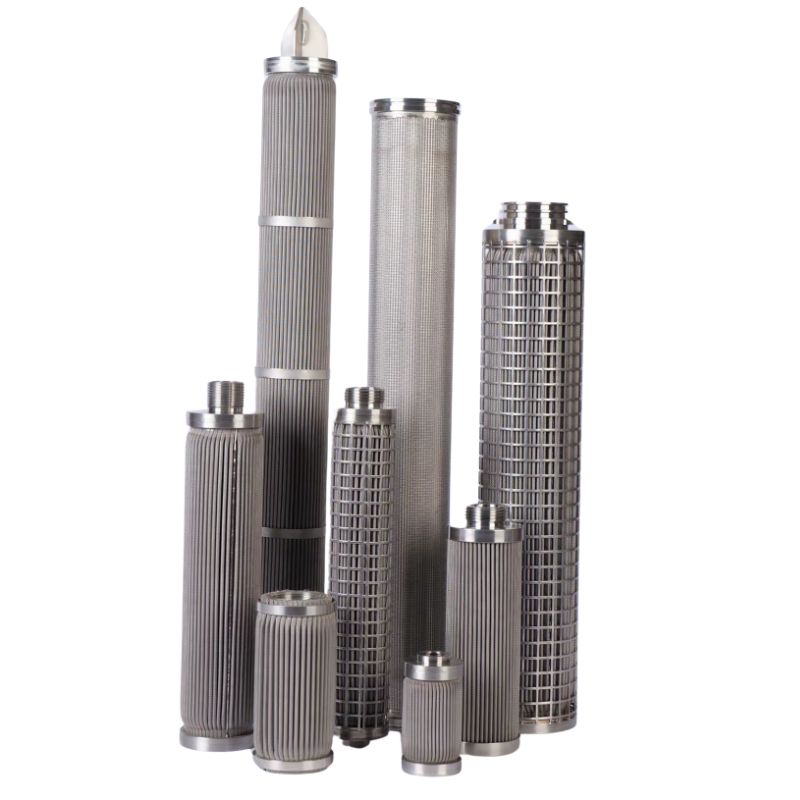

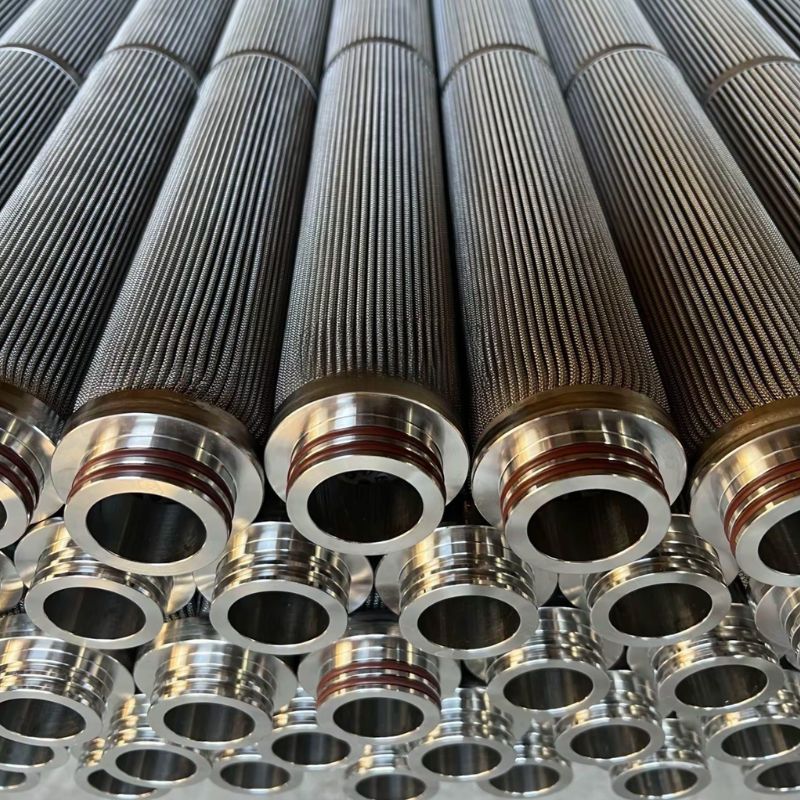

Pleated Filter Element

The stainless steel pleated filter element, also known as a stainless steel pleated filter cartridge, adopts an advanced multi-pleat folding process to increase filtration area and improve filtration efficiency.

The main filter media are stainless steel fiber sintered felt or stainless steel woven mesh, with components assembled by argon arc welding to ensure a strong and reliable structure.

Stainless steel sintered fiber felt is manufactured from stainless steel fibers.

Stainless steel woven wire cloth is woven from stainless steel wires in various weaving patterns.

It offers uniform filtration performance, precise micron ratings, excellent high-temperature resistance, superior corrosion resistance, easy cleaning, and long service life with repeated use. The rigid pleated structure provides high mechanical strength and stable filtration performance under demanding operating conditions.

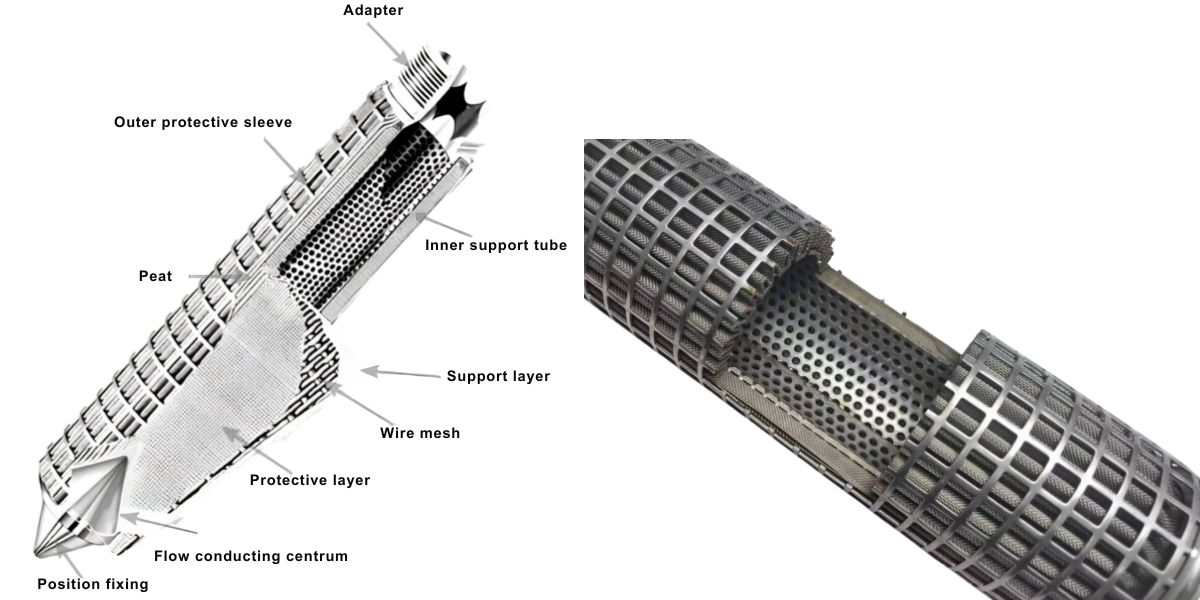

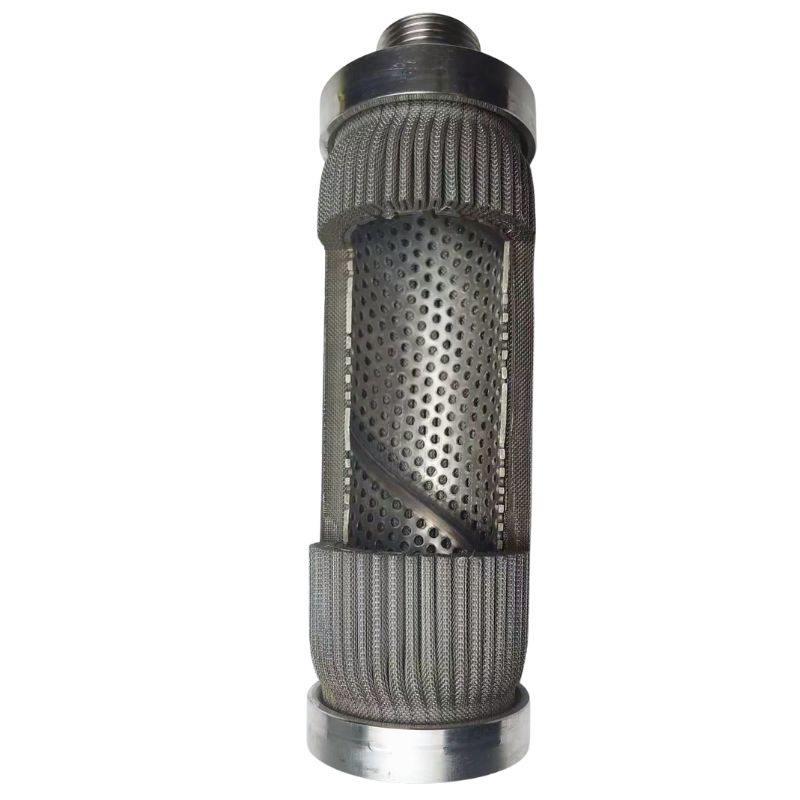

Pleated Filter Element Structure

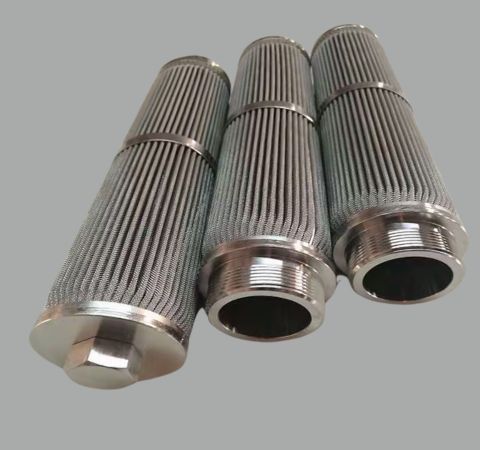

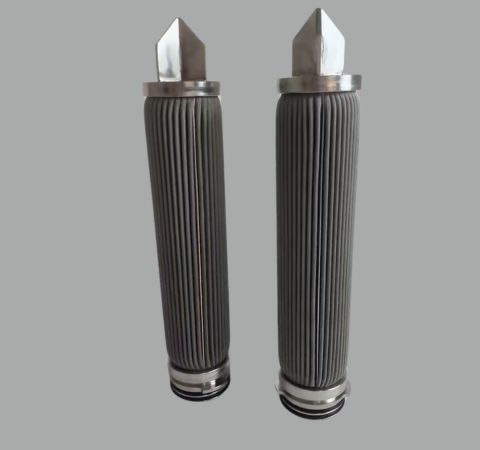

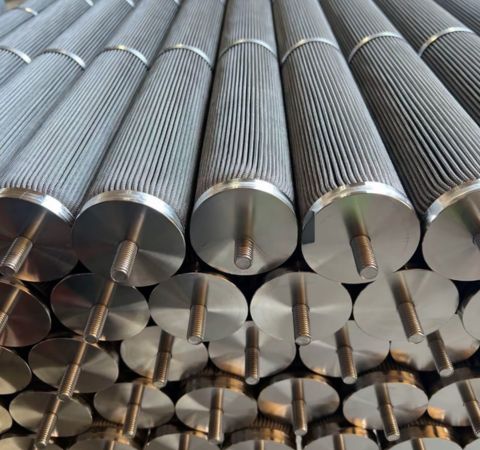

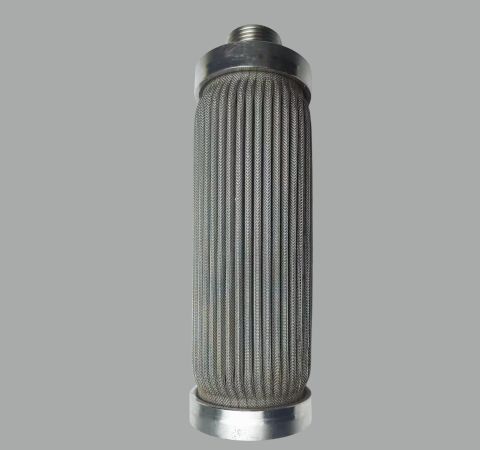

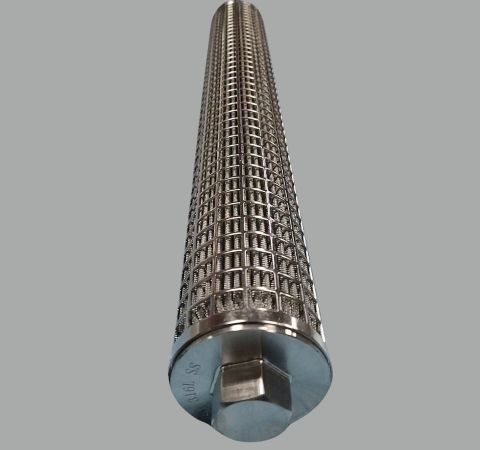

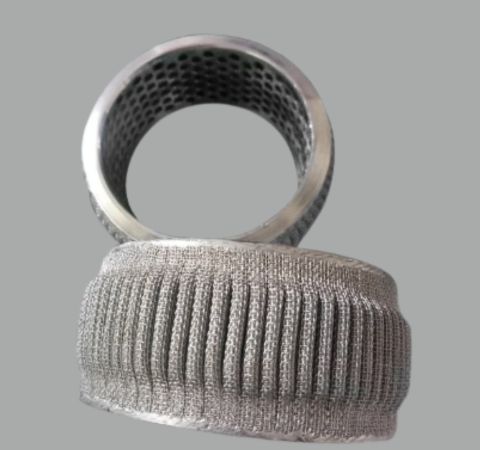

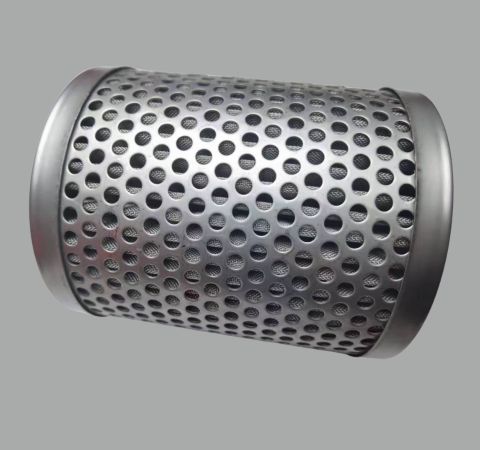

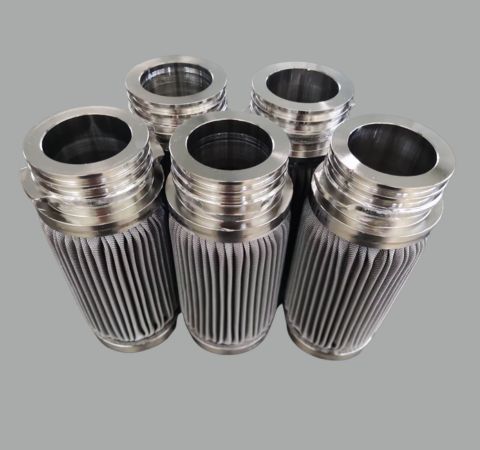

Pleated Filter Element

Specifications

Material: SS304, SS316, SS316L.

Filter precision: 1 - 300μm.

Filter efficiency: ≥95%.

Working pressure: 30Mpa.

Working temperature: ≤600°C.

Main filter media: stainless steel sintered fiber web and stainless steel wire woven cloth.

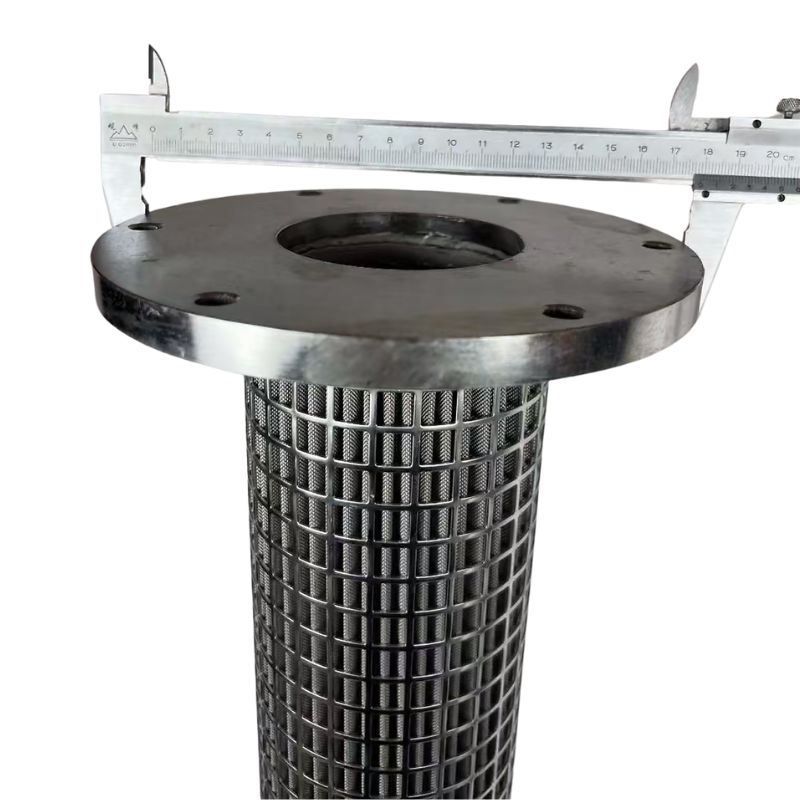

Installing form: standard (using o-ring to seal), thread, tie rod, flange, fast interface.

MODEL	ABSOLUTE RATING (μm)	BUBBLE POINT PRESSURE (Pa)	AVERAGE AIR PERMEABILITY (L/dm²/min)	THICKNESS	WEIGHT (g/m²)	POROSITY (%)	DIRT HOLDING CAPACITY (mg/cm²)
SF-3	3	12300	9	0.35mm	975	65	6.40
SF-5	5	7600	34	0.34mm	600	78	5.47
SF-7	7	5045	57	0.27mm	600	72	6.47
SF-10	10	3700	100	0.32mm	600	77	7.56
SF-15	15	2470	175	0.37mm	600	80	7.92
SF-20	20	1850	255	0.49mm	750	81	12.44
SF-25	25	1480	320	0.61mm	1050	79	19.38
SF-30	30	1235	455	0.63mm	1050	79	23.07
SF-40	40	925	580	0.66mm	1200	77	25.96
SF-60	60	630	1000	0.70mm	750	87	33.97

Remarks:
1. Bubble point press test in accordance to ISO 4003.
2. Average air permeability in accordance to ISO 4022, the air pressure 200P.
3. Dirt holding capacity in accordance to ISO 4572. Final pressure drop is 8 times of initial pressure drop.

Applications

Stainless steel pleated filter elements are designed for efficient and long‑lasting filtration performance. They find broad applications across petroleum, chemical processing, pharmaceutical, metallurgy, food processing, high‑temperature gas filtration, electronics and machinery industries.

Polymer Filtration

Suitable for PE, LDPE, PET, PP, PA, PBT, PC, PEEK, BOPET, BOPP, PMMA, EVA, carbon‑fiber, fiber, resin, film, sheet and related materials.

Liquid‑Solid Filtration

Food & beverages, pharmaceutics, general chemicals, hydraulic systems, lube oil, fuel oil, inkjet printers, petrochemical processes, etc.

Gas‑Solid Filtration

Oil refineries, chemical processing (ammonia gases, polysilicon, EDC, olefin gases), metal smelting (Ni, Pt, Cu, Al), coal gasification, cement & steel manufacturing, nuclear‑grade filtration and other sectors.

Typical working scenarios cover industrial, chemical and medical filtration as below:

◆ Hydraulic oil and fuel filtration

◆ Hot gas filtration

◆ Hot lube filtration

◆ Clarity filtration

◆ Gas‑liquid separation

◆ General oil filtration

◆ Aerosol service

◆ Cross‑flow filtration

◆ Polymer melt filtration

◆ High‑temperature process conditions

◆ Process steam filtration
